Output

Output power capacity

1.0kWatts / 1.5kVA

Max Configurable Power (Watts)

1.0kWatts / 1.5kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

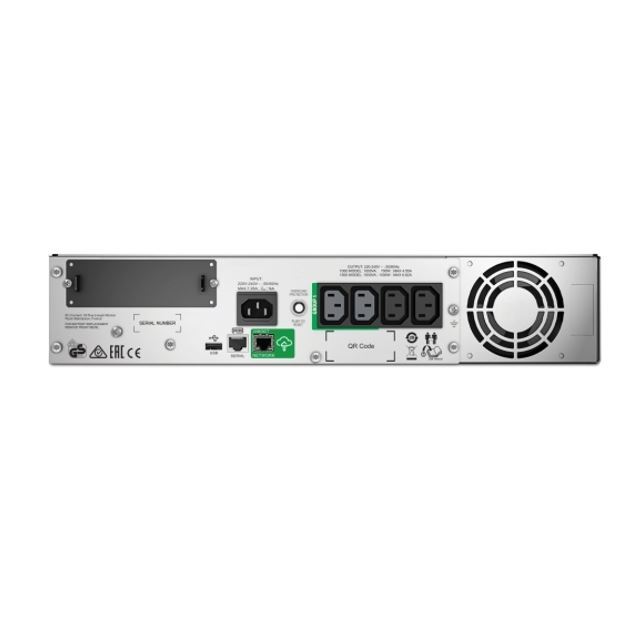

Output Connections

(2) IEC Jumpers (Battery Backup)

(4) IEC 320 C13 (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

APCRBC133

Expected Battery Life (years)

4 - 6

RBC Quantity

1

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

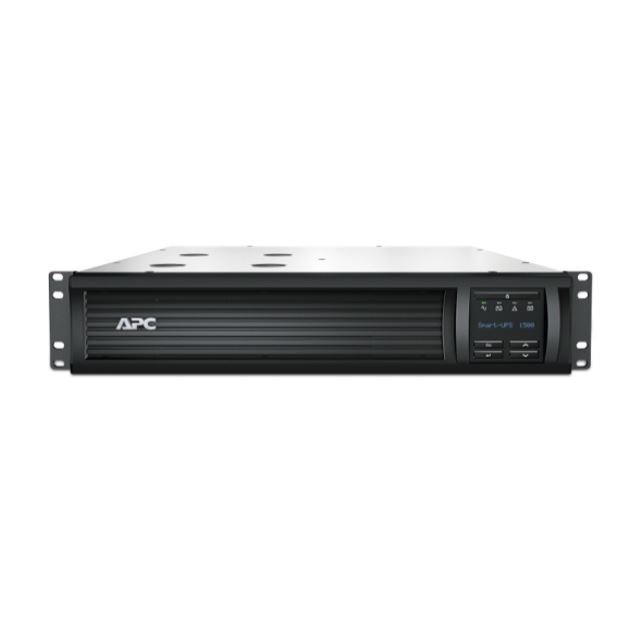

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Available SmartSlot„ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

432MM, 43.2CM

Maximum Depth

477MM, 47.7CM

Rack Height

2U

Net Weight

28.64KG

Shipping weight

31.91KG

Shipping Height

251MM, 25.1CM

Shipping Width

594MM, 59.4CM

Shipping Depth

603MM, 60.3CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Stor
