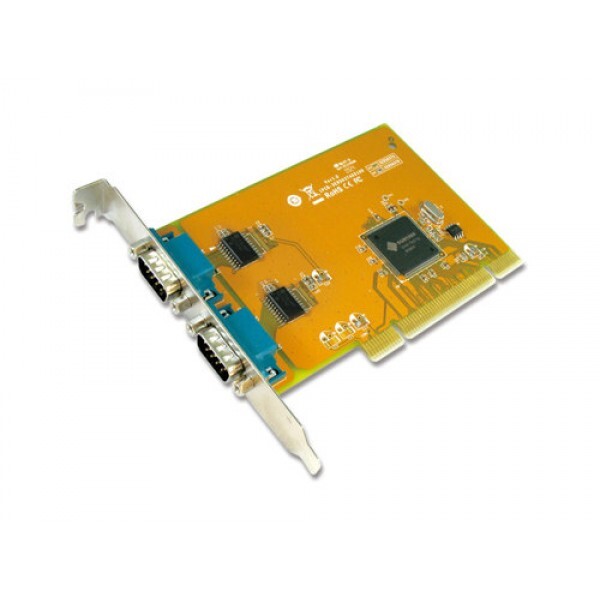

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS


Description

Product Description 2-port RS-232 Universal PCI Serial Board

Serial Communication

Interface RS-232

Controller SUNIX SUN1989 (16C950 UART Compatible)

Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1

No. of Port 2-port

IRQ & IO Assigned by System

FIFO 128 byte (Hardware)

Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI

Baud rate 50 bps to 115.2 Kbps

Data bit 5,6,7,8

Stop bit 1,1.5,2

Parity None, Even, Odd, Space, Mark

Flow Control None, Xon/Xoff, RTS/CTS

Protection ±2KV ESD protection for each signal Human Body Model (HBM)

PCB connector DB9 Male

Driver Support

Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server 2003 / 2008 / 2012 / 2016 (X64)

Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

Linux Linux 2.x / 3.x / 4.x

DOS DOS

FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4

QNX QNX 6.3.2/6.4.0

* IBM OS/2 WARP 3/WARP 4

* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0

* Sun Microsystems Solaris 10

Note : œ * ' Supported by special inquiry.

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software Microsoft WHQL Windows

Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)

Operation Humidity 5 to 95% RH

Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 82 mm

Bracket Standard 121 mm

Bracket Space 1

Specifications
SKU IDSUN-COMCARD-2P
Barcode # 4710747387963
Brand Sunix
Shipping weight 0.7800kg
Shipping width 0.276m
Shipping height 0.142m
Shipping length 0.302m
Assembled length 2.020m
Assembled height 0.420m
Assembled width 1.760m
