Output

Output power capacity

1.0kWatts / 1.5kVA

Max Configurable Power (Watts)

1.0kWatts / 1.5kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

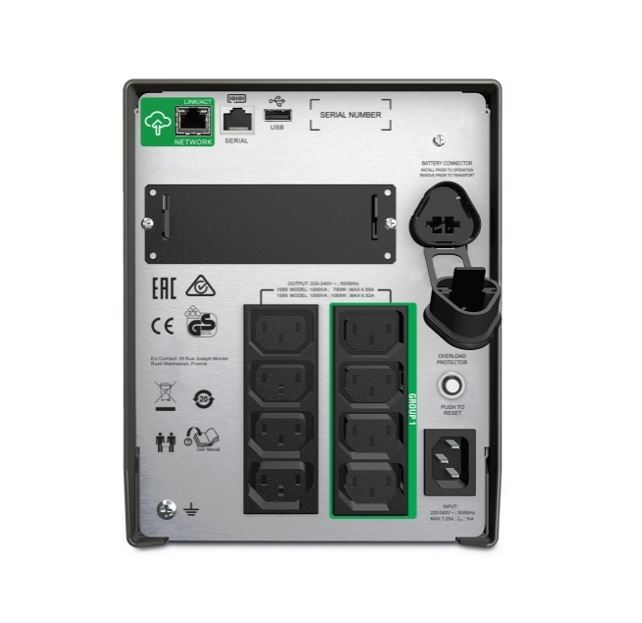

Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1,83meters

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

RBC7

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

SmartSlot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

--

Available SmartSlot„ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

219MM, 21.9CM

Maximum Width

171MM, 17.1CM

Maximum Depth

439MM, 43.9CM

Net Weight

24.09KG

Shipping weight

27.23KG

Shipping Height

376MM, 37.6CM

Shipping Width

328MM, 32.8CM

Shipping Depth

595MM, 59.5CM

Color

Black

Units per Pallet

12.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating E 1449
