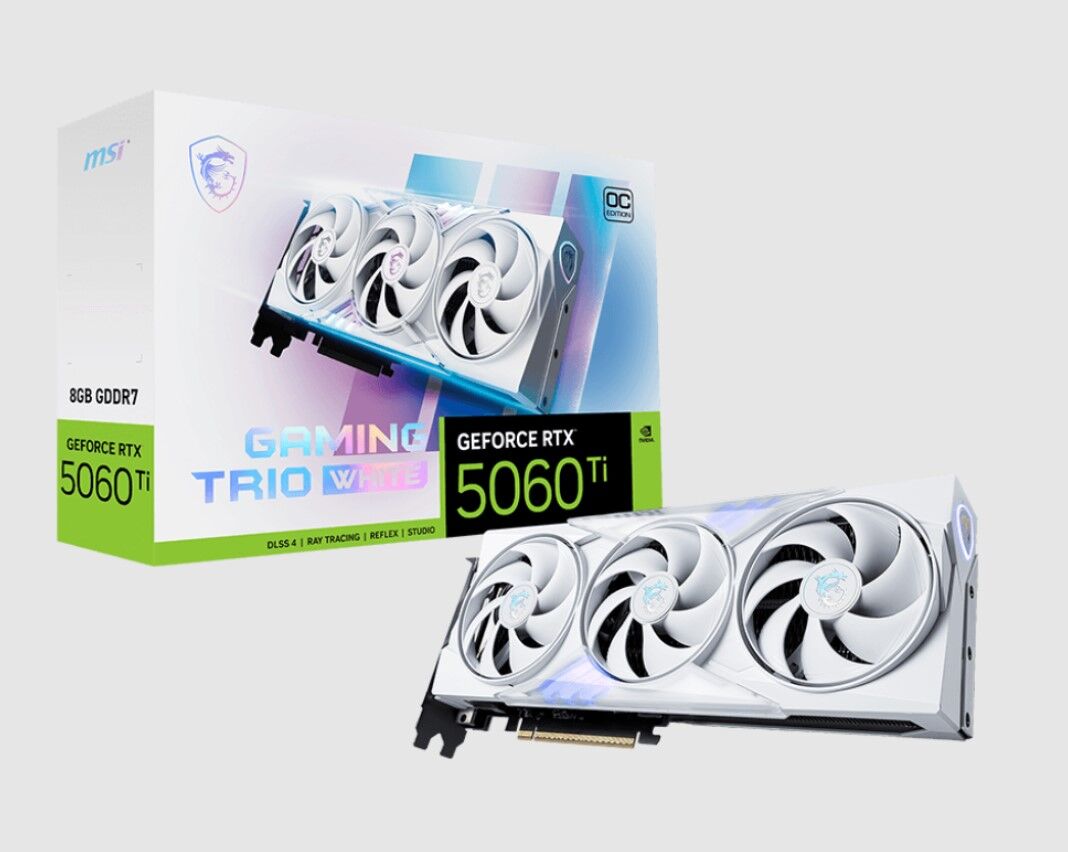

MSI nVidia GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE, PCI Express Gen 5 x 16, Boost: 2647 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI„ x 1 (emabargo)

SPECIFICATIONS

Marketing Name GeForce RTX„ 5060 Ti 8G GAMING TRIO OC WHITE

Model Name G506T-8GTCW

Graphics Processing Unit NVIDIA GeForce RTX„ 5060 Ti

Interface PCI Express Gen 5 x16 (uses x8)

Core Clocks Extreme Performance: 2662 MHz (MSI Center)

Boost: 2647 MHz

CUDA CORES 4608 Units

Memory Speed 28 Gbps

Memory 8GB GDDR7

Memory Bus 128-bit

Output DisplayPort x 3 (v2.1b)

HDMI„ x 1 (As specified in HDMI„ 2.1b: up

to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support Y

Power consumption 180 W

Power connectors 16-pin x 1

Recommended PSU 600 W

Card Dimension (mm) 300 x 125 x 44 mm

Weight (Card Package) 839 g 1345 g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320

FEATURES

TRI FROZR 4

Upgraded fans, airflow control, and thermal design deliver

superior cooling and quieter operation.

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed

for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.

Core Pipes

Core Pipes feature a square design to maximize contact with the

GPU baseplate for optimal thermal management.

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads

enhances cooling.

Wave Curved 4.0

Precision-engineered wave edges with a high-low fin design

enhance airflow and reduce turbulence.

Air Antegrade Fin 2.0

The fins feature a V-shaped cutout and a high-low design at the

airflow passthrough to optimize flow efficiency.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and

optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used

graphics card overclocking software in the world.
