Description

Output

Output power capacity: 700 Watts / 1.0 kVA

Max Configurable Power (Watts): 700 Watts / 1.0 kVA

Nominal Output Voltage: 230V

Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages: 220, 240

Topology: Line Interactive

Waveform type: Sine wave

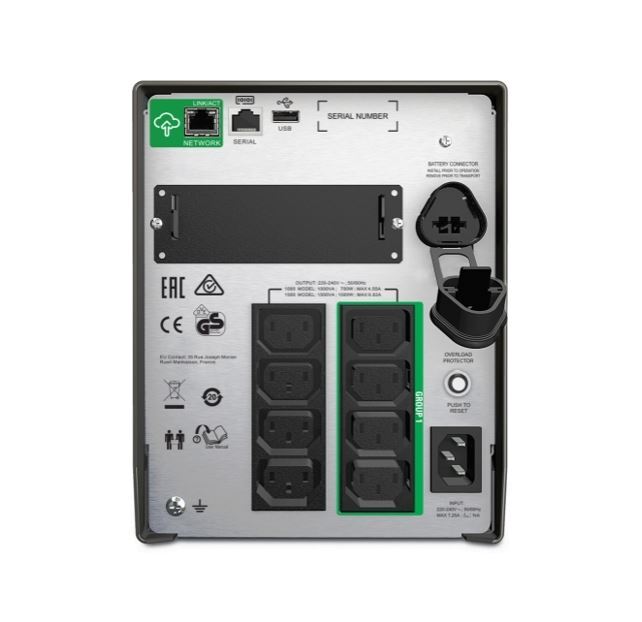

Output Connections: (8) IEC 320 C13 (Battery Backup)


Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Cord Length: 1.83 meters

Input voltage range for main operations: 160 - 286 V

Input voltage adjustable range for mains operation: 151 - 302 V

Other Input Voltages: 220, 240


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: RBC6

RBC Quantity: 1

Battery Volt-Amp-Hour Capacity: 264

Runtime: View Runtime Graph View Runtime Chart

Efficiency: View Efficiency Graph


Communications & Management

Interface Port(s): SmartSlot, USB

Control panel: Multi-function LCD status and control console

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Emergency Power Off (EPO): Optional

Available SmartSlot„ Interface Quantity: 1


Surge Protection and Filtering

Surge energy rating: 459 Joules

Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPC-SMT1000IC
Barcode # 731304332978
Brand APC
Shipping weight 22.5400kg
Shipping width 0.438m
Shipping height 0.696m
Shipping length 0.428m
Assembled length 3.280m
Assembled height 5.960m
Assembled width 3.380m

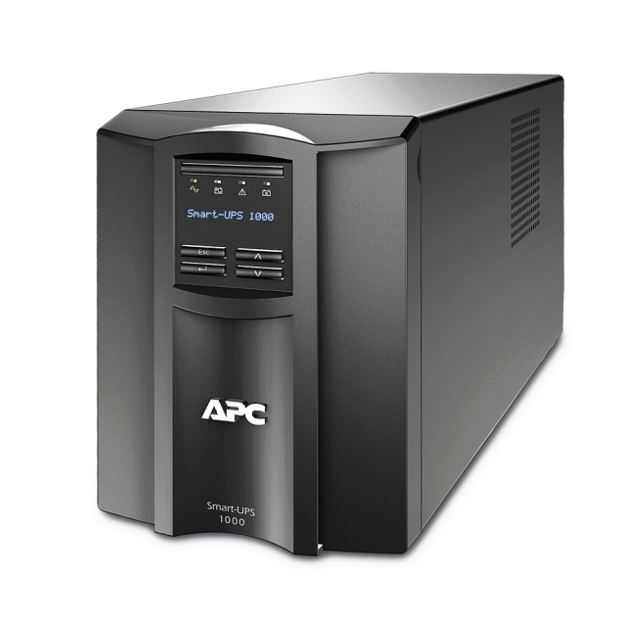

APC Smart-UPS 1000VA 700W Line Interactive UPS Tower 230V 10A Input 8x IEC C13 Outlets Lead Acid Battery SmartConnect Port Slot

$1,134.48
RRP $1,430.00 save 21%

or 4 payments of $283.62 with Learn more

Only 2 Left!

Product Information

SKU:

UPAPC-SMT1000IC

Brand:

APC

Barcode #:

731304332978

Shipping Weigth:

22.5400kg

Warranty:

36
