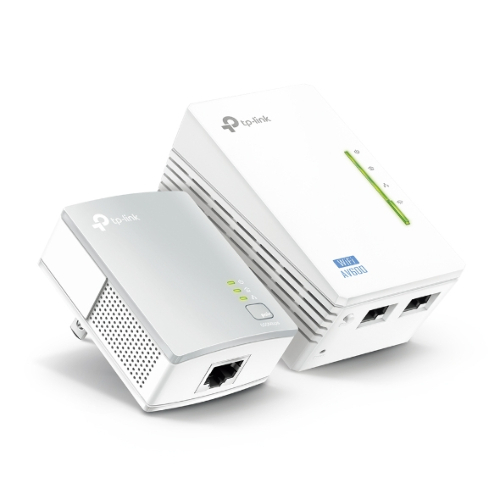

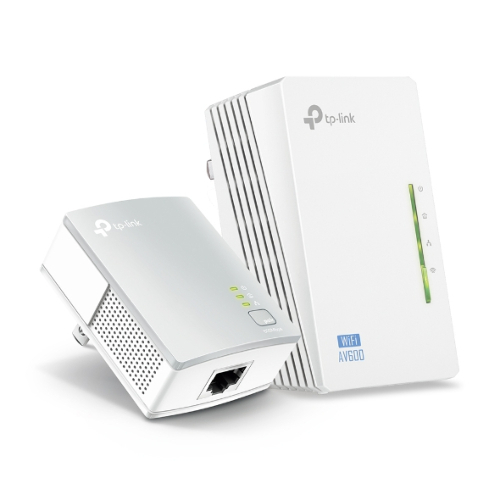

TP-Link TL-WPA4220KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit 600Mbps HomePlug AV 300Mbps Wireless 2x100Mbps LAN 2.4GHz 802.11bgn 300m range

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network

HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a homes existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

HARDWARE FEATURES

Plug Type AU

Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

Interface 2*10/100Mbps Ethernet Port

Button Pair, Reset, Wi-Fi/Wi-Fi Clone

Power Consumption Maximum: 7.608W (220V/50Hz)

Typical: 7.216W (220V/50Hz)

Standby: 4.610W (220V/50Hz)

LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone

Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)

TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)

Range 300 Meters over electrical circuit

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Wireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Advanced Functions Enable/DisableWireless Radio,WMM, Wireless Statistics

Transmission Power CE:<20dBm(2.4GHz)

FCC:<30dBm

SOFTWARE

Modulation Technology OFDM (PLC)

Encryption Powerline Security:

128-bit AES

Wireless Security:

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS

Certification CE, RoHS

Package Contents Package Contents:

—� AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411

—� Ethernet Cable × 2

—� Quick Installation Guide

Certification:

CE, RoHS

System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
