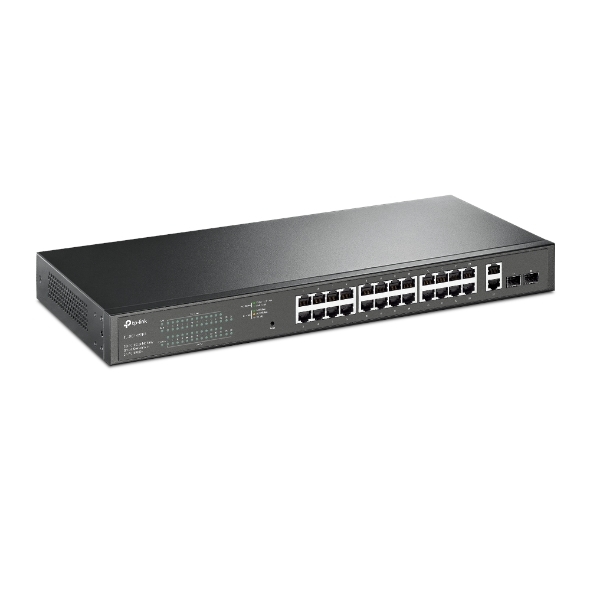

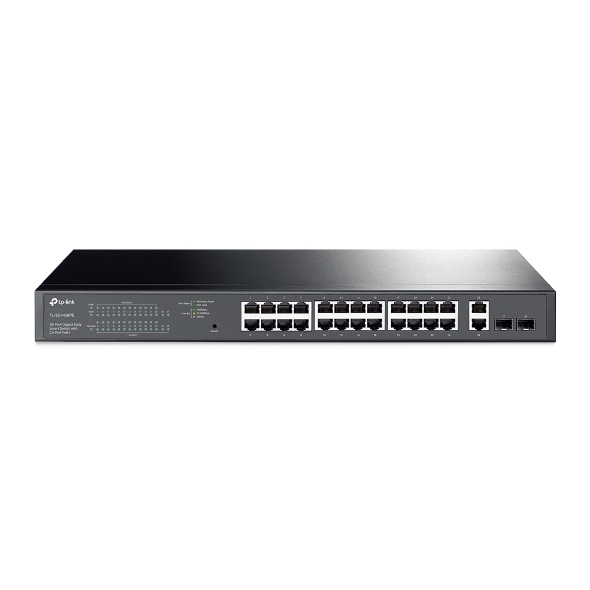

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

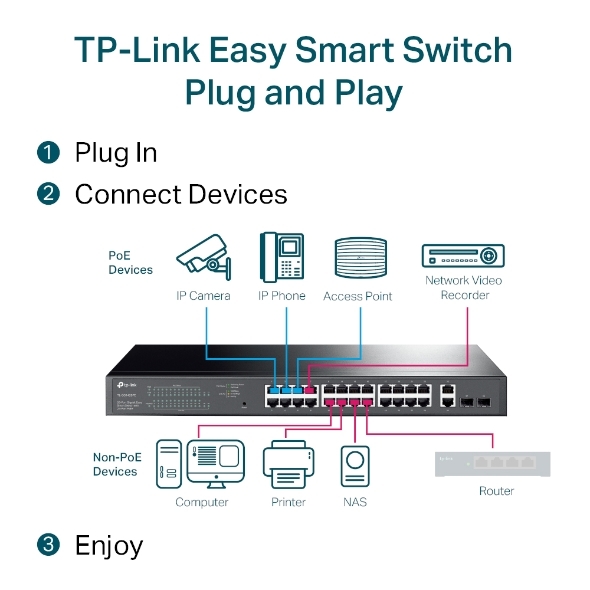

24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots

PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems

Priority Mode helps to guarantee the quality of sensitive application like video monitoring

PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV

Intelligent power management can protect the switch from overload

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface 26 10/100/1000 Mbps RJ45 Ports

2 Gigabit SFP Ports

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

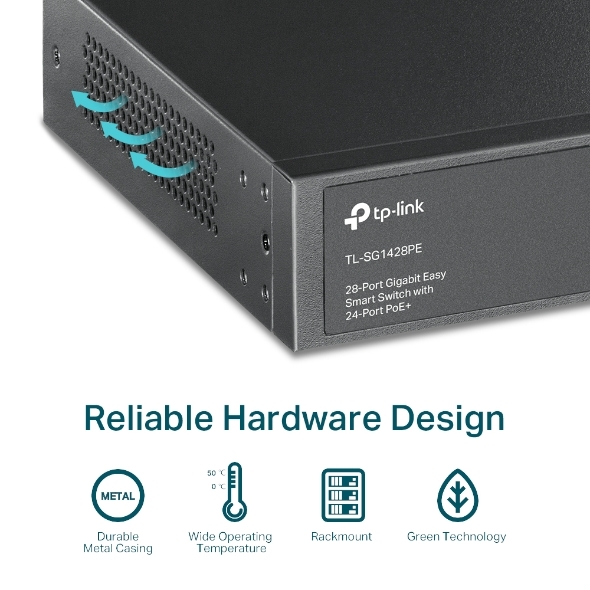

Fan Quantity 2 Fans

Physical Security Lock Yes

Power Supply 100-240V AC, 50/60 Hz

PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant

PoE+ Ports: 24 Ports

Power Supply: 250 W

Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 27 W (220/50Hz. no PD connected)

304.7 W (220/50Hz. with 250 W PD connected)

Max Heat Dissipation 92.07 BTU/h (no PD connected)

1039.03 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity 56 Gbps

Packet Forwarding Rate 41.7 Mbps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service Support Port-based 802.1p/DSCP priority
