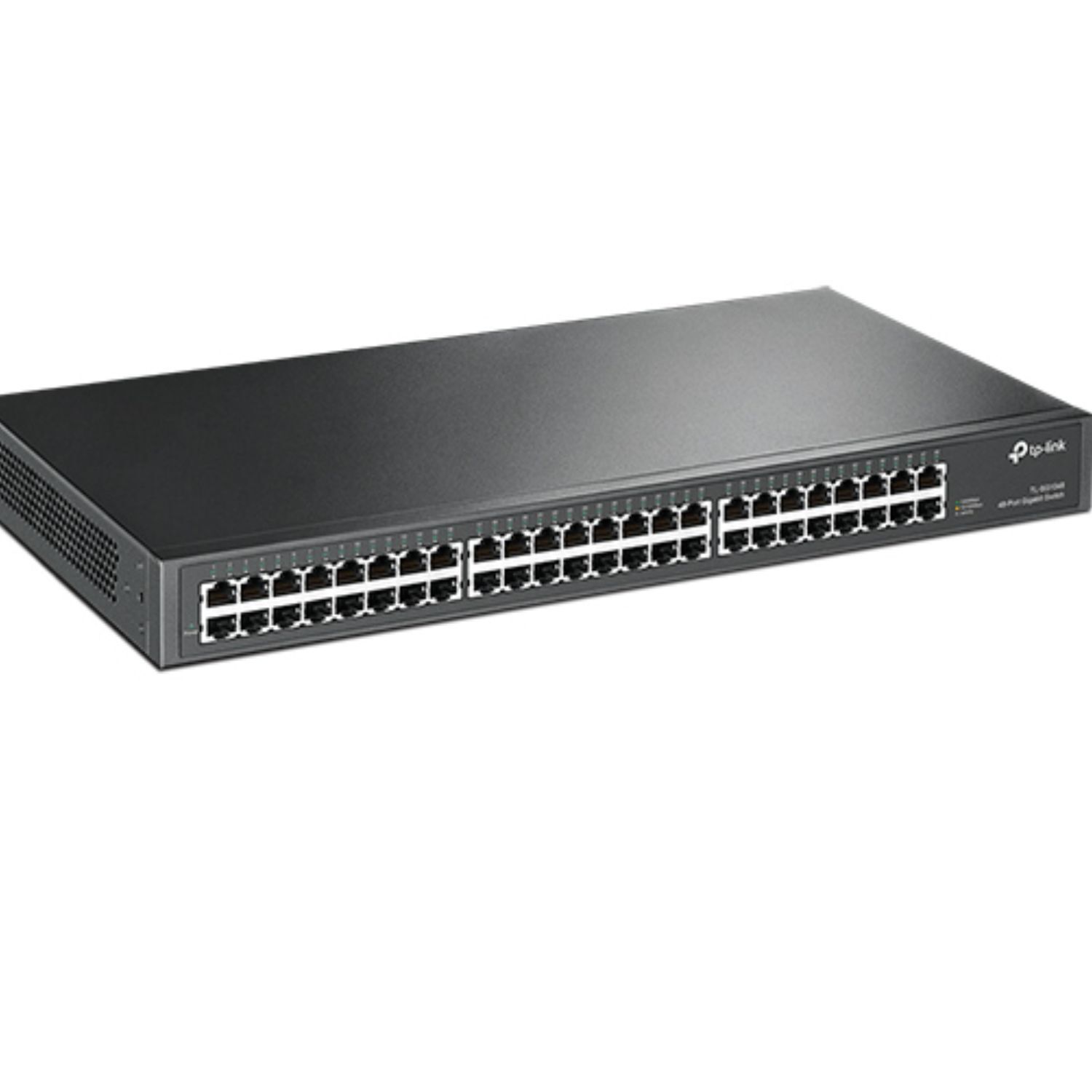

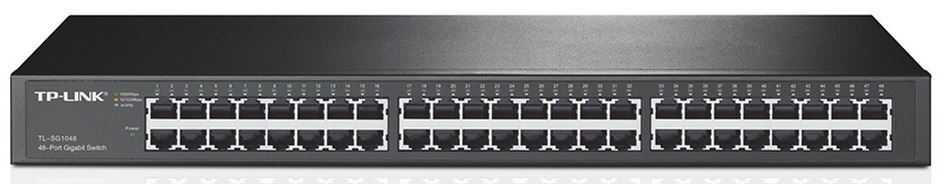

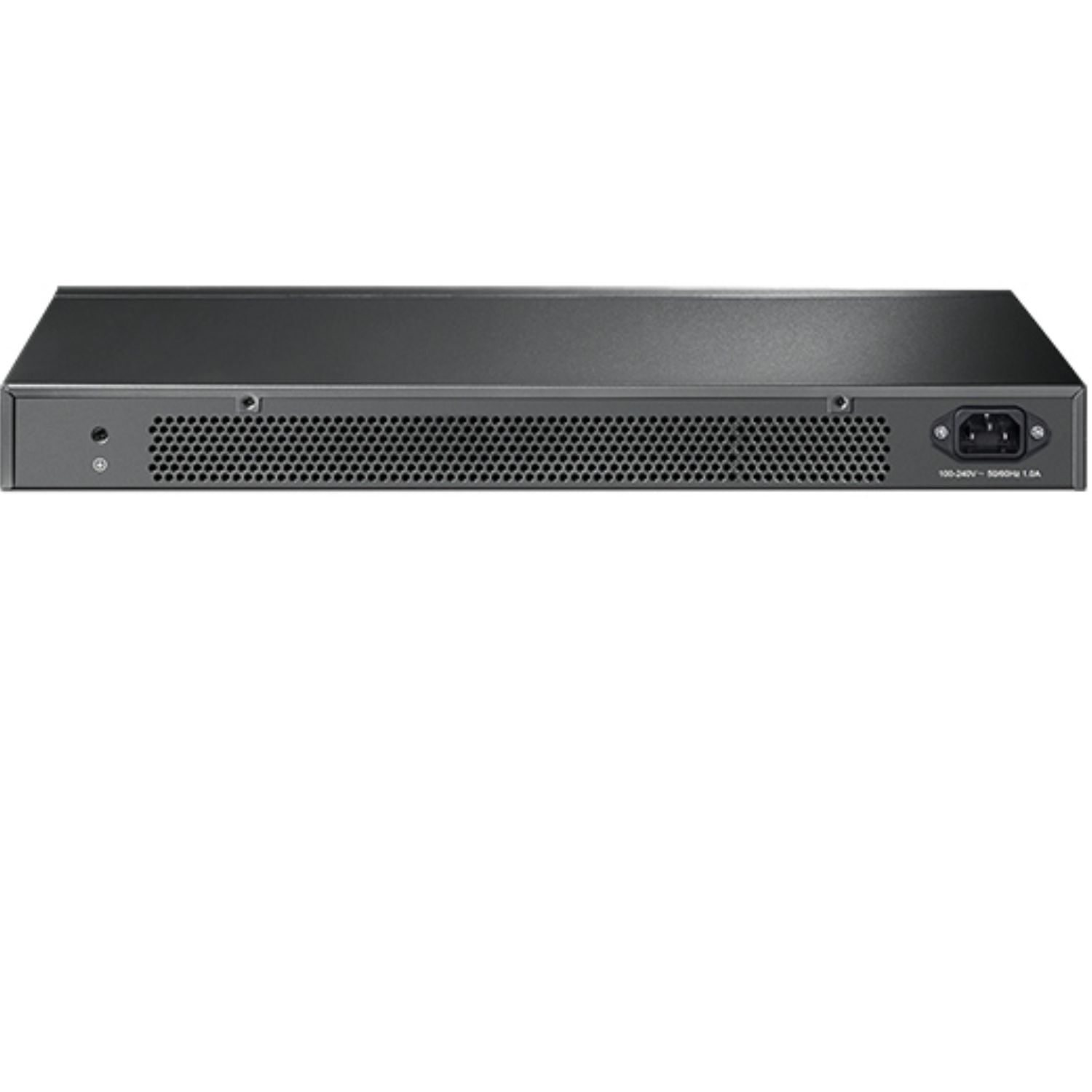

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch 19-inch rack-mountable steel case 96Gbps Switching Capacity IEEE 802.3x flow control Auto MDI/MDIX

48 10/100/1000Mbps RJ45 ports

Innovative energy-efficient technology saves power up to 18%

Supports MAC address self-learning and auto MDI/MDIX

Standard 19-inch rack-mountable steel case

What This Product Does

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity 2

Power Supply 100-240VAC, 50/60Hz

Power Consumption Maximum: 29.8W (220V/50Hz)

Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm)

PERFORMANCE

Switching Capacity 96Gbps

Packet Forwarding Rate 71.4Mpps

MAC Address Table 8K

Buffer Memory 16Mb

Jumbo Frame 10KB

Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents 48-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰);

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
