Description

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.


Innovative Mechanical Design


Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.

Easy removal The antenna feed can be detached with the push of a button.


Corrosion Resistance


Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.


SPECIFICATION


Processor Specs: Atheros MIPS 74Kc, 560 MHz

Memory: 64 MB DDR2, 8 MB Flash

Operating Frequency: 2412 - 2472 MHz Worldwide

Net. Interface: (1) 10/100/1000 Ethernet Port

Gain: 13 dBi

Polarization: Dual Linear

Max. Power Consumption: 8.5W

Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92')

Weight: 0.530 kg (1.17 lb)

Power Supply (PoE): 24V, 0.5A PoE

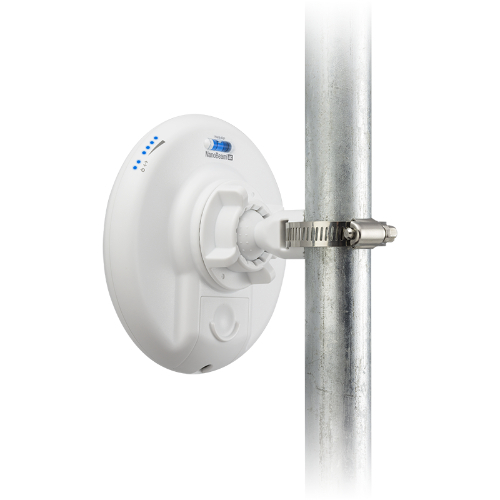

Mounting: Pole-Mount (Kit Included), Wall-Mount

Operating Temperature: -40 to 80° C (-40 to 176° F)

Operating Humidity: 5 to 95% Noncondensing

Specifications
SKU NHU-NBE-2AC-13
Barcode # 810354024627
Brand Ubiquiti
Shipping weight 1.7000kg
Shipping width 0.328m
Shipping height 0.196m
Shipping length 0.342m
Assembled length 2.420m
Assembled height 0.960m
Assembled width 2.280m

Ubiquiti NanoBeam Airmax 2AC 13dBi 2.4GHz 802.11n MIMO antenna 150 Mbps Range 10 km

$175.16
RRP $189.00 save 7%

or 4 payments of $43.79 with Learn more

In Stock

Product Information

SKU:

NHU-NBE-2AC-13

Brand:

Ubiquiti

Barcode #:

810354024627

Shipping Weigth:

1.7000kg

Warranty:

12
