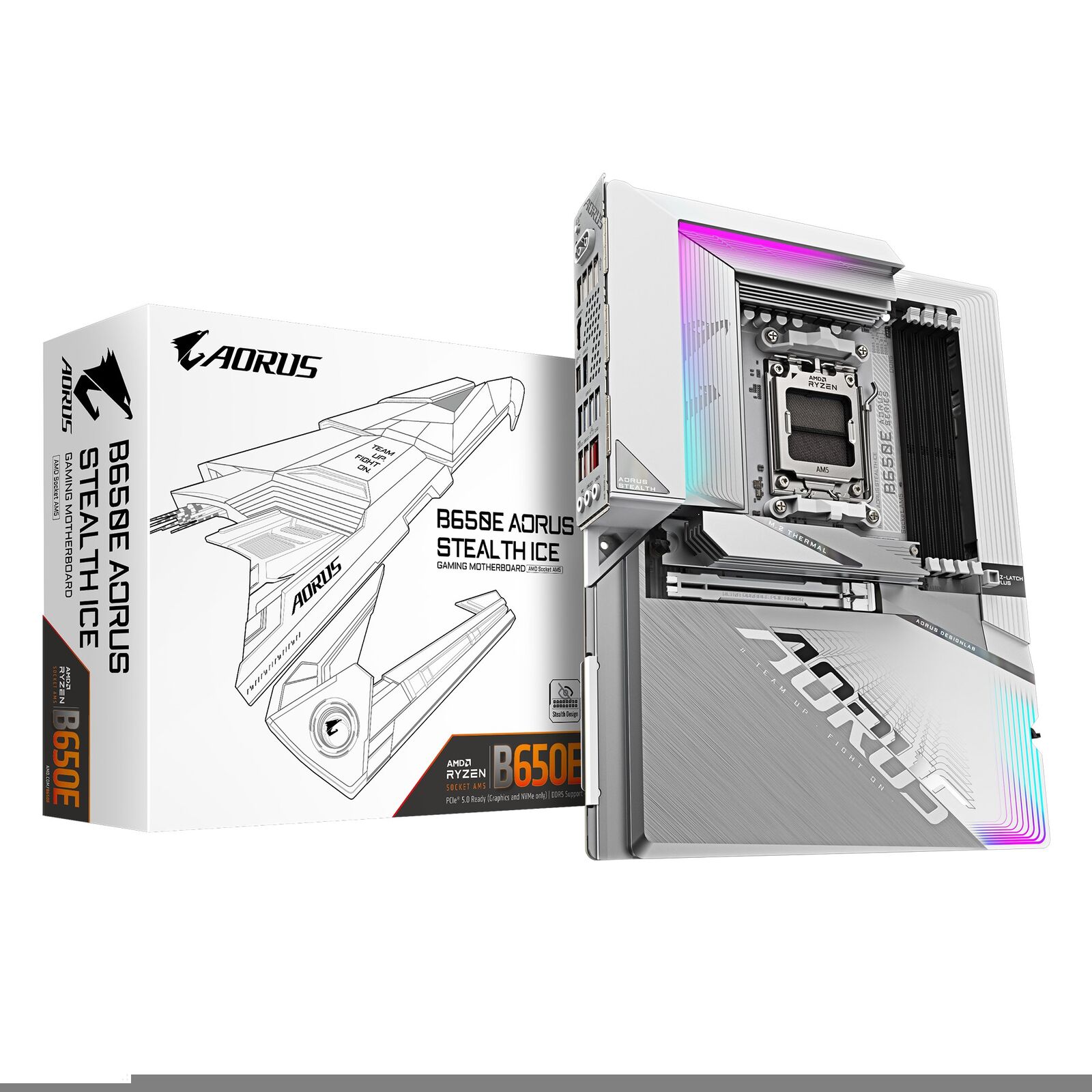

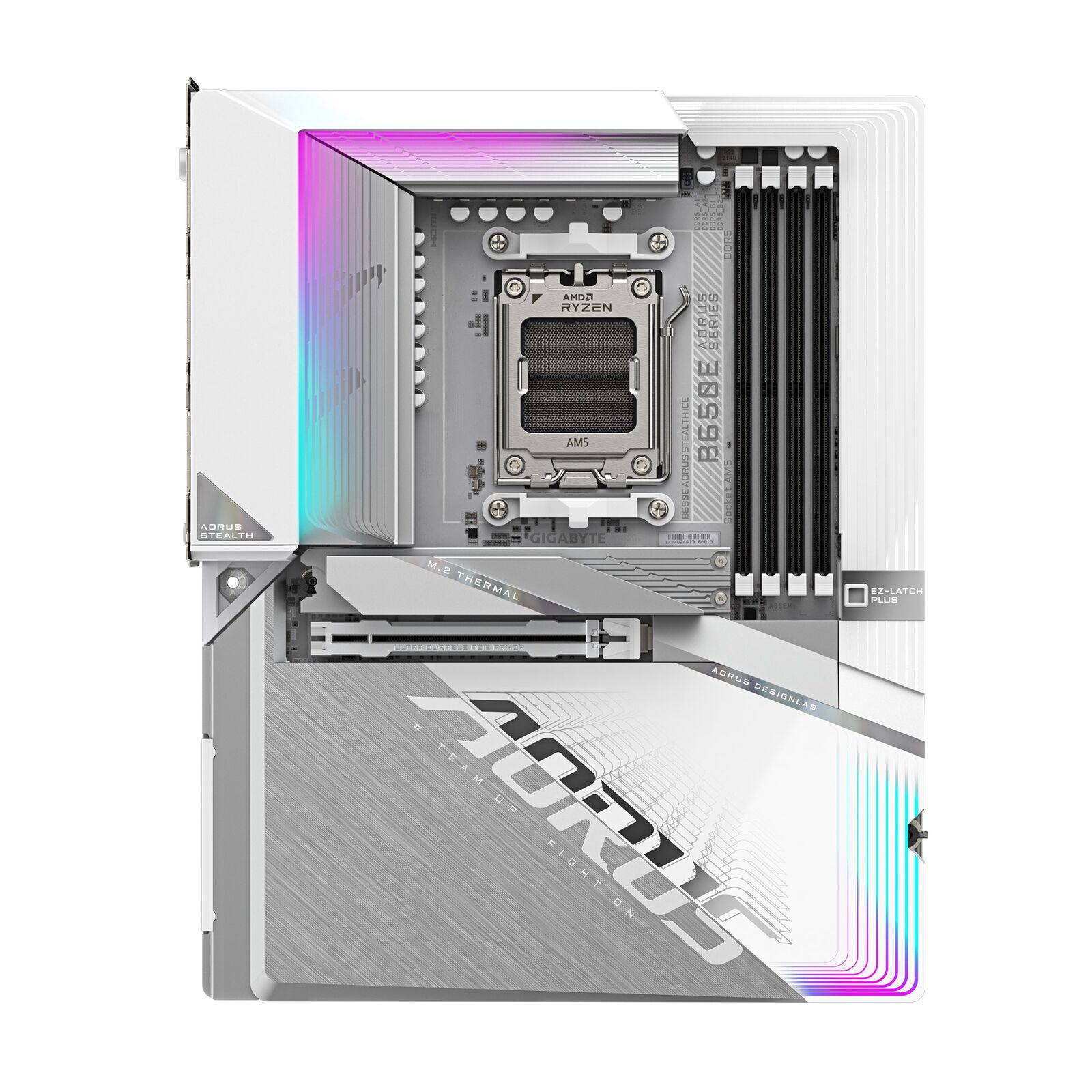

Gigabyte B650E AORUS STEALTH ICE AMD AM5 ATX Motherboard 4x DDR5~256GB,1x PCIe x16, 3x M.2, 4x SATA 6, 8x USB 3.2, 1x USB-C, 4x USB 2.0

CPU:

AMD Socket AM5, support for: AMD Ryzen„ 7000 8000 9000 Series Processors

Chipset:

AMD B650

Memory:

upport for DDR5 8000(OC) 7800(OC) 7600(OC) 7200(OC) 7000(OC) 6800(OC) 6666(OC) 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5600(OC) 5200 4800 4400 MT s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support forAMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor with AMD Radeon„ Graphics support:

- 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs

and a maximum resolution of 3840x2160 144 Hz

Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support for native HDMI 2.1 TMDS compatible ports.

- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080 30 Hz

Support for HDMI 1.4 version

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen„ 9000 7000 Series Processors support PCIe 5.0 x16 mode

- AMD Ryzen„ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen„ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

USB:

CPU:

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 (Note1)

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU USB 2.0 Hub:

- 4 x USB 2.0 1.1 ports on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0 1.1 ports available through the internal USB headers

ChipsetUSB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel
