Description

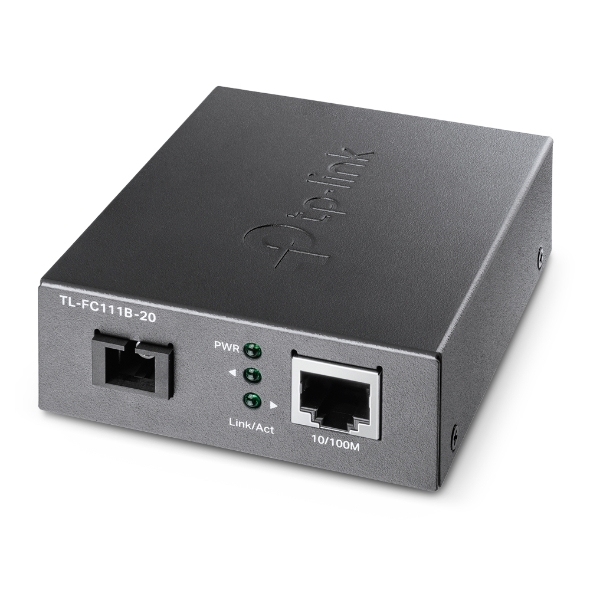

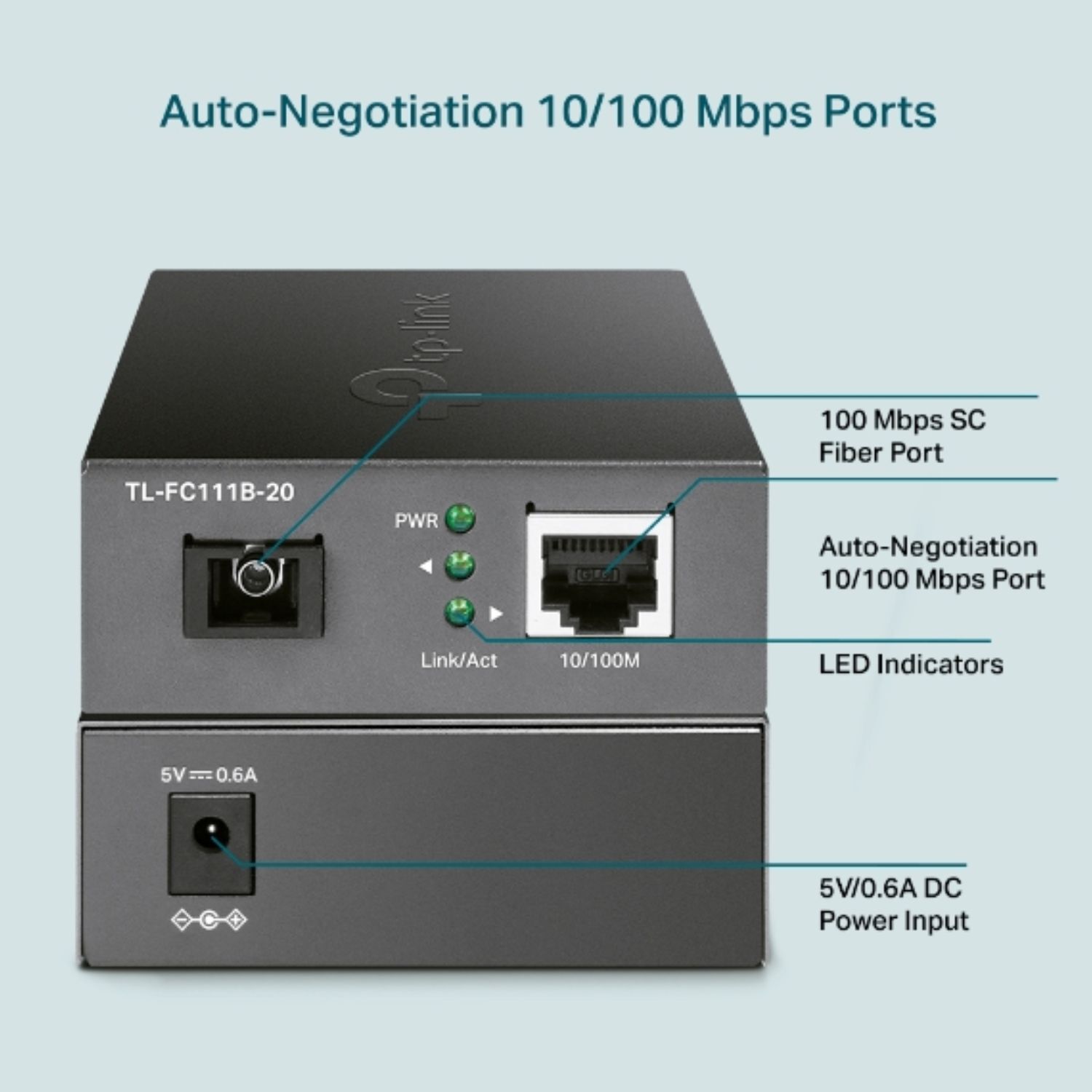

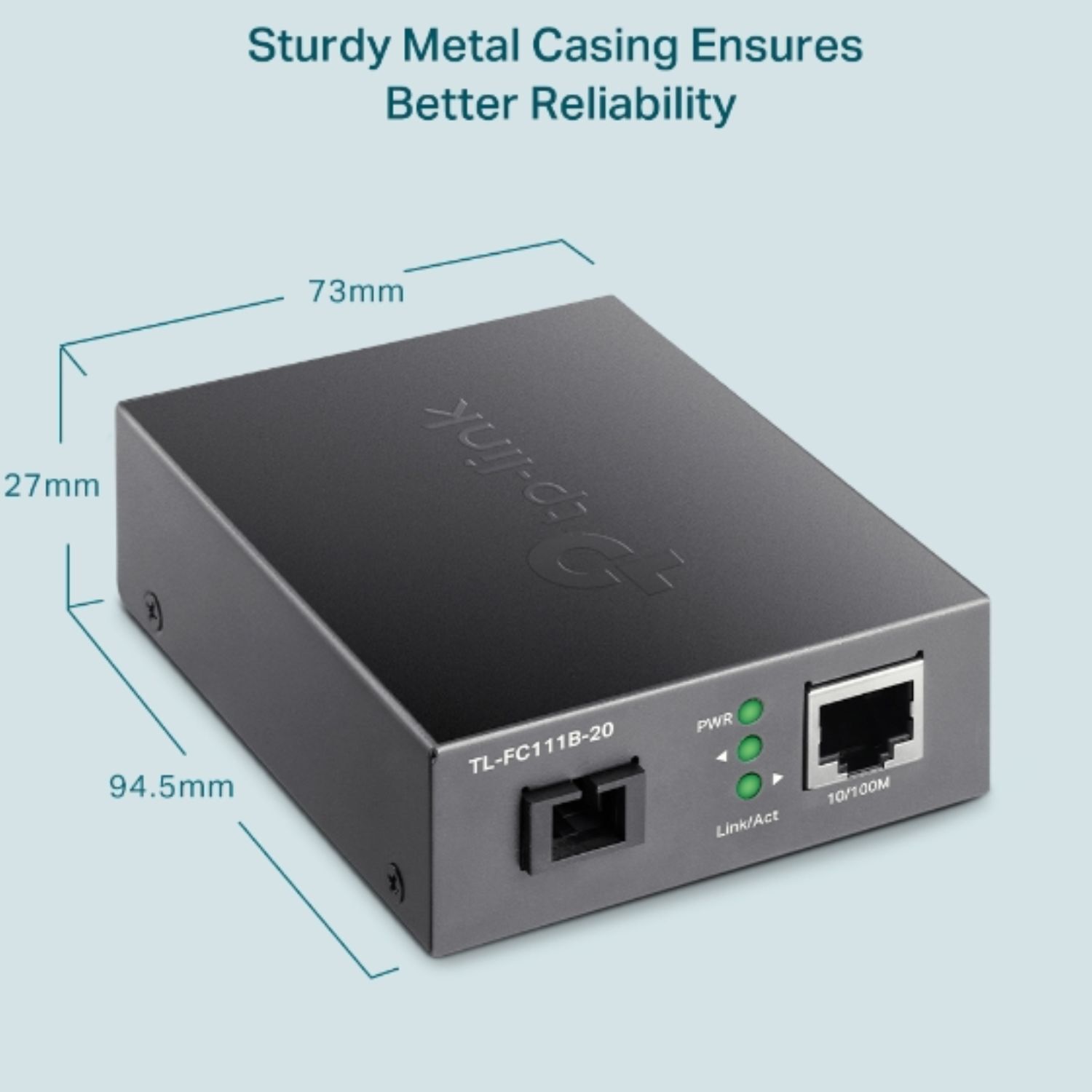

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter


Complies with 802.3u 10/100Base-TX, 100Base-FX standards

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Adopts WDM technology, transmitting and receiving data on one single fibre

Extends fibre distance up to 20km


What This Product Does

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.


How This Product Works

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111B-20 should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111B-20.


Other Features

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Links TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications
SKU NWTL-FC111B-20
Barcode # 6935364010997
Brand TP-LINK
Shipping weight 0.9400kg
Shipping width 0.306m
Shipping height 0.166m
Shipping length 0.268m
Assembled length 1.680m
Assembled height 0.660m
Assembled width 2.060m

TP-Link TL-FC111B-20 10 100 Mbps WDM Media Converter - IEEE 802.3u 1550nm 20KM (Compatible with TL-FC111A-20)

$27.84
RRP $39.00 save 29%

or 4 payments of $6.96 with Learn more

In Stock

Product Information

SKU:

NWTL-FC111B-20

Brand:

TP-LINK

Barcode #:

6935364010997

Shipping Weigth:

0.9400kg

Warranty:

36
