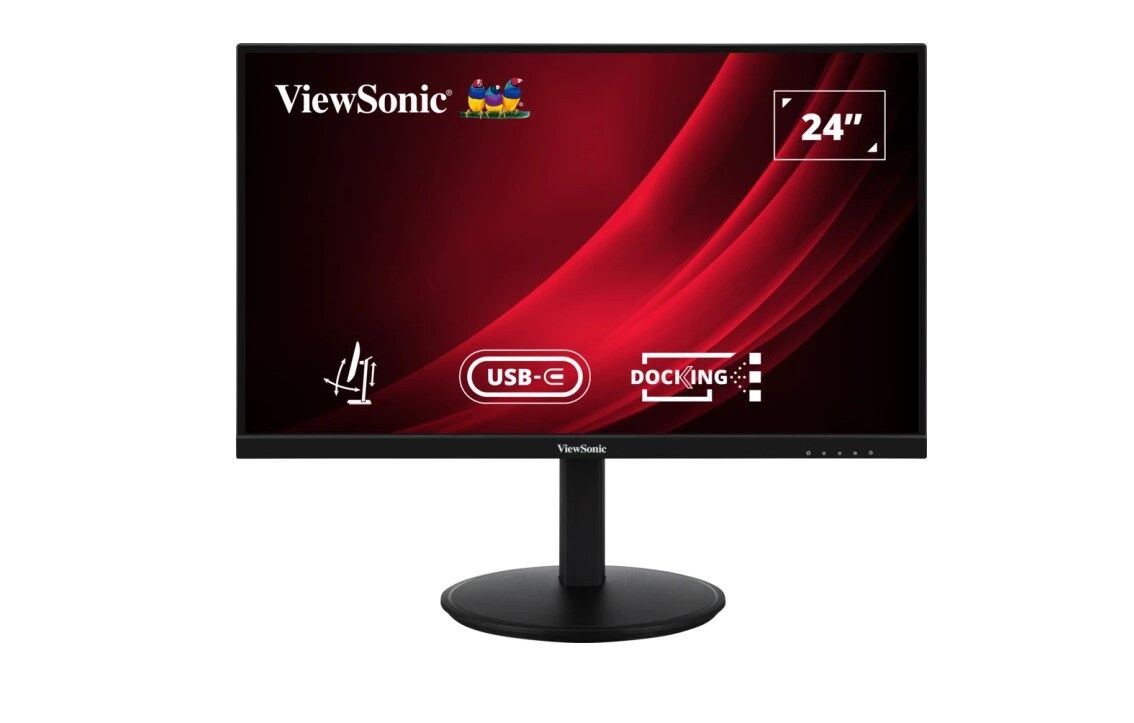

The ViewSonic VG2409U-2 is a 24 ft FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, DisplayPort, and DisplayPort Out for business and home use. Equipped with 65W USB-C ports, ethernet, and daisy-chain support, the VG2409U-2 serves as a complete integrated docking station for charging, audiovisual and data transfer, and network connectivity, effectively reducing cable clutter. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.

SPECIFICATIONS

Display

Display Size (in.): 24

Viewable Area (in.): 23.8

Panel Type: IPS Technology

Resolution: 1920 x 1080

Resolution Type: FHD (Full HD)

Static Contrast Ratio: 1,300:1 (typ)

Dynamic Contrast Ratio: 50M:1

High Dynamic Range: HDR10

Light Source: LED

Brightness: 350 cd m² (typ)

Colors: 16.7M

Color Space Support: 8 bit (6 bit FRC)

Aspect Ratio: 16:9

Response Time (Typical GTG): 4ms

Response Time (GTG w OD): 4ms

Viewing Angles: 178º horizontal, 178º vertical

Backlight Life (Hours): 30000 Hrs (Min)

Curvature: Flat

Refresh Rate (Hz): 100

Variable Refresh Rate Technology: Yes

Low Blue Light: Software solution

Flicker-Free: Yes

Color Gamut: NTSC: 72pct size (Typ)

sRGB: 104pct size (Typ)

Pixel Size: 0.275 mm (H) x 0.275 mm (V)

Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

PC Resolution (max): 1920x1080

Mac Resolution (max): 1920x1080

PC Operating System: Windows 10 11 certified macOS tested

Mac Resolution (min): 1920x1080

Connector

USB 3.2 Type A Down Stream: 2

USB 3.2 Type B Up Stream: 1

USB 3.2 Type C Up Stream DisplayPort Alt mode : 1 (65W power charger)

3.5mm Audio Out: 1

HDMI 1.4: 1

DisplayPort: 1

DisplayPort Out: 1

Power in: 3-pin Socket (IEC C14 CEE22)

Ethernet LAN (RJ45): 1

Audio

Internal Speakers: 2.5Watts x2

Power

Eco Mode (Conserve): 12W

Eco Mode (optimized): 13.5W

Consumption (typical): 15.5W

Consumption (max): 19.5W

Voltage: AC 100-240V

Stand-by: 0.5W

Power Supply: Internal Power Supply

Additional Hardware

Kensington Lock Slot: 1

Cable Organization: Yes

Controls

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature: 32 degreeF to 104 degreeF (0 degreeC to 40 degreeC)

Humidity (non-condensing): 20pct to 90pct

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

Frequency Horizontal: 30 ~ 112KHz

Frequency Vertical: 48 ~ 100Hz

Video Input

Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C

Ergonomics

Height Adjust (mm): 130

Swivel: 360º

Tilt (Forward Back): -3.5º 28º

Pivot (Right Left): 90º 90º

Weight (imperial)

Net (lbs): 12.3

Net Without Stand (lbs): 7.7

Gross (lbs): 15.9

Weight (metric)

Net (kg): 5.6

Net Without Stand (kg): 3.5

Gross (kg): 7.2

Dimensions (imperial) (wxhxd)

Packaging (in.): 24.5 x 20.5 x 5.7

Physical (in.): 21.25 x 15.35~20.47 x 9.18

Physical Without Stand (in.): 21.25 x 12.72 x 2

Dimensions (metric) (wxhxd)

Packaging (mm): 622 x 520 x 144

Physical (mm): 539.7 x 389.89~519.89 x 233.29

Physical Without Stand (mm): 539.7 x 323.18 x 50.9

General

Regulations: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BIS

PACKAGE CONTENTS: VG2409U-2 x1, 3-pin Plug (IEC C13 CEE22) x1, HDMI Cable (v1.4 Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A B Cable (v3.2 Male-Male) x1, Quick Start Guide x1

Recycle Disposal: Please dispose of in accordance with local, state or federal laws.

Warranty: Warranty offered may differ from market to market

Power Management: Energy Star standards, EPEAT
