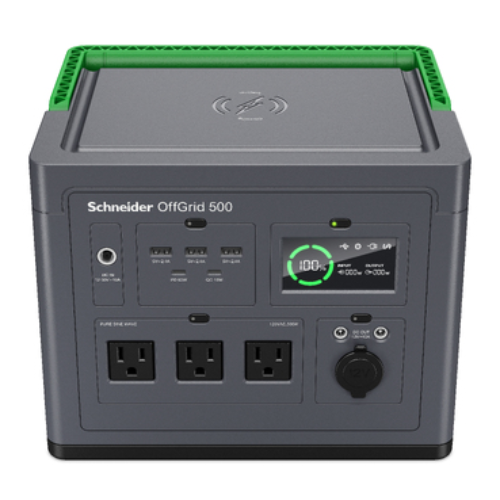

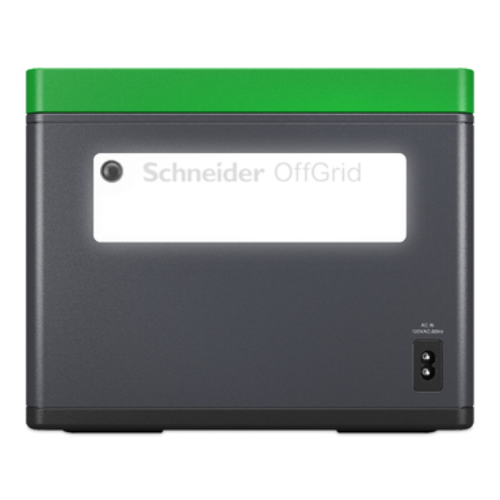

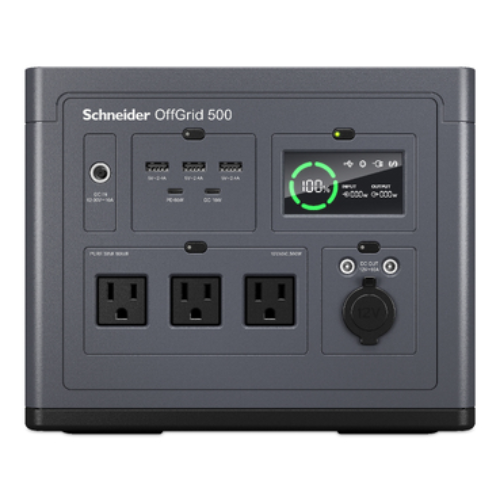

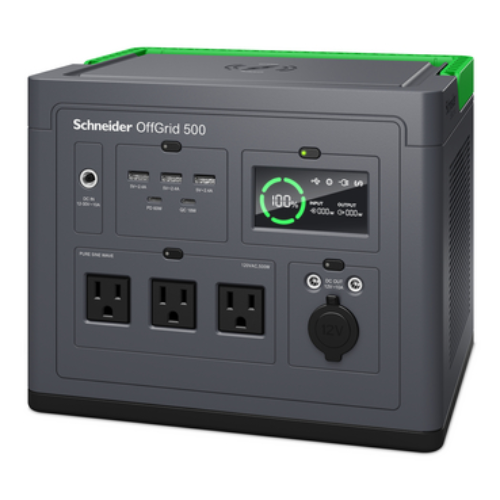

APC OffGrid Portable Power Station 500, 120V, 517Wh Lithium-ion, LCD, 3 NEMA, Sinewave, 3 USB-A, 2 USB-C, Wireless Charger

The Portable Power Station is compact for easy portability without compromising durability. It features 3 pure sine wave AC outlets, 3 USB-A ports, 2 DC5521 outlets, one car port, and 2 USB-C PD ports up to PD60W. The Portable Power Station comes with three ways to recharge: wall, solar, and car. It takes ~7 hours to fully charge via wall outlet, or 3 hours by connecting it to the optional 200W solar panel accessory. Designed with sustainability in mind, the Portable Power Station has casing made with 60pct recycled plastic and comes in sustainable packaging. It comes with a 2 year warranty for your peace of mind.

Product or Component Type

Portable power station

Battery Type

Li-Ion (Lithium Ion)

Battery capacity in Wh

517 W.h

Number of input connectors

(1) 12...30 V DC, 10 A, (200 W)

(1) 90...140 V AC, 2.3 A, (80 W)

Number of output connectors

(3) NEMA 5-15, 120 V ,AC, 4.17 A(500 W) 60 Hz, Sine wave

(3) USB type A, 5 V ,DC, 2.4 A(12 W)

(1) USB type C, 5...20 V ,DC, 3 A(60 W)

(1) USB type C quick charge, 5...12 V ,DC, 3 A(18 W)

(1) car cigaratte lighter port, 12 V ,DC, 10 A(120 W)

(2) DC5521, 12 V ,DC, 5 A(500 W) 60 Hz, Sine wave

(1) wireless charging,DC(15 W)

Range of Product

Schneider OffGrid

Complementary

Color

Black and Green

Height

9.84 in (25 cm)

9.8 in (248.9 mm)

Width

7.87 in (20 cm)

7.8 in (198.1 mm)

Depth

8.03 in (20.4 cm)

8.0 in (203.2 mm)

Net Weight

12.1 lb(US) (5.5 kg)

12.1 lb(US) (5.5 kg)

Product Specific Application

For Caravan Camping Power Supply

Mobile wireless charging

Product Certifications

TUV C-US certified

FCC Class B

BC

Provided Equipment

AC cable

1 car charging cable

User Manual

Battery capacity in Wh

517 W.h 500 cycles with 80pct capacity

Environment

Ambient Air Temperature for Storage

-4¦158 degreeF (-20¦70 degreeC)

-20¦70 degreeC (-4¦158 degreeF)

Charging temperature

32¦104 degreeF (0¦40 degreeC)

-0¦40 degreeC (32¦104 degreeF)

Discharging temperature

14¦104 degreeF (-10¦40 degreeC)

-10¦40 degreeC (14¦104 degreeF)

Ordering and shipping details

GTIN

731304736752

Country of origin

CN

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.87 in (32.7 cm)

Package 1 Width

11.54 in (29.3 cm)

Package 1 Length

12.68 in (32.2 cm)

Package 1 Weight

15.7 lb(US) (7.1 kg)

Contractual warranty

Warranty

2 years repair or replace
