Description

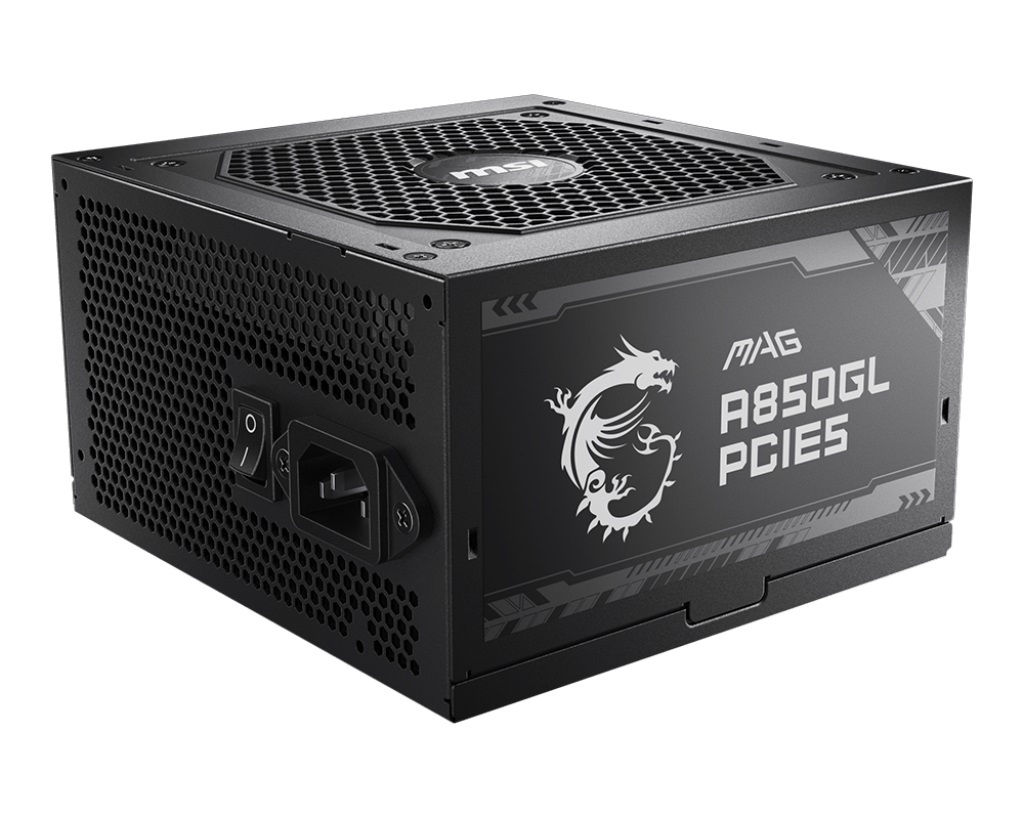

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit


FEATURES:

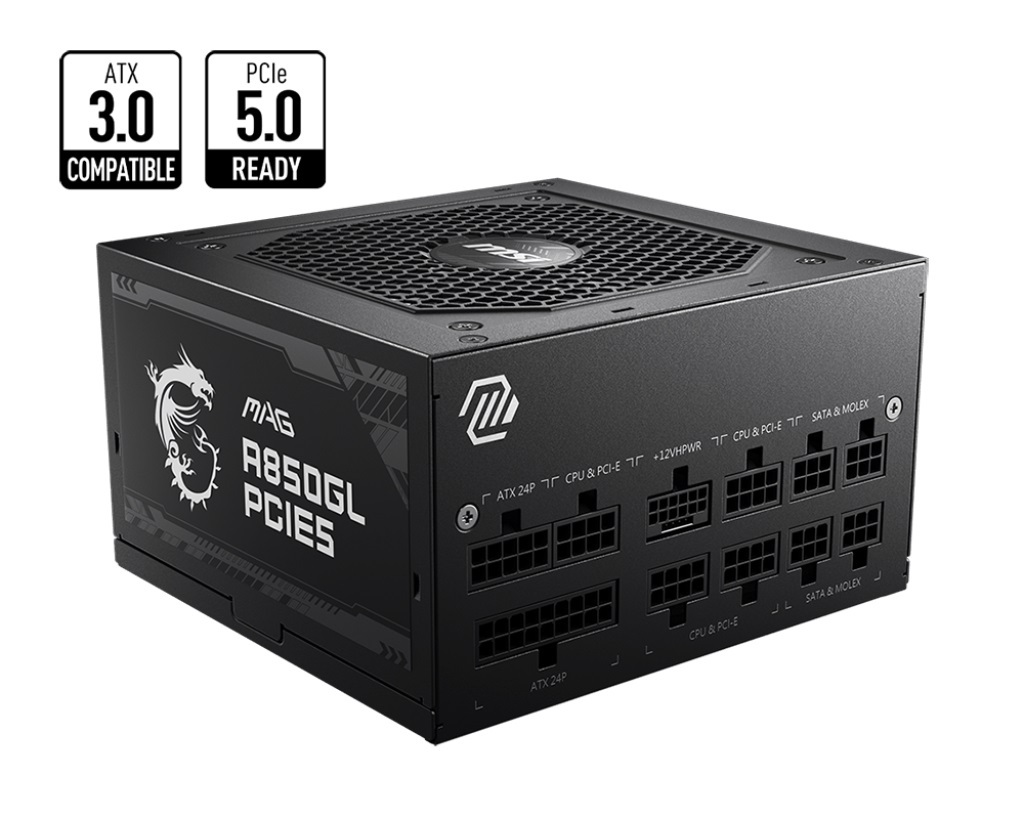

ATX 3.0 compatible, native PCIe 5.0 connector

Supports NVIDIA GeForce RTX„ 40 Series graphics cards

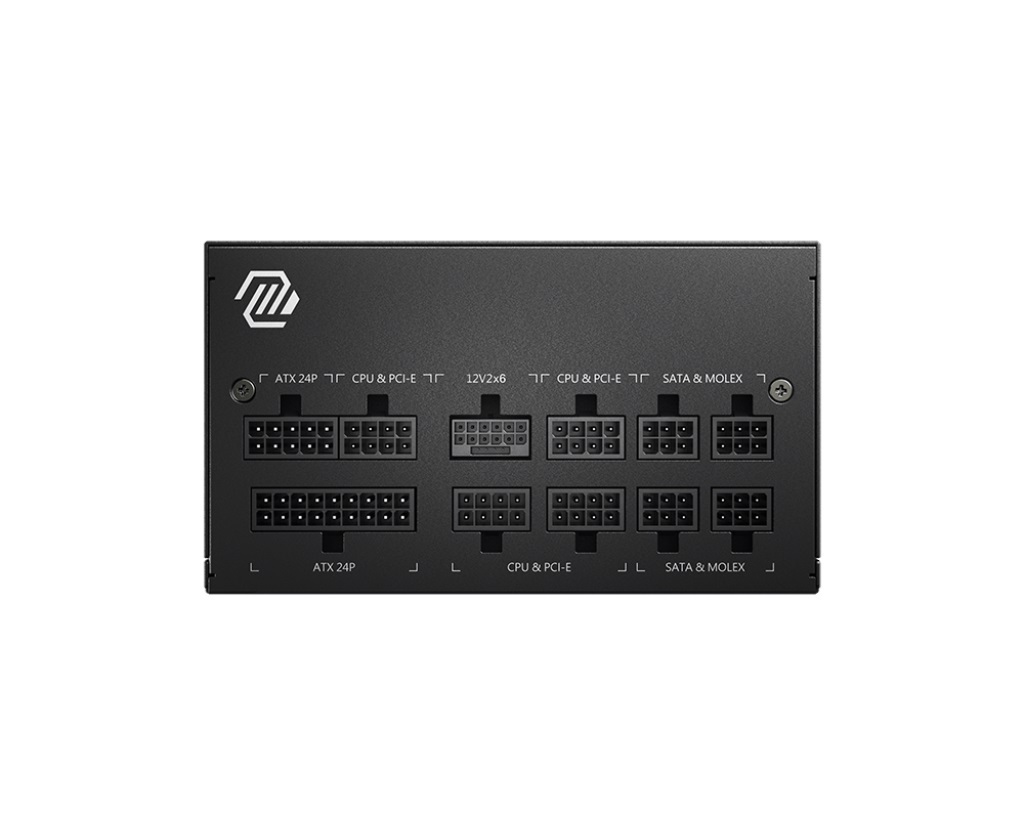

Full modular design,Flat cables

80 Plus Gold certified for high efficiency

Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

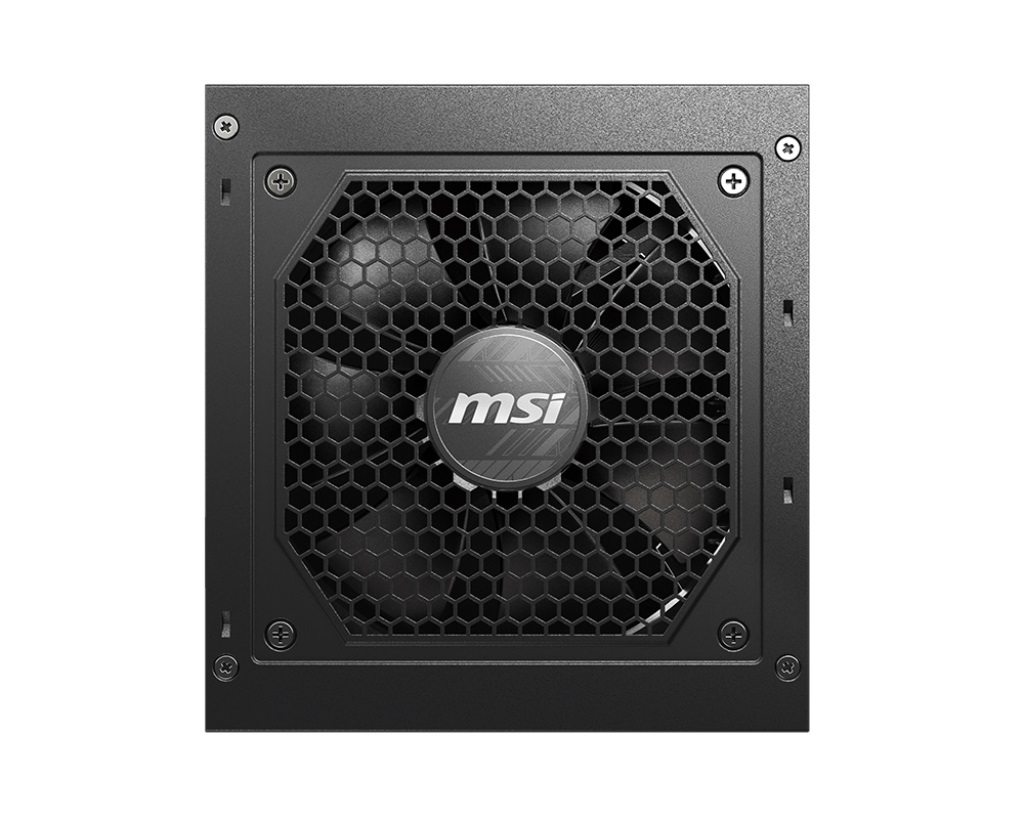

120mm Fluid Dynamic Bearing Fan

LLC Full Bridge Topology with DC-DC module design


SPECIFICATIONS:


EFFICIENCY RATING 80 PLUS Gold (up to 90%)

MODULAR Yes (full modular)

FAN SIZE 120 mm

FAN BEARING Fluid Dynamic Bearing

DIMENSIONS (DXWXH) 140 x 150 x 86 mm

PFC TYPE Active PFC

INPUT VOLTAGE RANGE 100~240 VAC

POWER WATT 850W

POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)

INPUT FREQUENCY RANGE 47-63Hz

PROTECTION OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 PIN) 1

EPS (4+4 PIN) 2

PCI-E 5.0 (16 PIN) 1 (600W)

PCI-E (6+2 PIN) 4

SATA (15 PIN) 8

MOLEX (4 PIN) 4

FDD (4 PIN) 1

Specifications
SKU PSM-A850GLPCIE5
Barcode # 4711377084253
Brand MSI
Shipping weight 3.4400kg
Shipping width 0.326m
Shipping height 0.228m
Shipping length 0.404m
Assembled length 3.040m
Assembled height 1.280m
Assembled width 2.260m

MSI MAG A850GL PCIE5 850W Up to 90pct (80 Plus Gold) ATX Power Supply Unit

$170.52
RRP $179.30 save 5%

or 4 payments of $42.63 with Learn more

In Stock

Product Information

SKU:

PSM-A850GLPCIE5

Brand:

MSI

Barcode #:

4711377084253

Shipping Weigth:

3.4400kg
