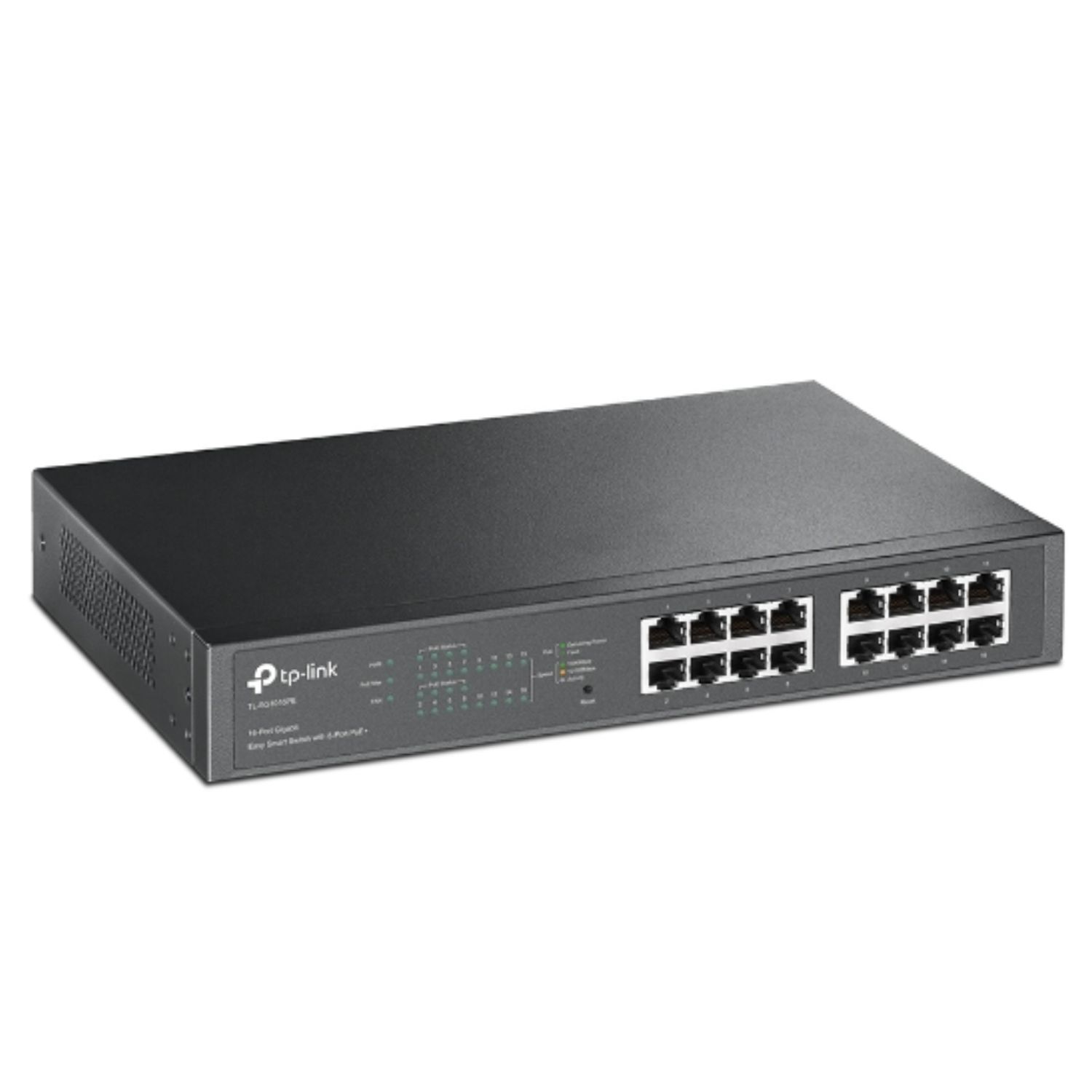

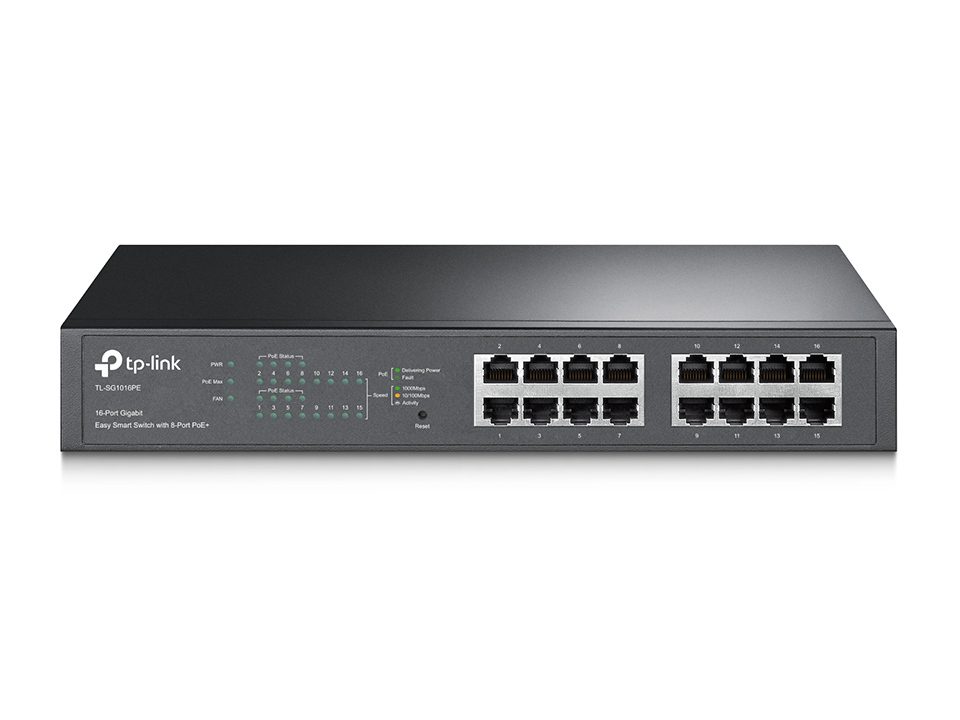

TP-Link TL-SG1016PE JetStream 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ 32Gbps IEEE 802.3af/at Priority Function Mac Address Auto-Learning
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power output by up to 75%*
Plug and play design, no configuration required
*Actual data may vary in different usage environment.
HARDWARE FEATURES
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum (PoE on): 124.4W (220V/50Hz)
Maximum (PoE off): 14.4W (220V/50Hz)
PoE+ Ports(RJ45) 8 Ports
Backbound Bandwidth 32 Gbps
Mac Address Table 8K
Buffer Size 1.5 Mbits
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)
Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU | NWTL-SG1016PE |
Barcode # | 6935364098865 |
Brand | TP-LINK |
Shipping weight | 2.9200kg |
Shipping width | 0.350m |
Shipping height | 0.182m |
Shipping length | 0.506m |
Assembled length | 4.060m |
Assembled height | 0.820m |
Assembled width | 2.500m |
TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE Rack Mountable Desktop32 Gbps Switching Capacity8K MAC Address Table
or 4 payments of $52.78 with Learn more
Product Information
SKU:
NWTL-SG1016PE
Brand:
TP-LINK
Barcode #:
6935364098865
Shipping Weigth:
2.9200kg
Warranty:
60
