Output

Output power capacity: 700 Watts / 1.4 kVA

Max Configurable Power (Watts): 700 Watts / 1.4 kVA

Nominal Output Voltage: 230V

Output Frequency (sync to mains): 50/60 Hz +/-1 Hz

Output Frequency (not synced): 50/60 Hz +/-1 Hz

Topology: Line Interactive

Waveform type: Stepped approximation to a sinewave

Output Connections: (6) Australian (Battery Backup)

Transfer Time:8ms typical: 10 ms maximum

Input

Nominal Input Voltage: 230V

Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: Australian/Chinese

Cord Length:1.22 meters

Input voltage range for main operations:150 - 280 V

Number of Power Cords: 1

Maximum Input Current:6.0 A

Input Power Factor at Full Load:0.5

Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 8 hour(s)

Battery Volt-Amp-Hour Capacity: 165

Runtime: View Runtime Graph

Efficiency: View Efficiency Graph

Communications & Management

Interface Port(s): USB

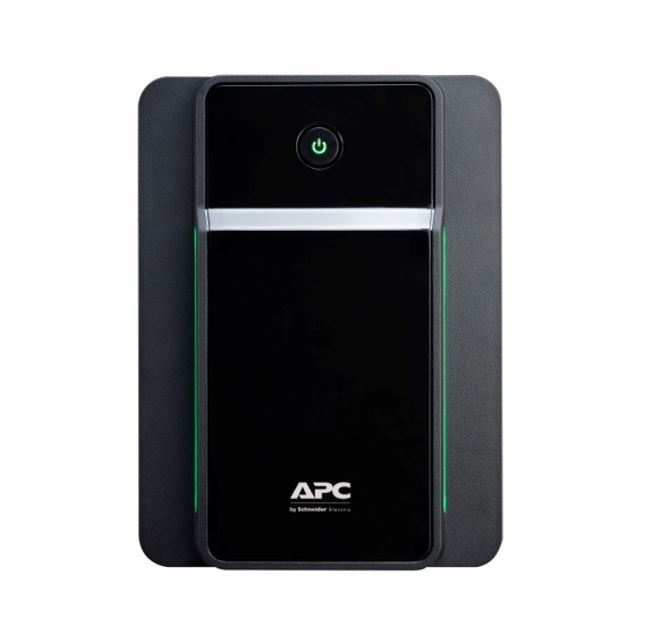

Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating:273 Joules

Data Line Protection: RJ-11 Modem/Fax protection

Physical

Maximum Height: 215, 21.5 cm

Maximum Width: 130, 13.0 cm

Maximum Depth:336, 33.6 cm

Net Weight: 12.0 kg

Shipping weight: 12.94 kg

Shipping Height: 295, 29.5 cm

Shipping Width: 245, 24.5 cm

Shipping Depth: 440, 44.0 cm

Color: Black

Environmental

Operating Environment: 0 - 40 °C

Operating Relative Humidity: 0 - 95% no %

Operating Elevation: 0-3000 meters

Storage Temperature: -15 - 40 °C

Storage Relative Humidity: 0 - 95 %

Storage Elevation: 0-9000 meters

Audible noise at 1 meter from surface of unit: 45.0 dBA

Conformance

Approvals: RCM, T
