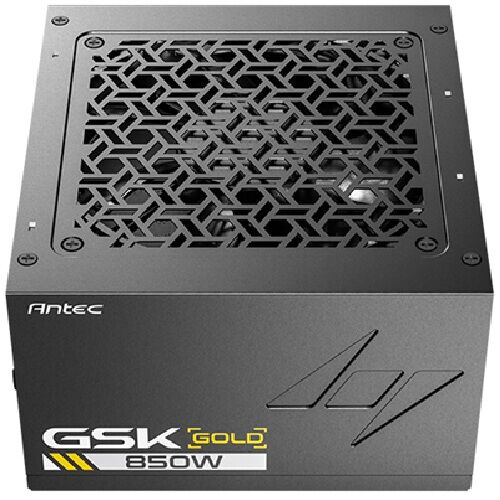

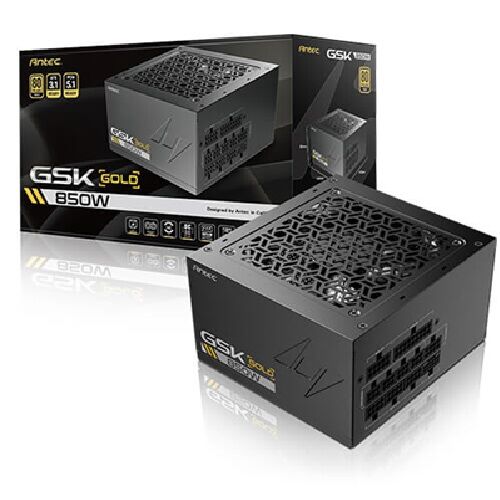

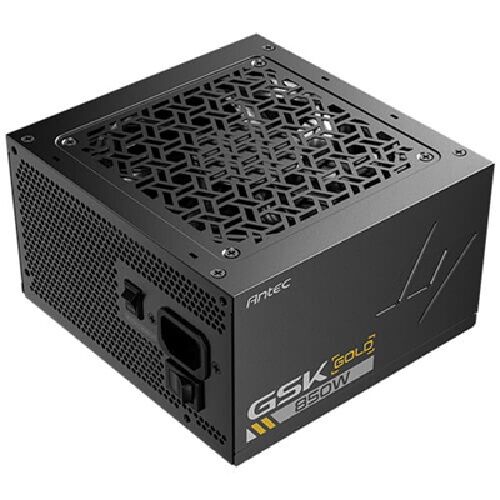

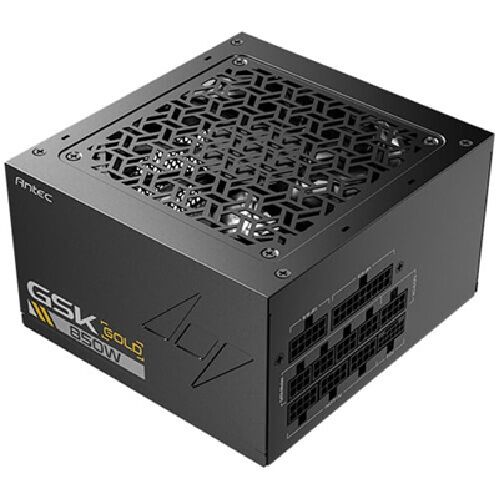

Antec GSK850 V2 80 Gold Fully Modular, 850W, ATX 3.1, 140—150—86mm, 120mm fan, PCIE 5.1, 12VHPWR, OCP OVP UVP SCP OPP OTP, 7Y warranty

Introducing our GSK ATX3.1 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, unparalleled stability, and 80 PLUS Gold-certified efficiencies, you can expect brilliant performance from your system. The PhaseWave„ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet cooling. The power supply is also 100pct modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield„ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The GSK ATX3.1 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.

SPECIFICATIONS

Model GSK850 ATX3.1

Safe Model X7000A118XU-24

Type ATX 12V 3.1

Dimension 140(L) x 150(W) x 86(H) mm

Modular Full-Modular

Warranty 7 years

Input Voltage 100V-240V

Input Current 10A Max

Input Frequency Range 50Hz-60Hz

PFC Active PFC

Power Good Signal 100-150ms

Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity 850W

Operation Temperature 0~40 degreeC

Regulatory cTUVus TUV CB RCM CE FCC BSMI KC UKCA ICES

Fan 120mm Silent Fan

Certifications 80 Plus Gold

Box Dimensions 296(L) x 203(W) x 130(H) mm

Net Weight 2.62 kg

Gross Weight 2.84 kg

Connector

1 x 24 (204) pin MB

1 x 16 (124) pin PCIE 5.1 12VHPWR

2 x 8 (44) pin CPU

4 x 8 (62) pin PCI-E

8 x SATA

4 x Molex
