TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
Priority mode for ports 1“8 to guarantees the quality of sensitive applications like video monitor.
Isolation Mode allows one-click client traffic separation for higher security and performance.

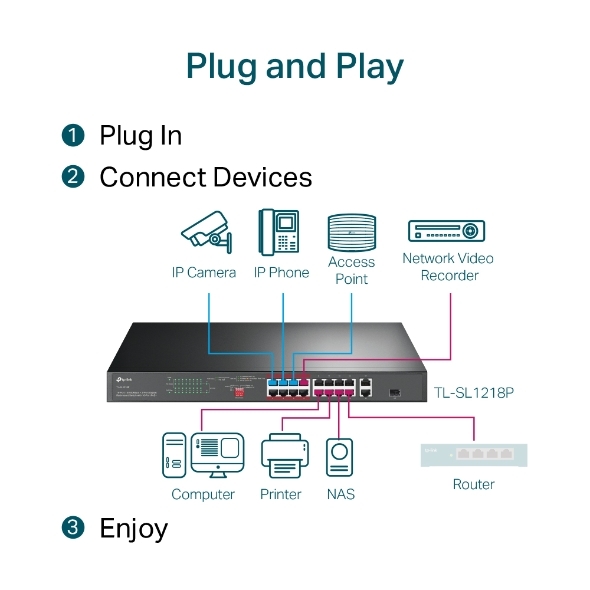

Easy to use, with no configuration and installation needed.
HARDWARE FEATURES
Interface 16× PoE+ 10/100 Mbps RJ45 Ports
2× 10/100/1000 Mbps RJ45 Ports
1× Combo Gigabit SFP Slot
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF

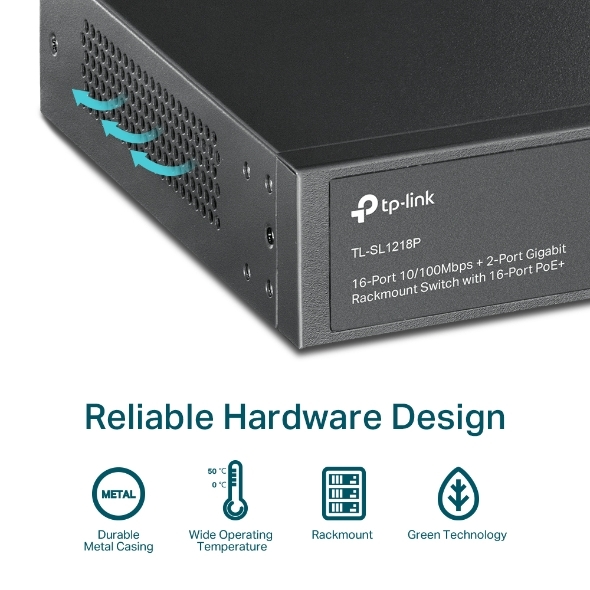

Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100“240V AC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1“16
PoE Power Budget: 150 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption 12.71 W (220/50Hz. no PD connected)
172.8 W (220/50Hz. with 150 W PD connected)
Max Heat Dissipation 43.34 BTU/h (no PD connected)
589.25 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
MAC Address Table 8K
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method Store-And-Forward
SKU | NWTL-SL1218P |
Barcode # | 6935364052829 |
Brand | TP-LINK |
Shipping weight | 3.2800kg |
Shipping width | 0.350m |
Shipping height | 0.182m |
Shipping length | 0.632m |
Assembled length | 5.320m |
Assembled height | 0.820m |
Assembled width | 2.500m |
TP-Link TL-SL1218P 16-Port 10 100 Mbps 2-Port Gigabit Rackmount Switch with 16-Port PoE Up to 150W for all PoE ports Up to 30W for each PoE port
