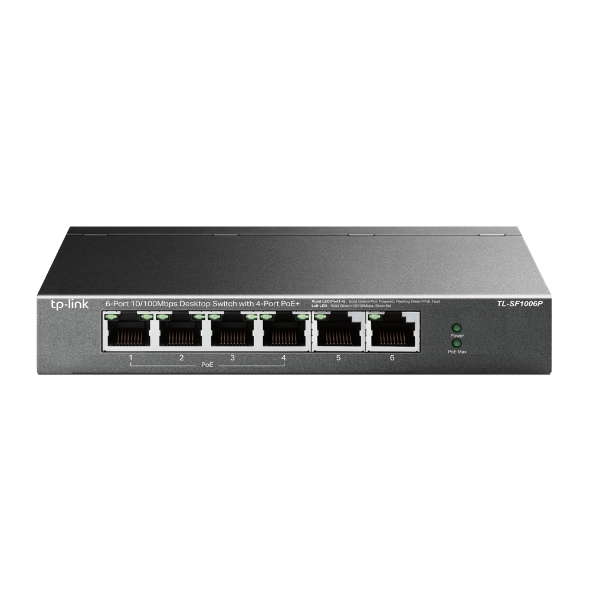

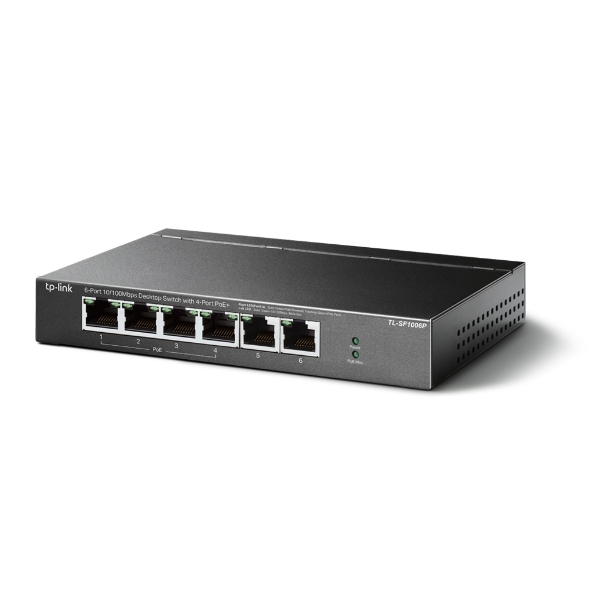

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

6× 10/100 Mbps RJ45 ports

4× PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Up to 250m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports*

Plug and play with no configuration required

HARDWARE FEATURES

Interface 6× 10/100 Mbps RJ45 Ports (ports 1“4 support 802.3af/at PoE+)

AUTO Negotiation

AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)

Packet Forwarding Rate 0.8928 Mpps

PoE Ports (RJ45) Standard: 802.3 af/at compliant

PoE Ports: Ports 1“4

Power Supply: 67 W

Mac Address Table 2K

Jumbo Frame 2 KB

Switching Capacity 1.2 Gbps

Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)

74 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation 6.48 BTU/h(no PD connected)

252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs

Extend Mode Button (Ports 1“4)

Priority Mode Button (Ports 1“2)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SF1006P

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 „ƒ (32“104 „‰)

Storage Temperature: -40“70 „ƒ (-40“158 „‰)
