Description

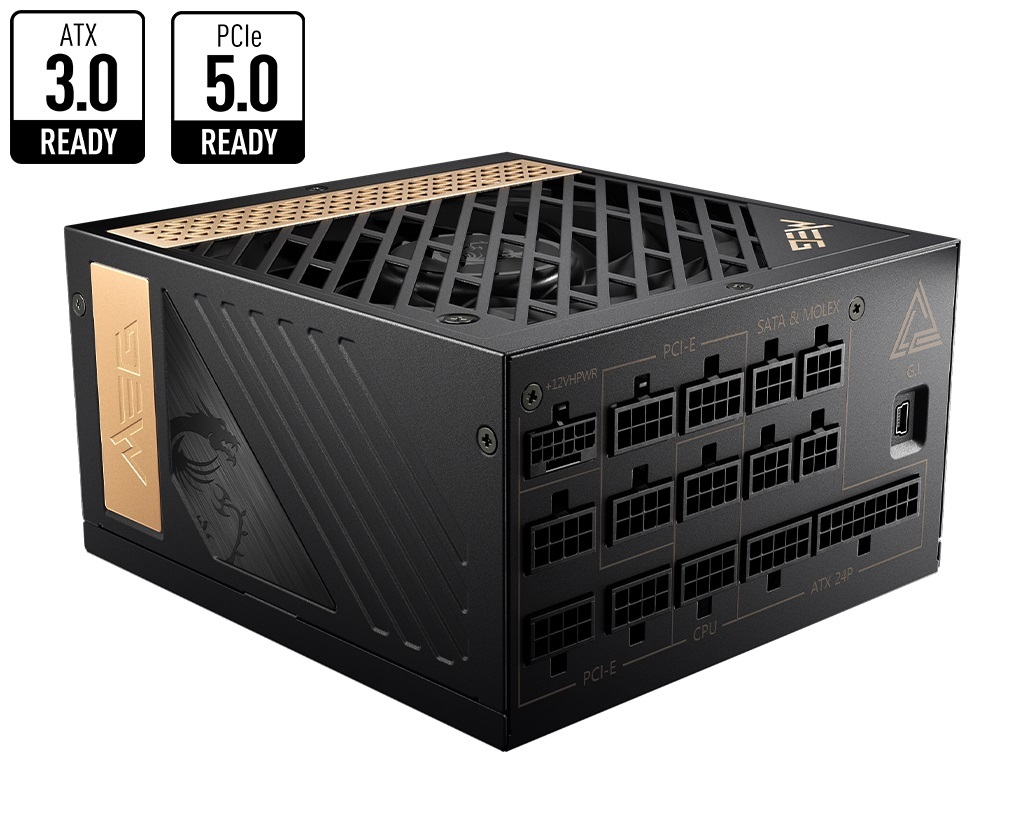

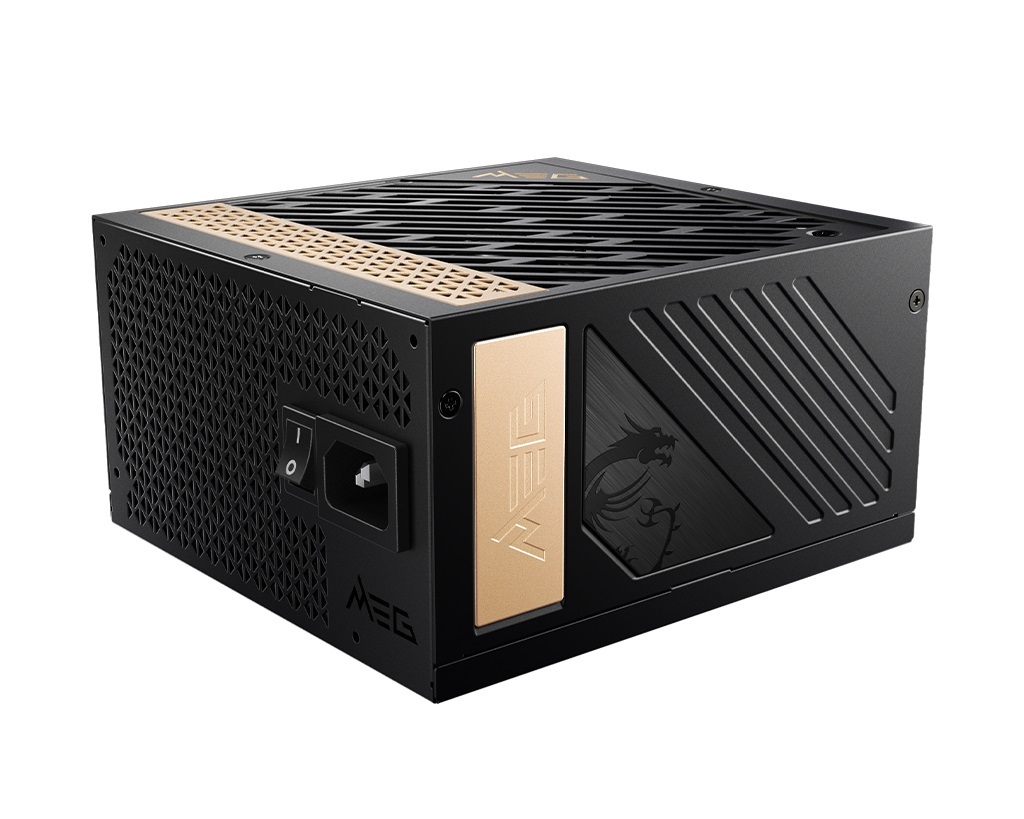

MSI MEG Ai1300P PCIE5 1300W ATX Power Supply Unit 80 PLUS Platinum (up to 92%) Active PFC OCP / OVP / OPP / OTP / SCP / UVP


Supports the NVIDIA next-gen graphics cards

ATX 3.0 fully support

PCIe 5.0 ready, with native 16 pin connector

Software supported sync the MSI center

Full modular design

Sleeve cable equipment

80 PLUS Platinum certified for high efficiency

100% all Japanese 105oC capacitor

Active PFC design

Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

LLC Half Bridge Topology with DC-DC module design


SPECIFICATIONS:


PRODUCT NAME MEG Ai1300P PICE5

FORM FACTOR ATX

RATED WATTAGE 1300W

EFFICIENCY RATING 80 PLUS Platinum (up to 92%)

MODULAR Yes (full modular)

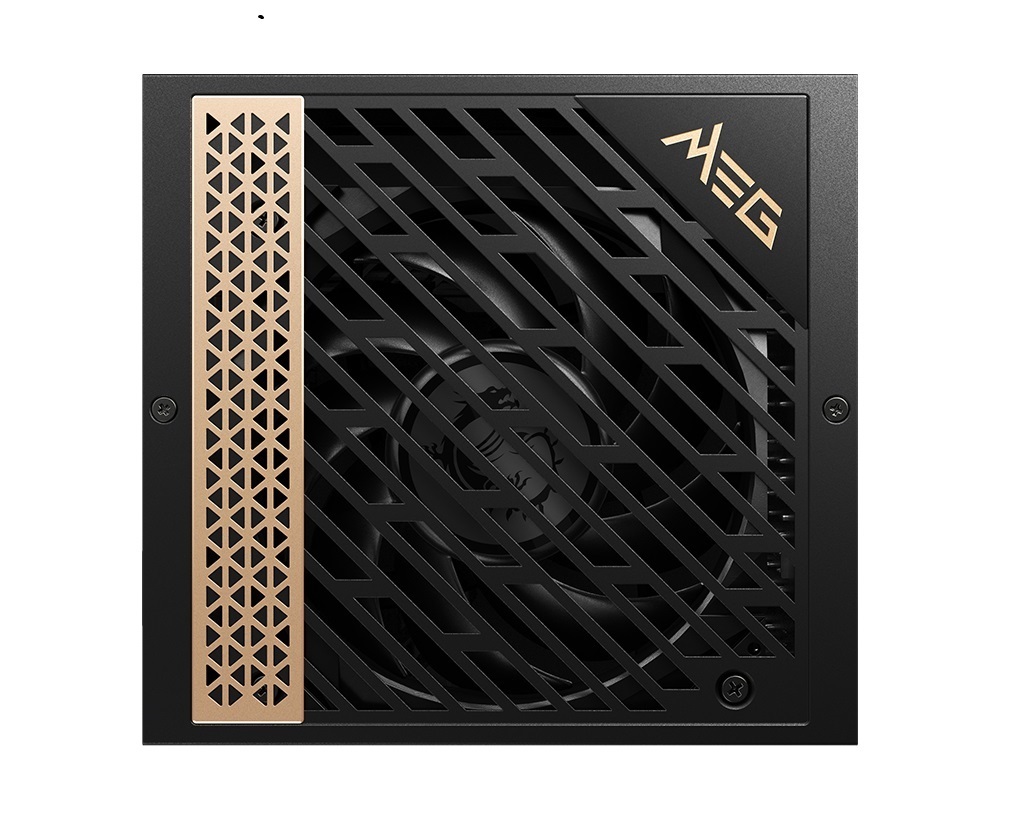

FAN SIZE 120 mm

FAN BEARING Hydro Dynamic Bearing

DIMENSIONS (DXWXH) 160 x 150 x 86 mm

PFC TYPE Active PFC

INPUT VOLTAGE RANGE 100-240~

INPUT FREQUENCY RANGE 50~60 Hz

PROTECTION OCP / OVP / OPP / OTP / SCP / UVP

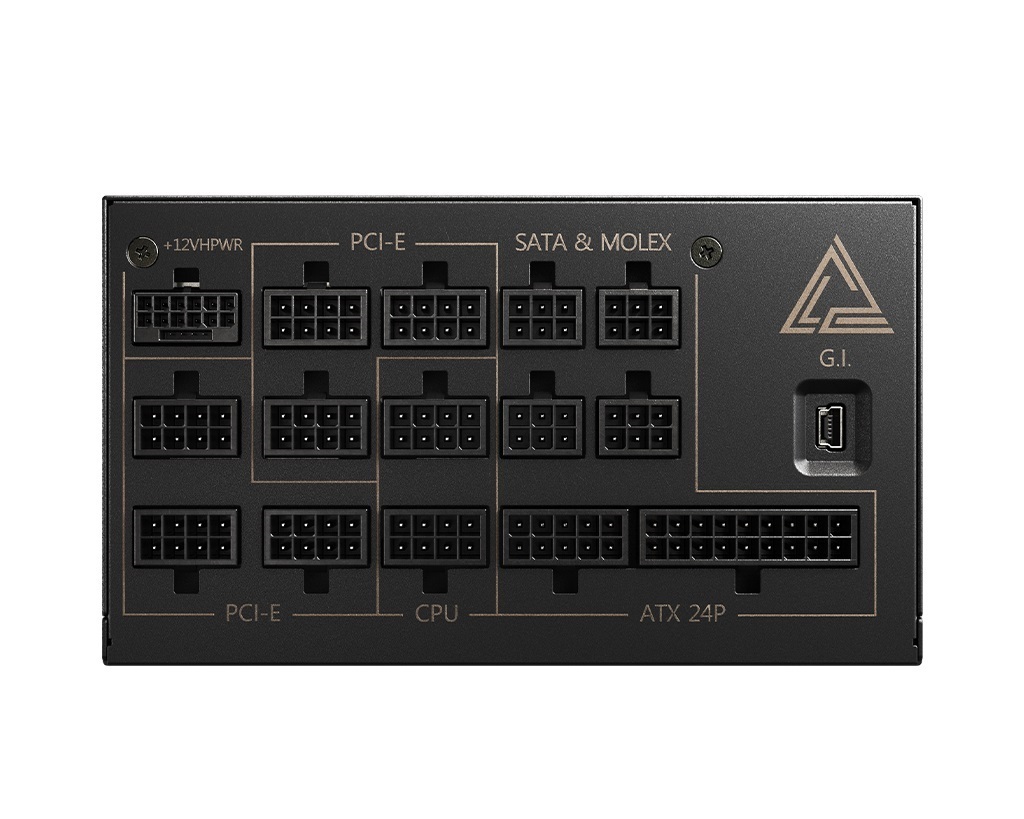

ATX (24 PIN) 1

EPS (8 PIN) 2

PCI-E 5.0 (16 PIN) 1

PCI-E (6+2 PIN) 8

SATA (15 PIN) 16

MOLEX (4 PIN) 4

FDD (4 PIN) 1

Specifications
SKU PSM-MEGAI1300PPCIE5
Barcode # 4719072970260
Brand MSI
Shipping weight 4.8800kg
Shipping width 0.314m
Shipping height 0.262m
Shipping length 0.436m
Assembled length 3.360m
Assembled height 1.620m
Assembled width 2.140m

MSI MEG Ai1300P PCIE5 1300W ATX Power Supply Unit 80 PLUS Platinum (up to 92pct) Active PFC OCP OVP OPP OTP SCP UVP

$632.00

or 4 payments of $158.00 with Learn more

In Stock
