Description

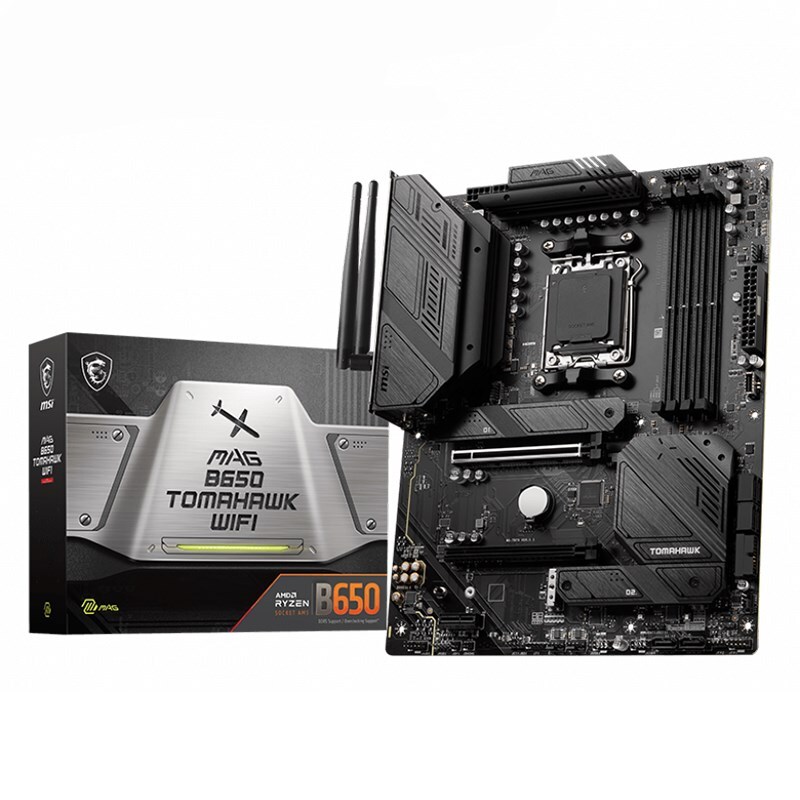

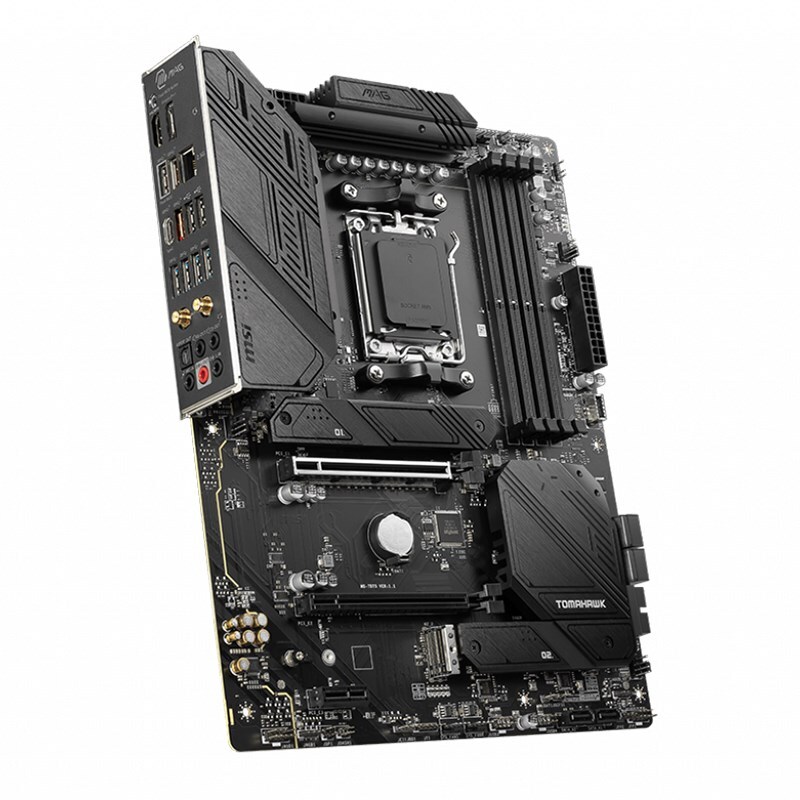

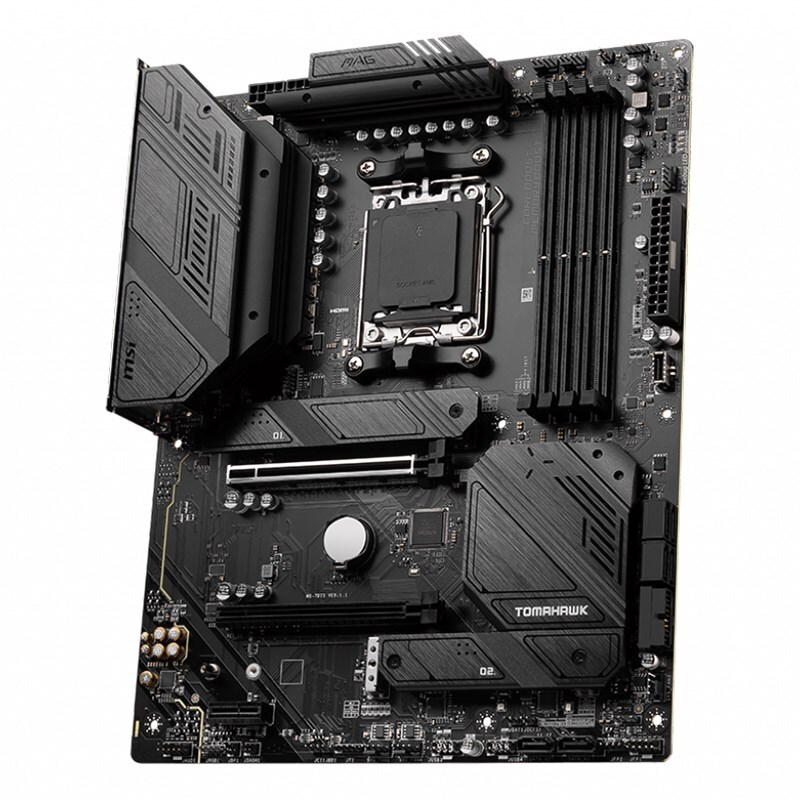

MSI MAG B650 TOMAHAWK WIFI AMD AM5 M-ITX Motherboard, 4x DDR5 ~64GB, 1x PCI-E x16, 3x M.2, 6x SATA, 2x USB2.0, 8x USB 3.2, 1x USB-C


CHIPSET AMD B650

CPU SUPPORT Supports AMD Ryzen„ 7000 Series Desktop Processors

Socket AM5


MEMORY 4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz


ONBOARD GRAPHICS 1x HDMI„

1x DisplayPort

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


EXPANSION SLOT 2x PCI-E x16 slot

Support x16/ x4

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)

PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)


STORAGE 3x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G port

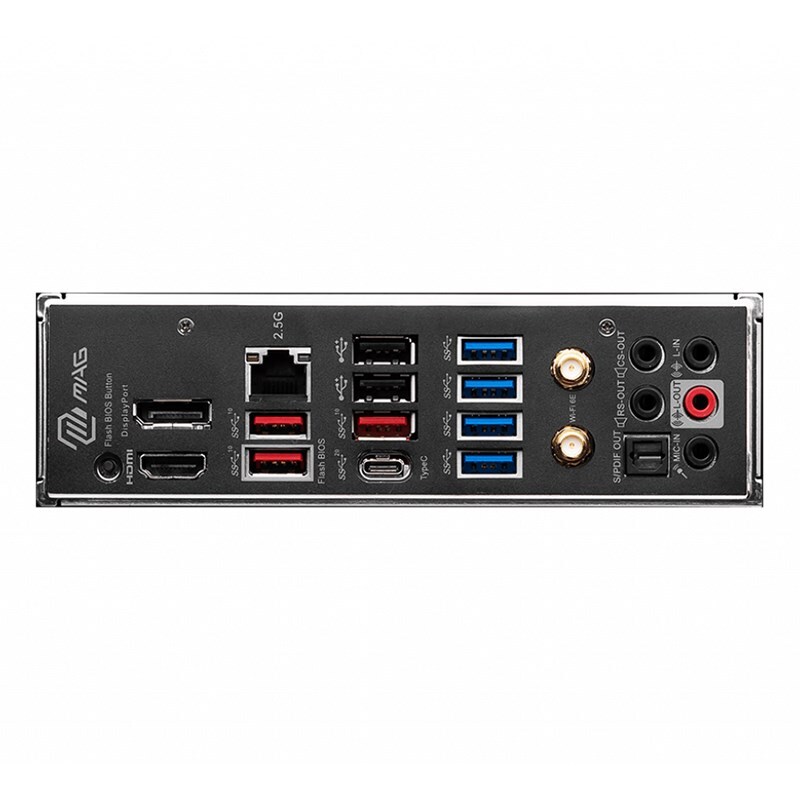

USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)


PCB DIMENSION ATX

243.84mmx304.8mm

Specifications
SKU MBM-B650TOMAHAWKWIFI
Barcode # 4711377010153
Brand MSI
Shipping weight 2.1000kg
Shipping width 0.400m
Shipping height 0.200m
Shipping length 0.343m
Assembled length 2.430m
Assembled height 1.000m
Assembled width 3.000m

MSI MAG B650 TOMAHAWK WIFI AMD AM5 M-ITX Motherboard 4x DDR5 ~64GB 1x PCI-E x16 3x M.2 6x SATA 2x USB2.0 8x USB 3.2 1x USB-C

$403.68
RRP $440.00 save 8%

or 4 payments of $100.92 with Learn more

In Stock
