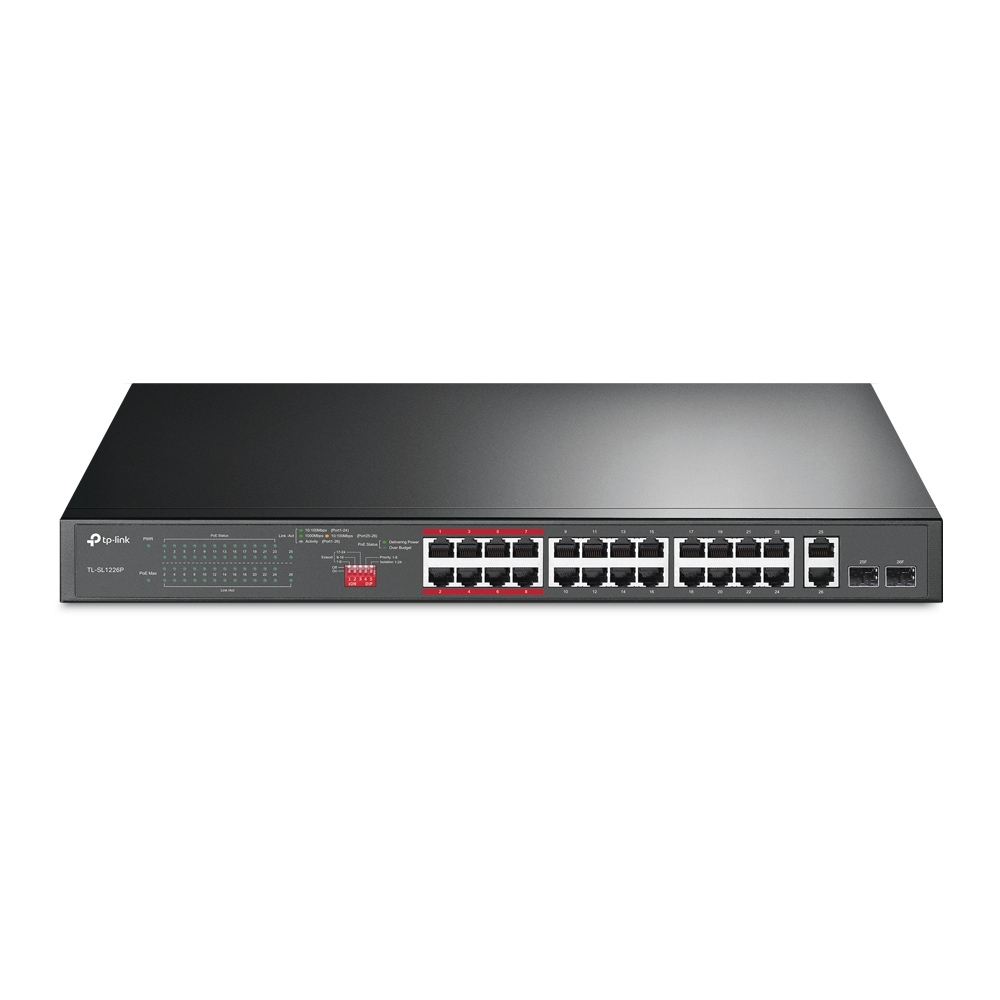

TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

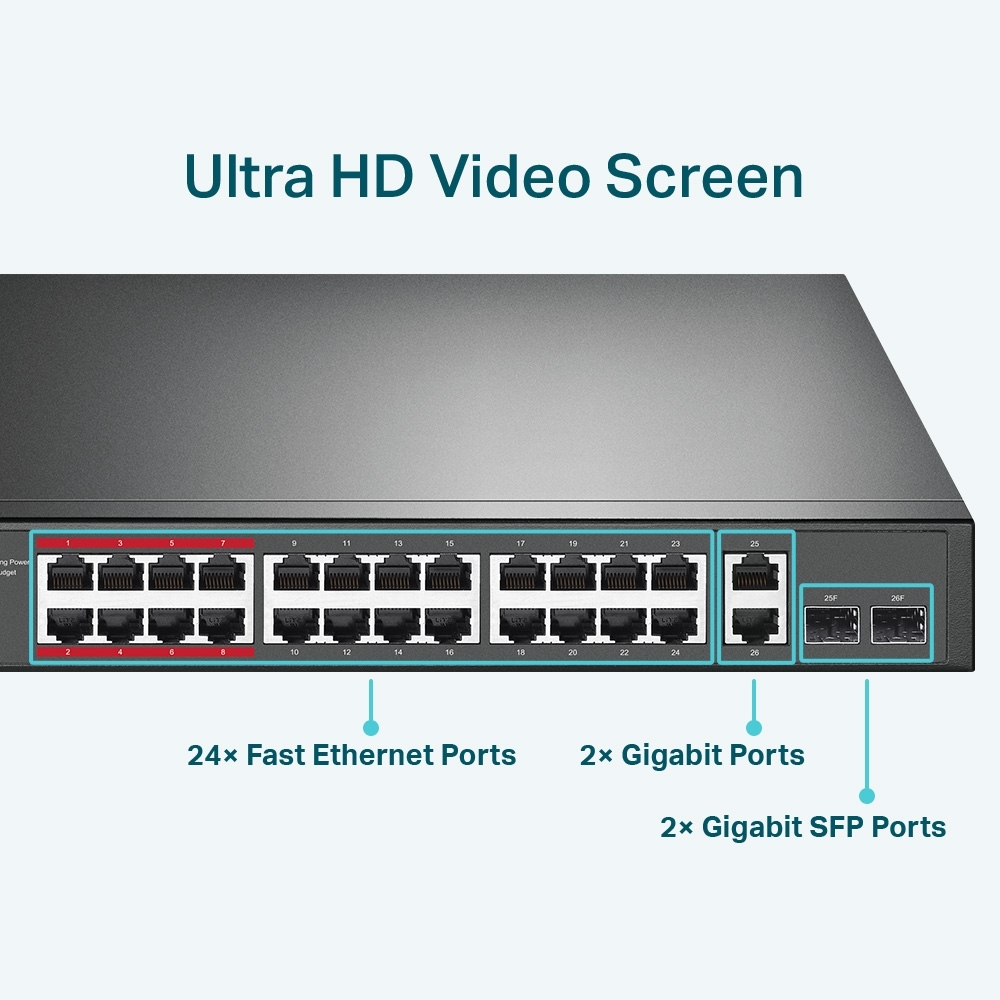

24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

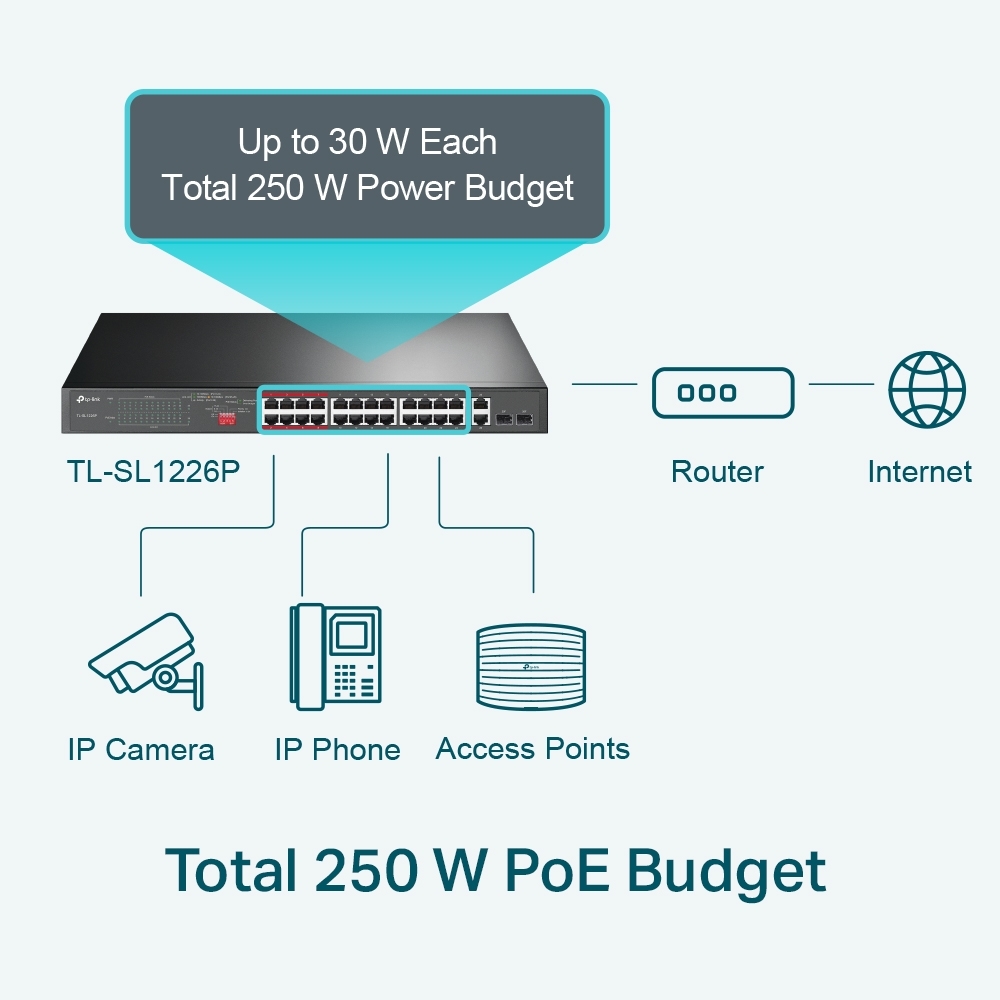

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

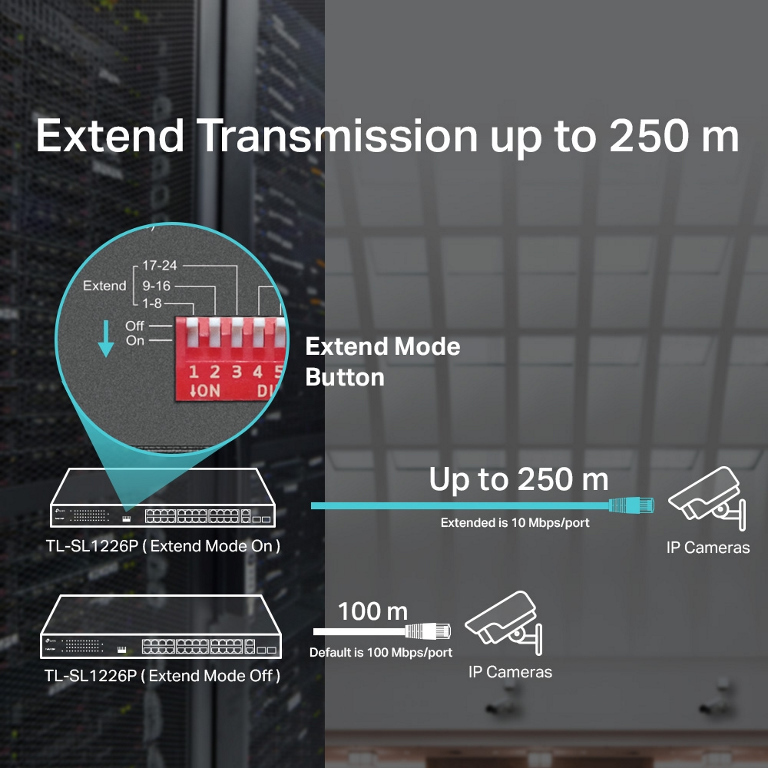

Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

Priority Mode ensures high priority of ports 1“8 to guarantees the quality of sensitive applications like video monitor

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play, with no configuration and installation needed

HARDWARE FEATURES

Interface

24× PoE+ 10/100 Mbps RJ45 Ports

2× 10/100/1000 Mbps RJ45 Ports

2× Combo Gigabit SFP Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity 2 Fans

Physical Security Lock Yes

Power Supply 100-240 VAC, 50/60 Hz

Backup Bandwidth 8.8 Gbps

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Port 1 “ Port 24

PoE Power Budget: 250 W

Mac Address Table 8 K

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption 18.32 W (220/50 Hz. no PD connected)

294 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation 62.47 BTU/h (no PD connected)

1002.54 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3at/af Compliant PDs

Extend Mode (Up to 250m PoE power supply and data transmission)

Priority Mode

Isolation Mode

PD Detection

Intelligent Power Supply

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control
