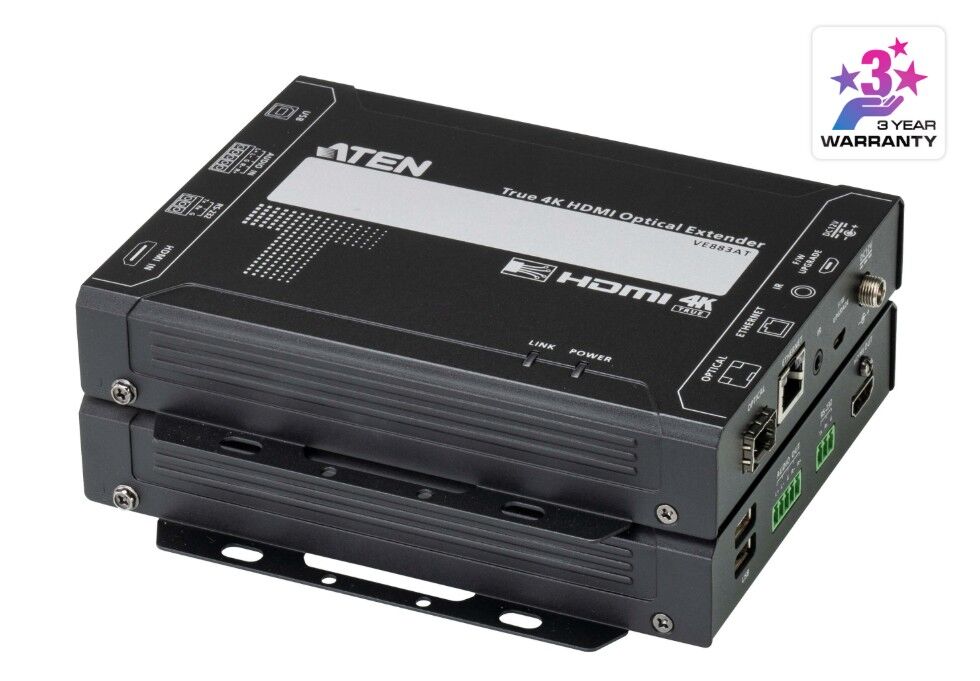

The VE883A is a True 4K HDMI Optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096 x 2160 3840 x 2160 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883AK1) or 10 km (VE883AK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATENs exclusive FarSmooth technology, the VE883A prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

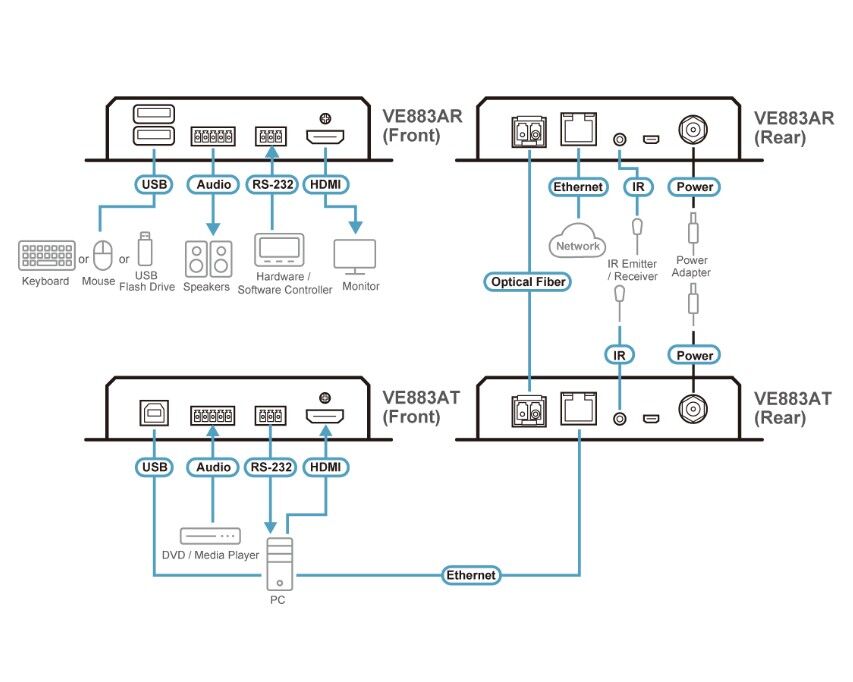

The VE883A comes with interfaces of HDMI input output, analog audio input output, USB 2.0, IR, RS-232, and Gigabit Ethernet. Connectivity with USB peripherals is expanded thanks to the VE883As dual USB Type-A ports. For point-to-point extension, pluggable SFP modules are included to serve the purpose of optical connection. Plus, the VE883A is compatible with ATENs VM7584 VM8584 Optical Input Output Board installed in ATENs modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.

Note: VE883A VE883AT VE883AR is not backward compatible with VE883 VE883T VE883R.

Package Contents

1x VE883AT True 4K HDMI Optical Transmitter

1x VE883AR True 4K HDMI Optical Receiver

2x power adapters and power cords

2x 3-pole terminal blocks

2x 5-pole terminal blocks

1x IR receiver

1x IR emitter

1x USB Type-B to USB Type-A cable

2x HDMI LockPros

2x SFP modules

1x user instructions
