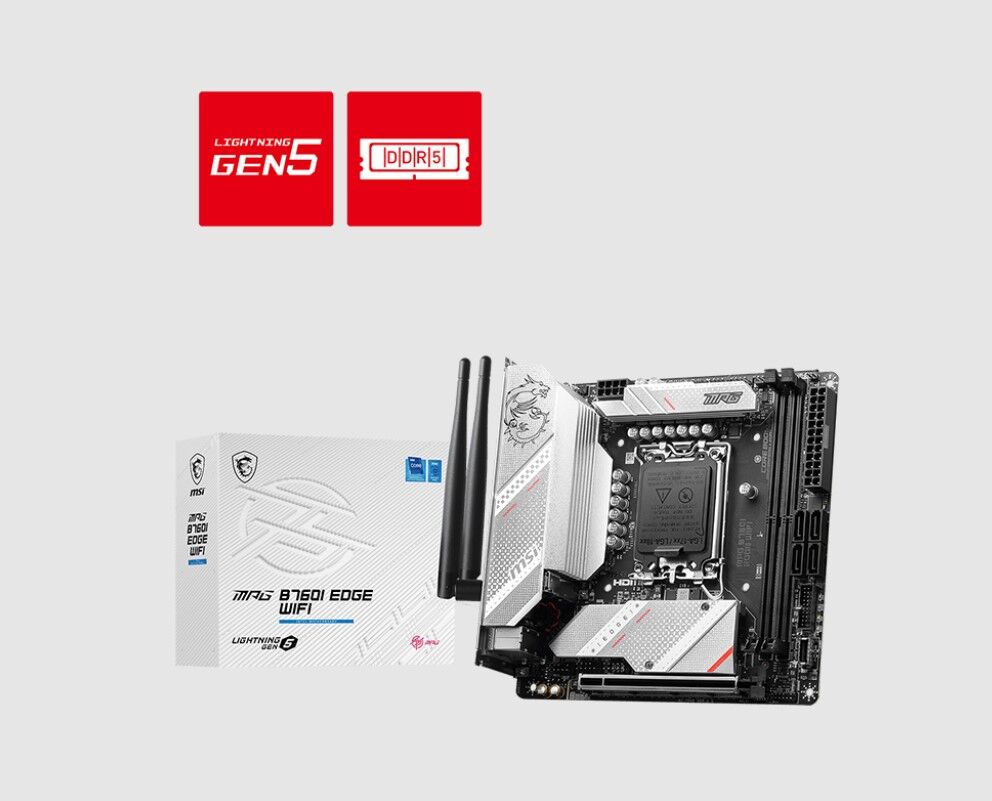

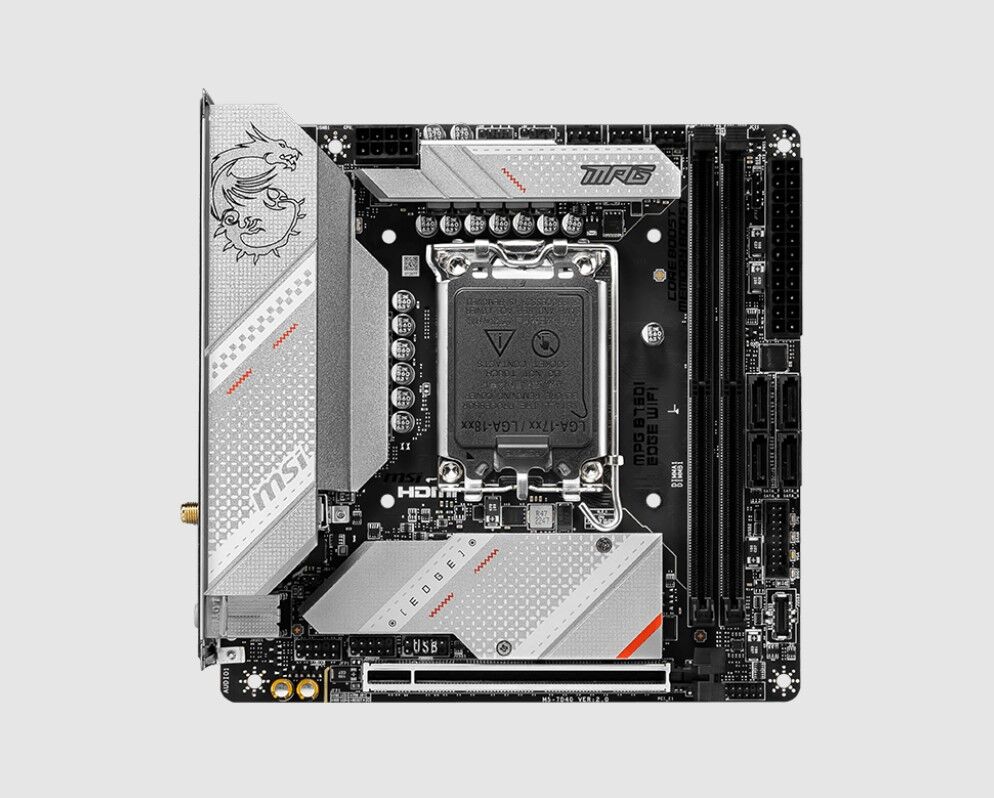

MSI MPG B760I EDGE WIFI Motherboard, 2x DDR5~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 4x USB 2.0, 2x USB C

SPECIFICATIONS:

CHIPSET INTEL B760

CPU SUPPORT Support Intel Core„ 14th 13th 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700

MEMORY 2x DDR5, Maximum Memory Capacity 128GB

STORAGE 2x M.2, 4x SATA 6G

ONBOARD GRAPHICS 1x HDMI„ Support HDMI„ 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz

SLOT 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

USB 2x USB 2.0 (Rear)

2x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

WIRELESS LAN BLUETOOTH Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX RX, 2.4GHz 5GHz 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a b g n ac ax

Supports Bluetooth 5.3, FIPS, FISMA

INTERNAL IO 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)
