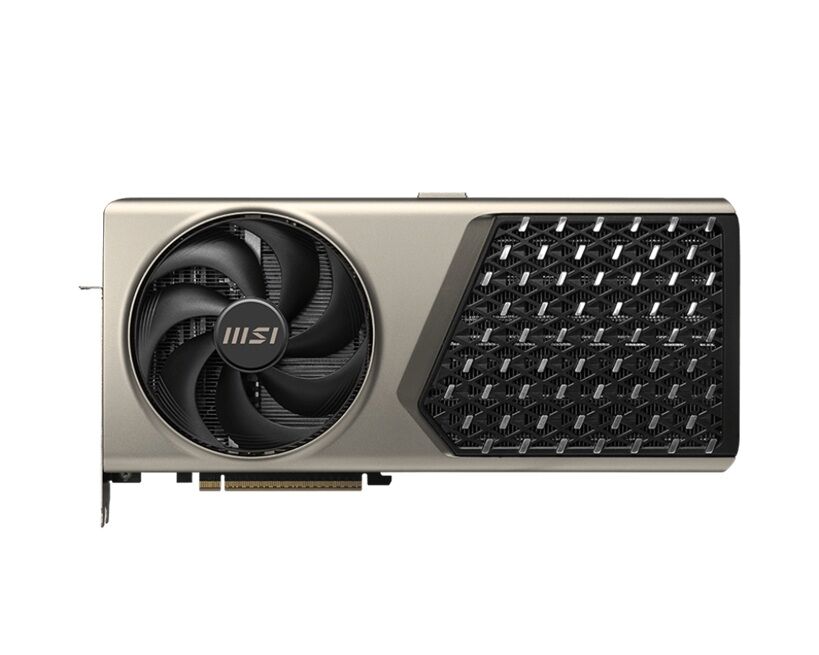

MSI nVidia GeForce RTX 5070 Ti 16G EXPERT OC, PCI Express Gen 5, Boost: 2482 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI„ x 1

SPECIFICATIONS

Marketing Name GeForce RTX„ 5070 Ti 16G INSPIRE 3X OC

Model Name G507T-16I3C

Graphics Processing Unit NVIDIA GeForce RTX„ 5070 Ti

Interface PCI ExpressGen 5

Core Clocks Extreme Performance: 2497 MHz (MSI Center)

Boost: 2482 MHz

CUDA CORES 8960 Units

Memory Speed 28 Gbps

Memory 16GB GDDR7

Memory Bus 256-bit

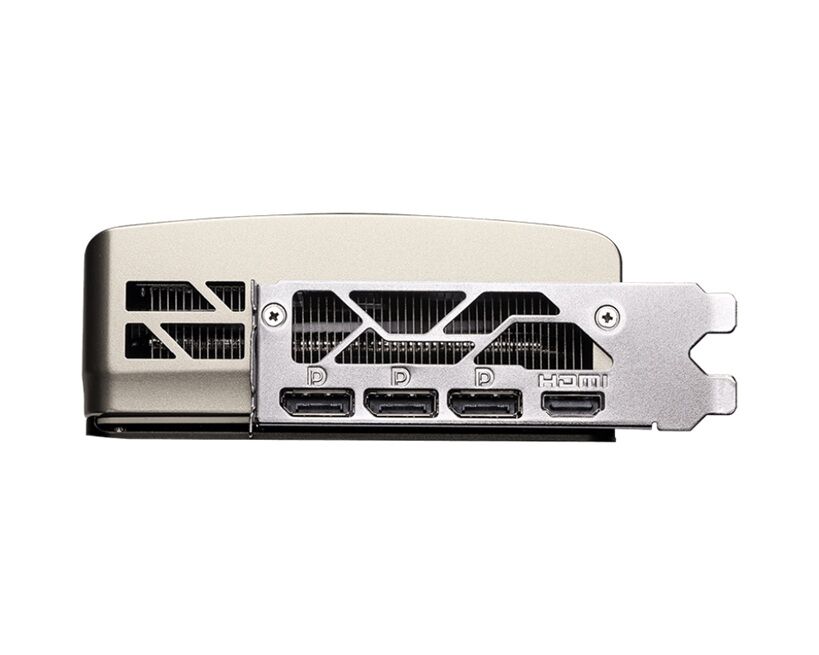

Output DisplayPort x 3 (v2.1b)

HDMI„ x 1 (As specified in HDMI„ 2.1b: up

to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support Y

Power consumption 300W

Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU 750W

Card Dimension (mm) 288 x 112 x 50 mm

Weight (Card Package) 904 g 1360 g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320

FEATURES

Triple Fan

Three fans and a huge heatsink ensure a cool and quiet

experience for you.

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed

for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.

Core Pipes

Core Pipes feature a square design to maximize contact with the

GPU baseplate for optimal thermal management.

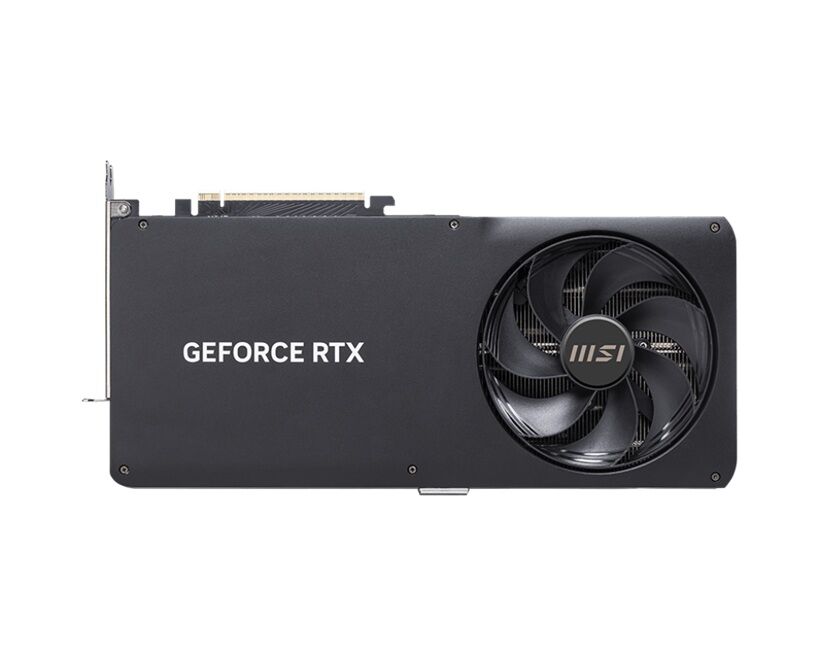

Metal Backplate

A sturdy metal backplate strengthens the graphics card while the

airflow vent design reduces excess heat.

Zero Frozr

The fans completely stop when temperatures are relatively low,

eliminating all noise.

Air Antegrade Fin

Fins with a V-shaped cutout are located at the airflow

passthrough to improve flow efficiency.

Wave Curved 3.0

Additional efficiency is gained by adjusting the size of the wave

edges under the fan motor and other spots where there is less

airflow.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and

optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used

graphics card overclocking software in the world.
