Description

Output

Output power capacity:330 Watts / 550 VA

Max Configurable Power (Watts): 330 Watts / 550 VA

Nominal Output Voltage: 230V

Output Frequency (sync to mains): 47 - 63 Hz

Output Frequency (not synced):50Hz +/- 0.1% for 50Hz nominal

Other Output Voltages: 220

Topology: Standby

Waveform type:Stepped approximation to a sinewave

Output Connections: —¦ (4) Australian (selector_surgetitle)

—¦ (4) Australian (Battery Backup)


Output Voltage Tolerance: +/- 5% static and 100% load step

Transfer Time: 6ms typical: 10ms maximum


Input

Nominal Input Voltage:230V

Input frequency: 50/60 Hz

Input Connections: Australian/Chinese

Cord Length: 1.83 meters

Maximum Input Current: 10.0 A


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 16 hour(s)

Replacement Battery: APCRBC110

Battery Volt-Amp-Hour Capacity: 86

Runtime: View Runtime Graph

Efficiency: View Efficiency Graph


Communications & Management

Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators


Surge Protection and Filtering

Surge energy rating: 310 Joules

Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector)

Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPCBE550-AZ
Barcode # 731304275411
Brand APC
Shipping weight 7.1200kg
Shipping width 0.386m
Shipping height 0.230m
Shipping length 0.502m
Assembled length 4.020m
Assembled height 1.300m
Assembled width 2.860m

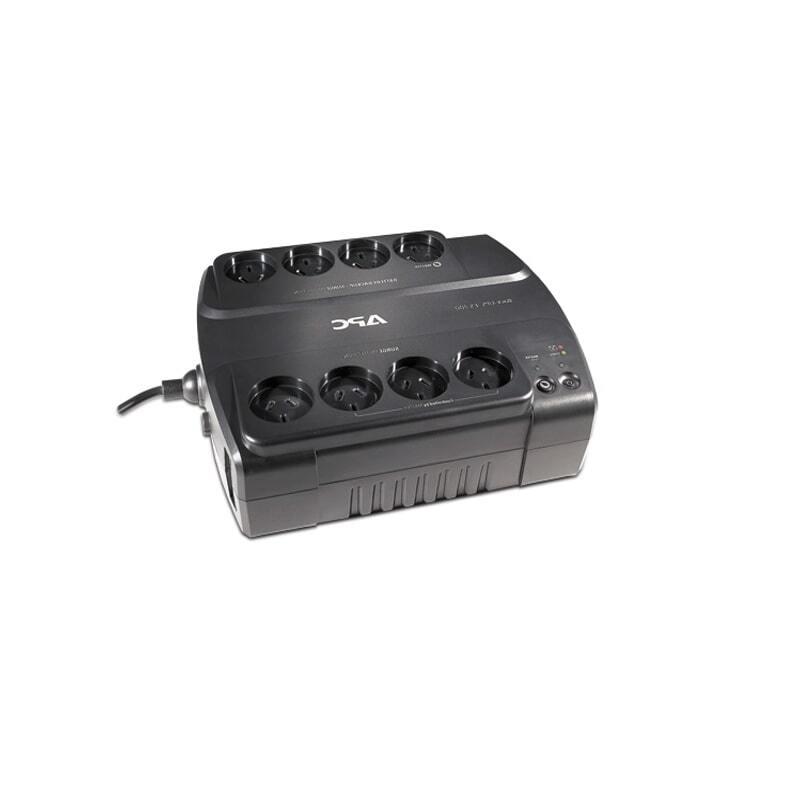

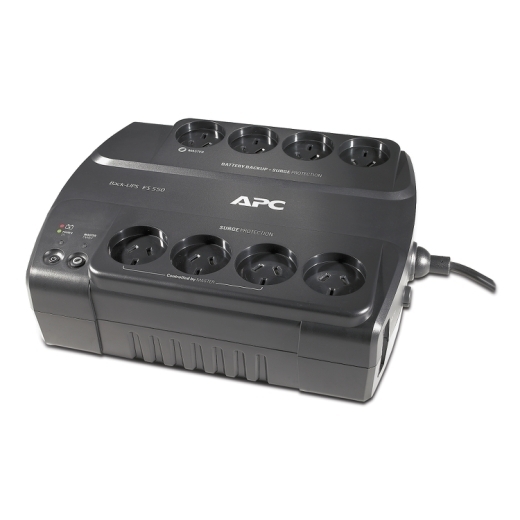

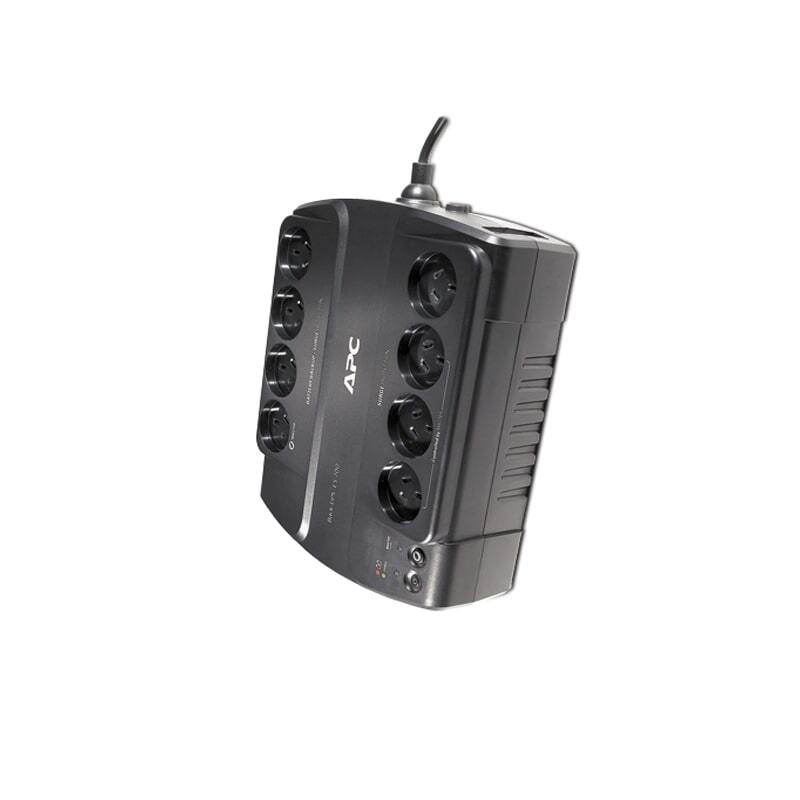

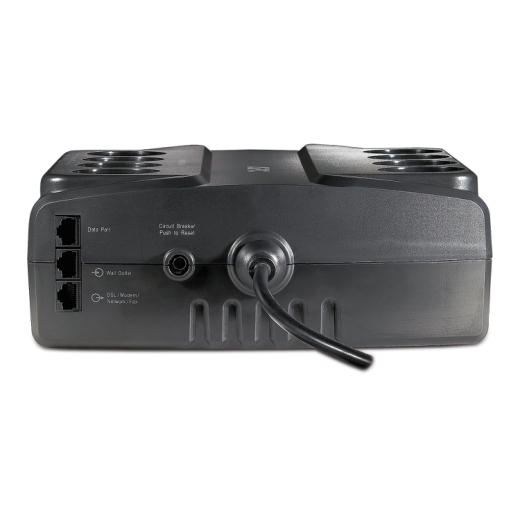

APC Back-UPS 550VA 330W Power-Saving UPS Desk Top 230V 10A Input 8x Aus Outlets Lead Acid Battery User Replaceable Battery

$178.64
RRP $241.99 save 26%

or 4 payments of $44.66 with Learn more

UPPS-G750
In Stock

Product Information

SKU:

UPAPCBE550-AZ

Brand:

APC

Barcode #:

731304275411

Shipping Weigth:

7.1200kg

Warranty:

24
