TP-Link TL-WA801N 300Mbps Wireless N Access Point

AC1200 Dual-Band Wi-Fi “ 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

Flexible Deployment “ Supports Passive PoE to carry electrical power and data simultaneously.

Multiple Modes “ Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

MU-MIMO Technology “ Simultaneously transfers data to multiple devices for 2× faster performance.

Boosted Coverage “ Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

Captive Portal “ Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES

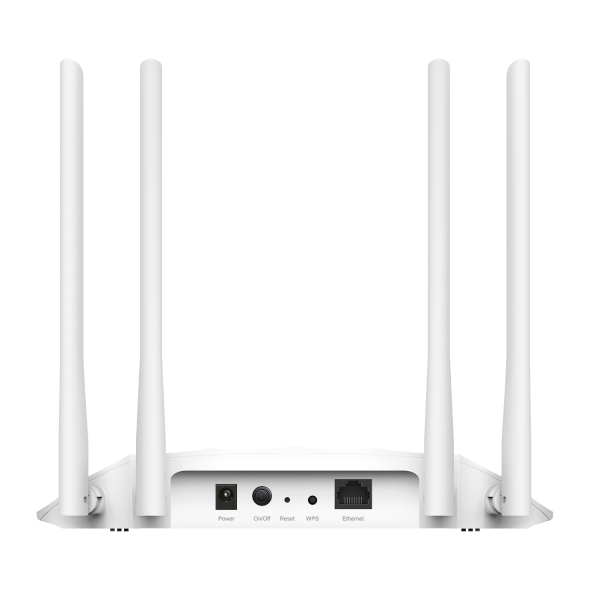

Interface 1× 10/100/1000 Mbps Ethernet Port

(Supports Passive PoE)

Button Power On/Off Button, WPS Button, Reset Button

External Power Supply 12V/1.5A

Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H ) 225×145.5×37 in (400×255×72 mm)

Antenna Type 4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency 2.4 GHz and 5 GHz

Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity 5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)

FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes Access Point, Range Extender, Client, Multi-SSID

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP Server, DHCP Client List

Quality of Service WMM

Advanced Functions Captive Portal

OTHERS

Certification CE, FCC, RoHS

Package Contents Wireless Access
