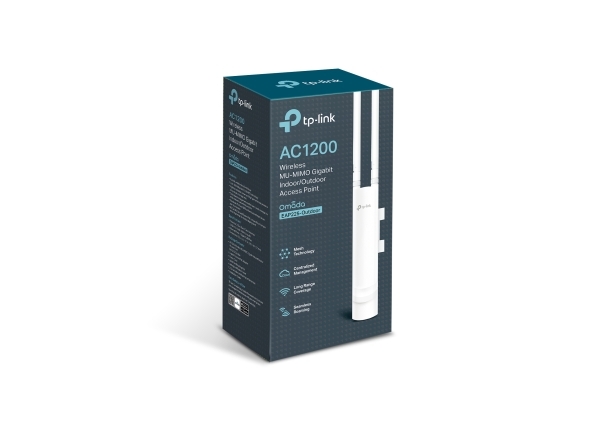

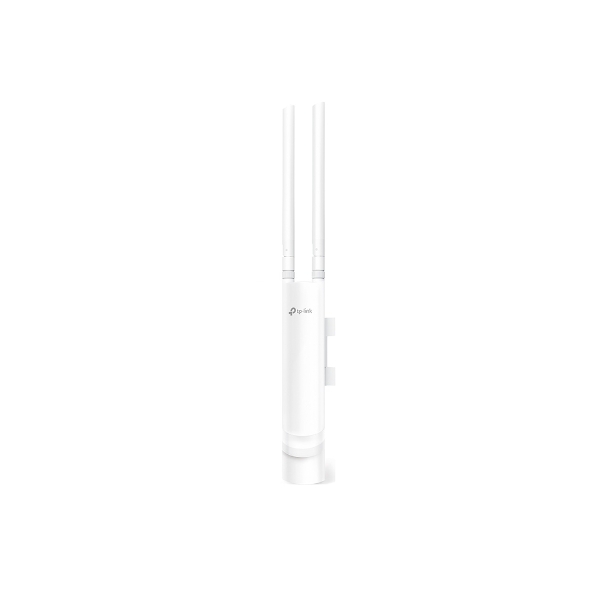

TP-Link EAP225-Outdoor Omada AC1200 1200Mbps Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Passive PoE Weatherproof High Gain Long Range antena

Durable, weatherproof enclosure for outdoor Wi-Fi applications

Up to 1200Mbps with 2×2 MIMO technology

High transmission power and high gain antennas provide a long-range coverage area

Free Omada Controller software enables administrators easily manage hundreds of EAPs

Captive portal provides a convenient method for guest authentication

Facebook Wi-Fi and SMS anthentication help to boost your business

802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

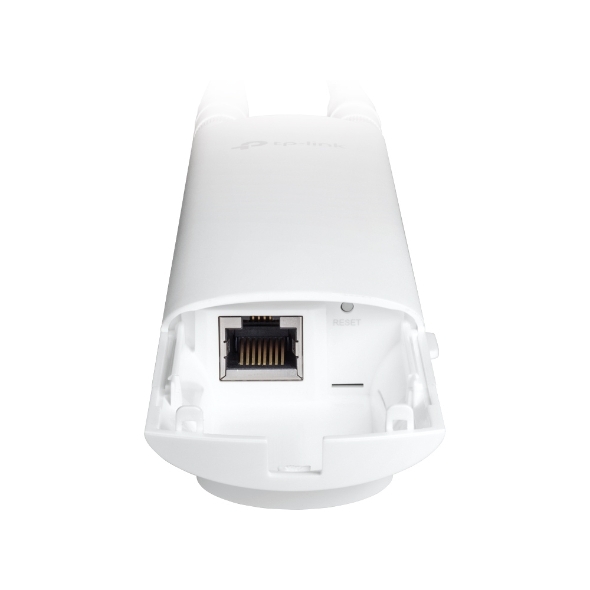

Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)

Button Reset

Power Supply 802.3af PoE and 24 Passive PoE(PoE Adapter Included)

Power Consumption 10.5W

Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi

Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)

Mounting Pole/Wall Mounting (Kits included)

Hardware Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/b/g/n/ac

Frequency 2.4GHz, 5GHz

Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 5.5, 11Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

MU-MIMO

Airtime Fairness

Beamforming

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Det
