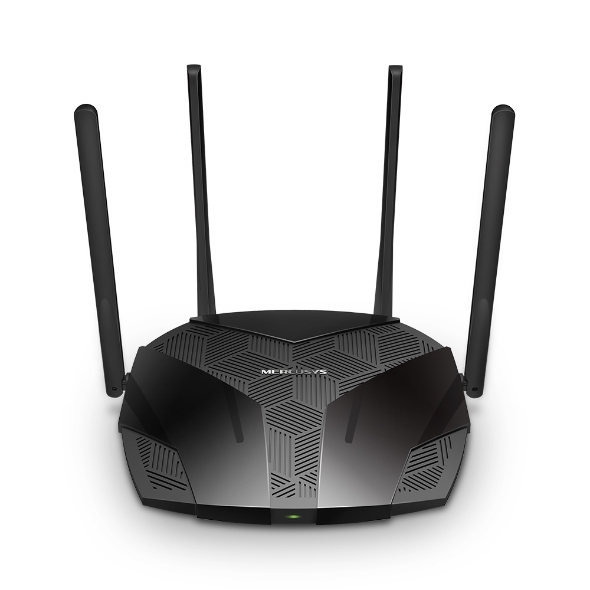

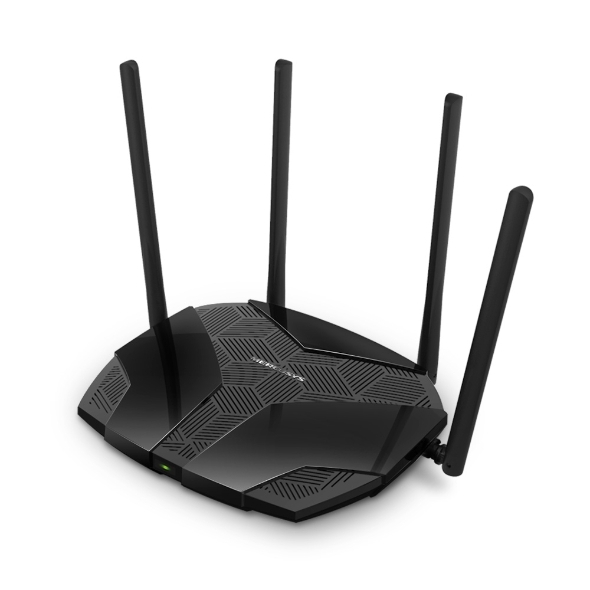

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router, Up to 1.8Gbps, OFDMA, MU-MIMO, WPA3

MR70X

AX1800 Dual-Band WiFi 6 Router

Next-Gen WiFi 6 Speeds “ Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)

4× More Capacity “ OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency

Broader, Stronger Coverage “ 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Overall Security Protection “ The latest WPA3 provides improved WiFi security

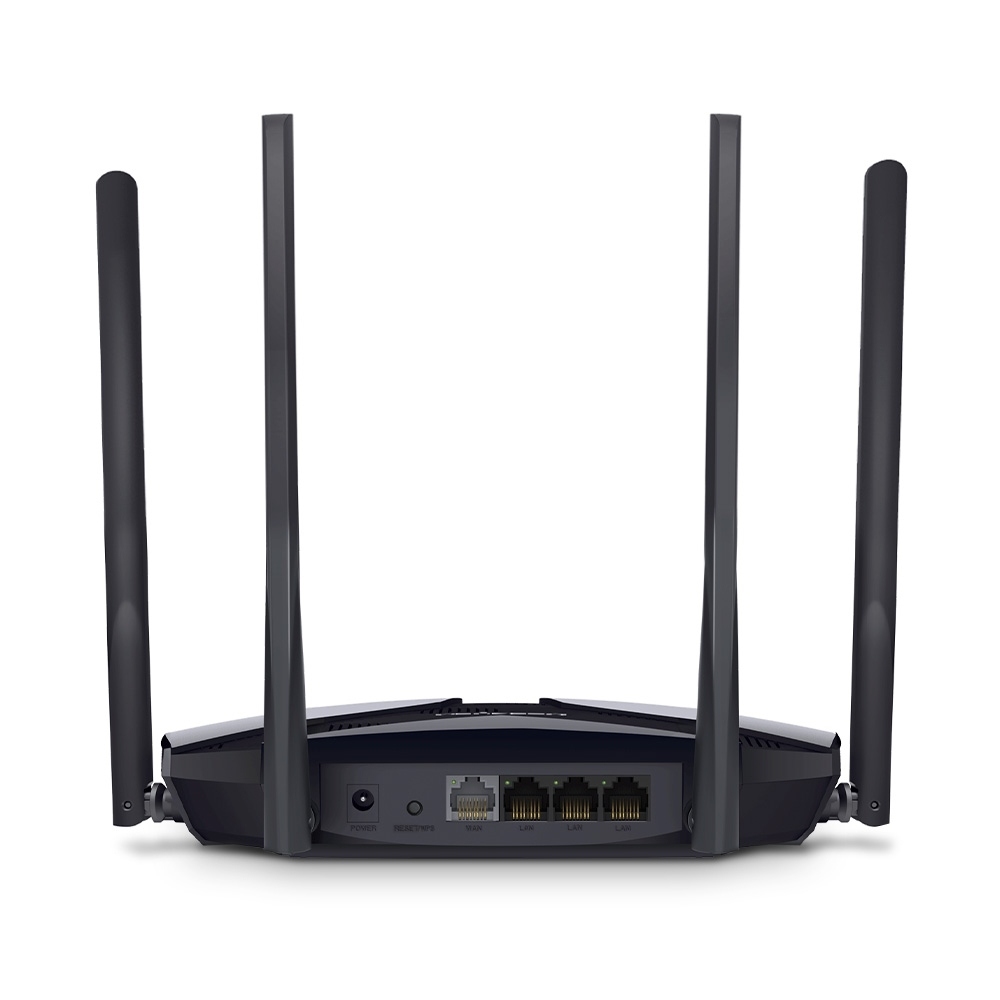

Gigabit Wired Connections “ Make full use of your internet access and transfer data at dizzying speeds for peak performance

Eco-Friendly Power Saving “ Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

Less WiFi Interference “ Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color

Smart Connect “ Intelligently chooses the best available band for each device

Access Point Mode “ Extends a wired network and makes it wireless

WirelessWireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate

1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-77dBm

11a 6Mbps:-94dBm

11a 54Mbps:-76dBm

11ac VHT20 MCS8:-71dBm

11ac VHT40 MCS8:-68dBm

11ac VHT80 MCS8:-65dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK/ WPA3 wireless encryption

Wireless Functions

Enable/Disable Wireless Radio, WMM

SoftwareWAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI
