POSTAGE

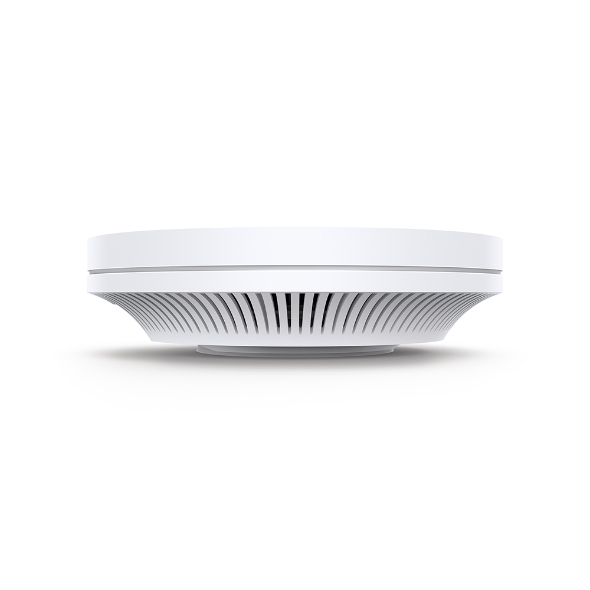

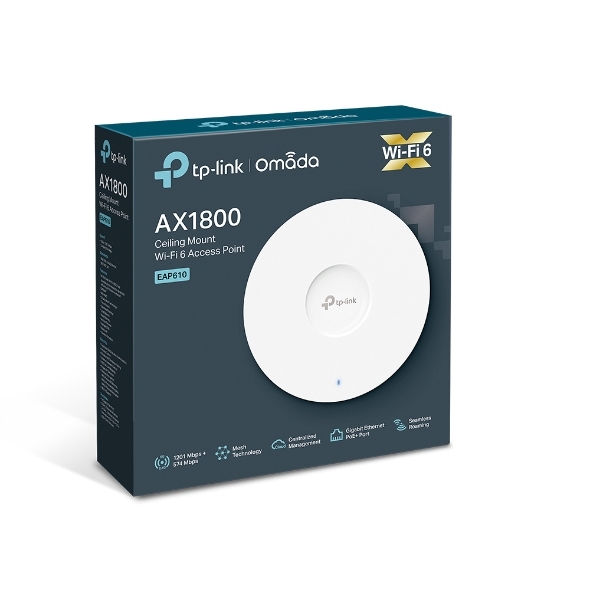

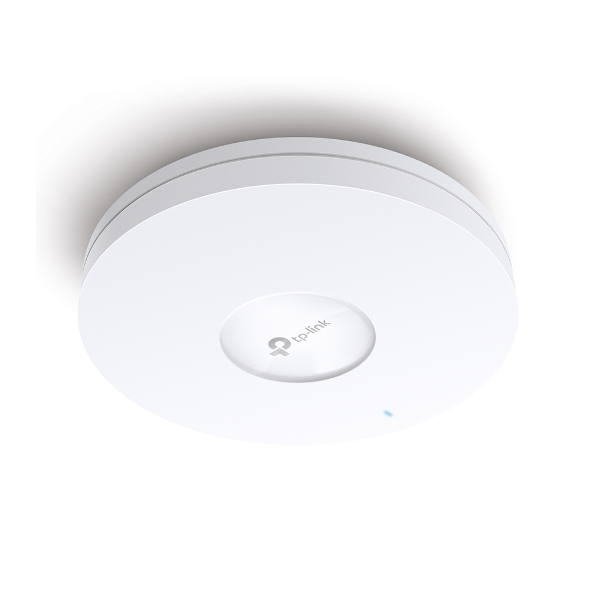

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralised Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ Powered: Supports both Powers over Ethernet (802.3at) and DC power supply for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE
12 V / 1 A DC
Power Consumption EU: 12.8 W (For PoE); 10.8 W (for DC)
US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi

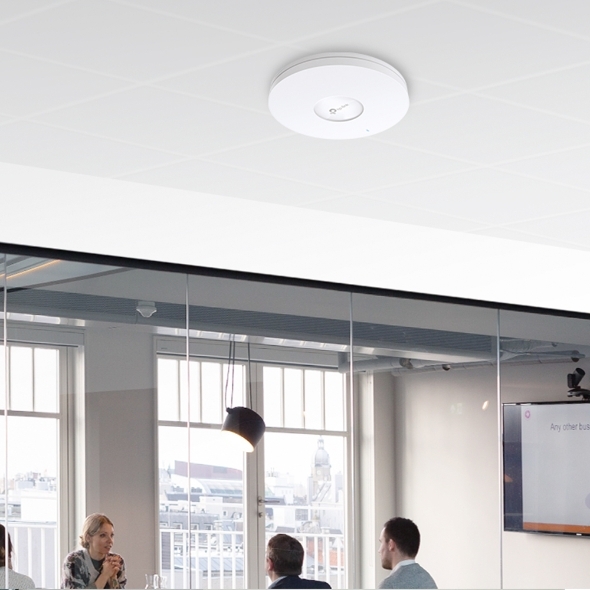

Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
MANAGEMENT
Omada App Yes
Centralized Management Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
SKU | NWTL-EAP610 |
Barcode # | 4897098687772 |
Brand | TP-LINK |
Shipping weight | 1.7800kg |
Shipping width | 0.408m |
Shipping height | 0.182m |
Shipping length | 0.404m |
Assembled length | 3.040m |
Assembled height | 0.820m |
Assembled width | 3.080m |
TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point WiFi 6 1201 Mbps 5GHz Omada Centralised Cloud PoE Powered
