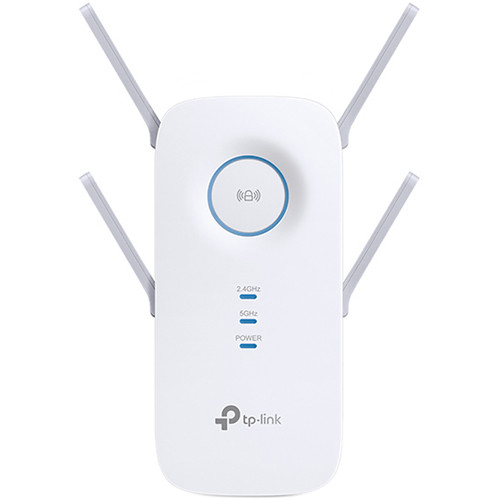

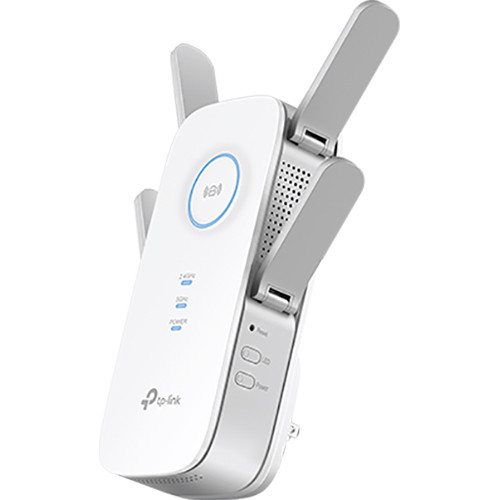

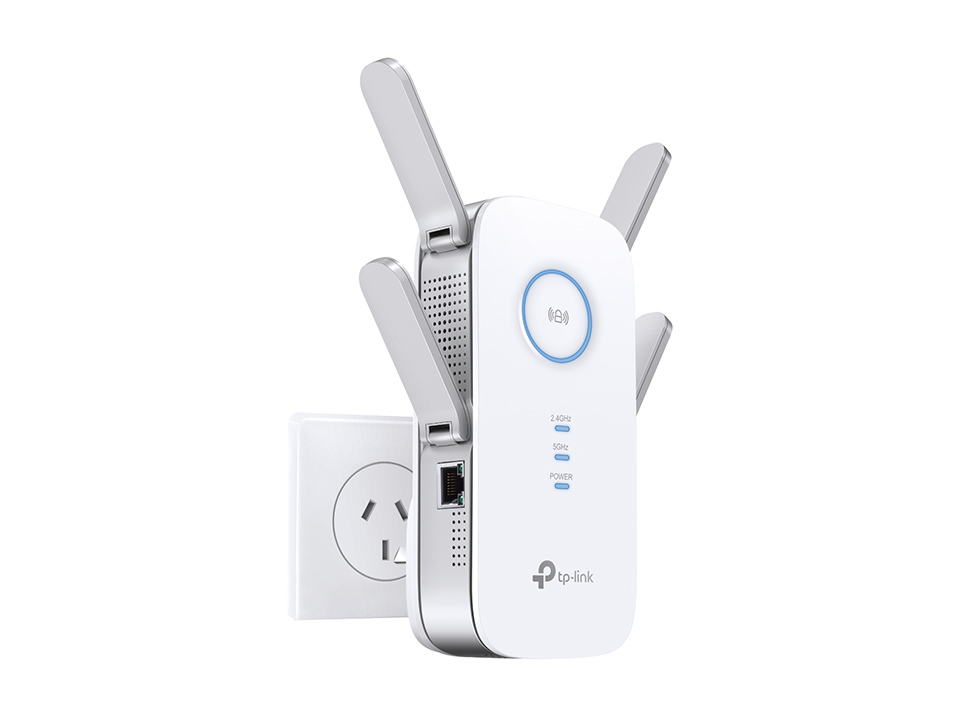

TP-Link RE650 AC2600 2600Mbps Wi-Fi Range Extender 800Mbps@2.4GHz 1733Mbps@5GHz 1x1Gbps LAN 4xAntennas 4×4 MU-MIMO Beamforming Access Point Mode

Superior Extended Range “ Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.

4-Stream for AC2600 Dual Band Wi-Fi “ Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz

4×4 MU-MIMO “ Simultaneously transfers data to multiple devices for 4x faster performance

Beamforming Technology “ Send targeted Wi-Fi signal to individual devices for stronger connections

Gigabit Ethernet Port “ Provide faster wired connections to smart TVs, computers and gaming consoles

Intelligent Signal Light “ Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

AP Mode “ create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

TP-LINK Tether App “ Easily access and manage your network using any iOS or Android mobile device

Ultimate Compatibility “ Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES

Plug Type EU, UK, US

Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface 1 x 10/100/1000M Ethernet Port (RJ45)

Button WPS Button, Reset Button, LED Button, Power Button

Power Consumption 12W（max power consumption）

Antenna 4 x external

Dimensions ( W x D x H ) 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)

WIRELESS FEATURES

Frequency 2.4GHz & 5GHz(11ac)

Signal Rate 5GHz:Up to 1733Mbps

2.4GHz:Up to 800Mpbs

Reception Sensitivity 5GHz：

11a 6Mbps:-96dBm@10% PER

11a 54Mbps: -78dBm@10% PER

11ac HT20 mcs8: -69dBm@10% PER

11ac HT40 mcs9: -66dBm@10% PER

11ac HT80 mcs9: -63dBm@10% PER

2.4GHz

11g 54M: -79dBm@10% PER

11n HT20 mcs7: -77dBm@10% PER

11n HT40 mcs7: -74dBm@10% PER

Wireless Modes Range Extender/Access Point

Wireless Functions Wireless Statistic

Concurrent Mode boost both 2.4G/5G WiFi band

Access Control

LED Control

Domain Login Function

Wireless
