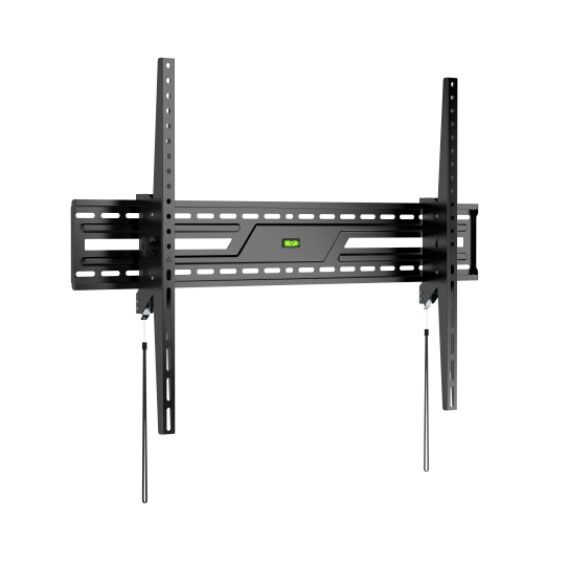

Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount (new)

FEATURES

—Heavy-Duty Steel Construction: provides extra strength and durability

—Open Architecture: provides increased ventilation and easier access to wires

—Easy-Grip Knobs: for quick tilt and lock

—Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

—Integrated Bubble Level: assures alignment

SPECIFICATIONS

Product Category: Tilt TV Wall Mount

Rank: Standard

Material: Steel

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059 ft cold-rolled sheet,Wall Plate THK=0.059 ft cold-rolled sheet)

Surface Finish: Powder Coating

Color: Fine Texture Black

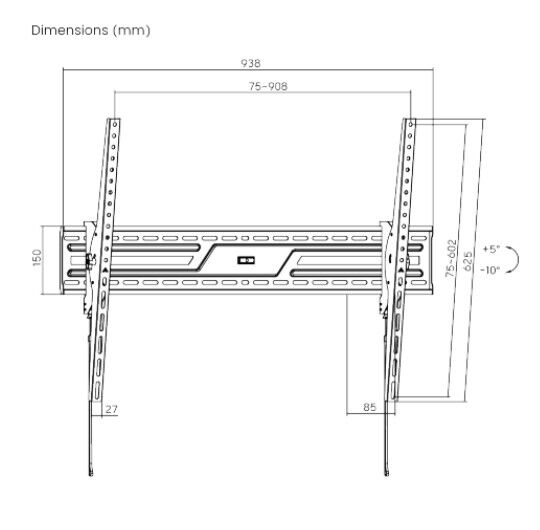

Dimensions: 85x938x625mm (3.3 ftx36.9 ftx24.6 ft)

Fit Screen Size: 43 ft-100 ft

Fit Curved TV: Yes

Mounting Hole Pattern: VESA Universal

VESA Compatible: 75x75,100x100,100x200,200x100,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,500x300,400x400,600x300,500x400,400x600,600x400,700x400,800x400,850x400,600x600,800x500,800x600,900x600

Max. Mounting Hole: 908x602

Weight Capacity: 75kg (165lbs)

Strength Tested: 4 Times Approved

Profile: 85mm (3.3 ft)

Tilt Range: 5 degree~-10 degree

Screen Freely Tilting: No

Installation: Solid Wall,Double Stud(406mm 600mm)

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

AV Component Shelf: No

Direction Indicator: Yes

Cable Management: No

Anti-theft: No

Bubble Level: Built-in Bubble Level (Integrated on Wall Plate VESA Panel)

Accessory Kit Package: Normal Ziplock Polybag,Compartment Polybag

Silk Screen: Can be silkscreen printed
