Description

As a complete end-to-end solution, the VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096 x 2160 3840 x 2160 30 Hz (4 : 4 : 4) up to 40 m via a Cat 6 cable.Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces.Crystal-clear video presentation is guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers. Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e 6 cable.


VE1821R VE1821T

Video Output 1 x HDMI Type A Female (Black) 100 Ω Max. Distance 3 m

Video

Max. Data Rate 10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock 340 MHz

Compliance HDMI (3D, Deep Color, 4K)HDCP1.4 Compatible

Max. Resolutions Distance Up to 4K 30m (Cat5e), 40m (Cat 6 ATEN 2L-2910)

4K supported:4096 x 2160 3840 x 2160 30Hz (4:4:4)

Audio

1 x HDMI Type A Female (Black)

IR Channel 1 x Mini Stereo Jack Female (Black) Single way bypass channel from receiver to transmitter


Connectors

Unit To Unit 1 x RJ-45 Female


Environmental

Operating Temperature 0 - 40 degreeC.

Storage Temperature -20 - 60 degreeC

Humidity 20 - 90pct RH, Non-Condensing


Physical Properties

Housing Metal

Specifications
SKU KVA-VE1821
Barcode # 4710469342790
Brand Aten
Shipping weight 0.1200kg
Shipping width 0.168m
Shipping height 0.117m
Shipping length 0.180m

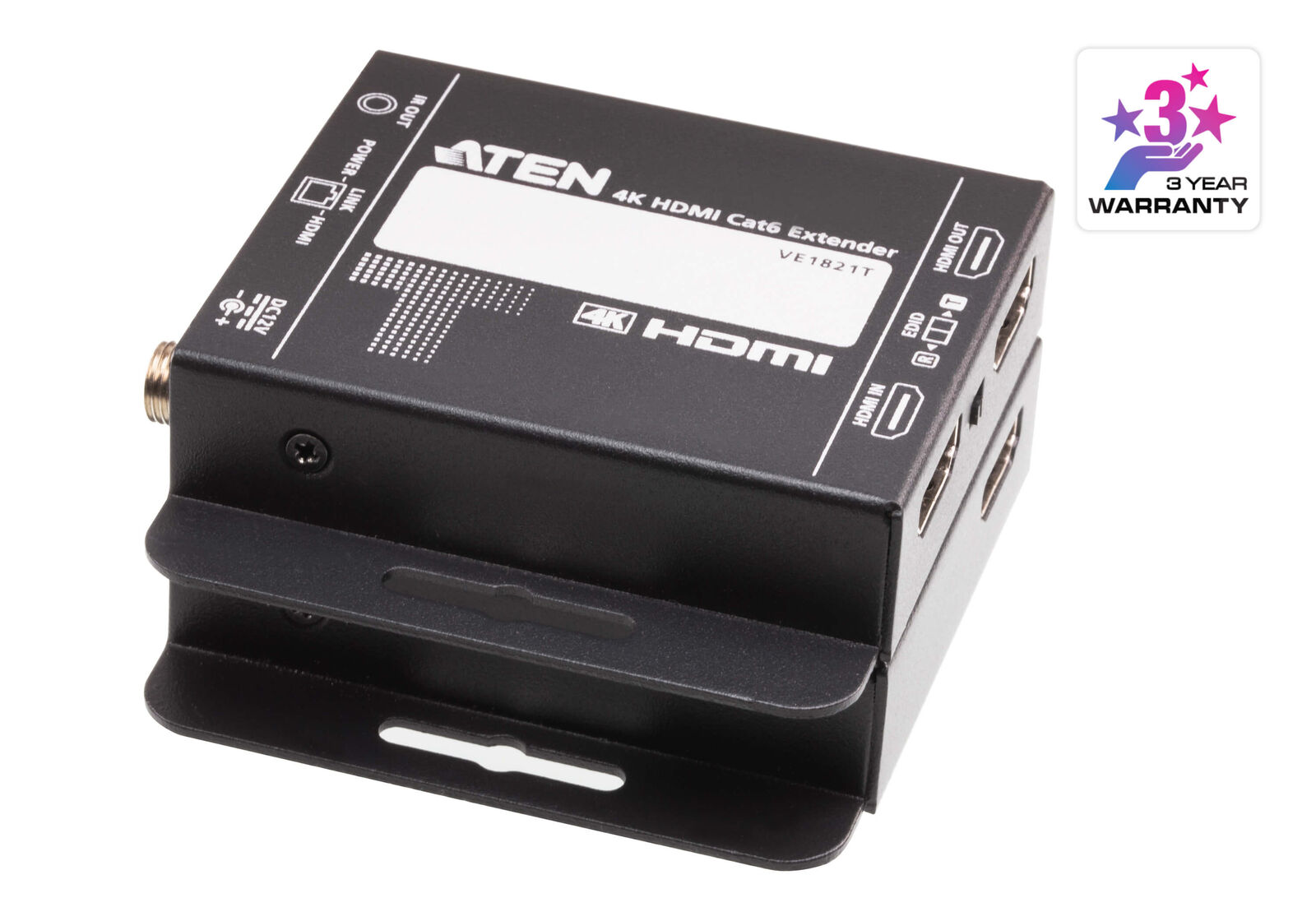

Aten 4K HDMI Cat6 Extender Kit with Power-Over-Cable Technology

$136.40
RRP $159.00 save 14%

or 4 payments of $34.10 with Learn more

Only 1 Left!

Product Information

SKU:

KVA-VE1821

Brand:

Aten

Barcode #:

4710469342790

Shipping Weigth:

0.1200kg
