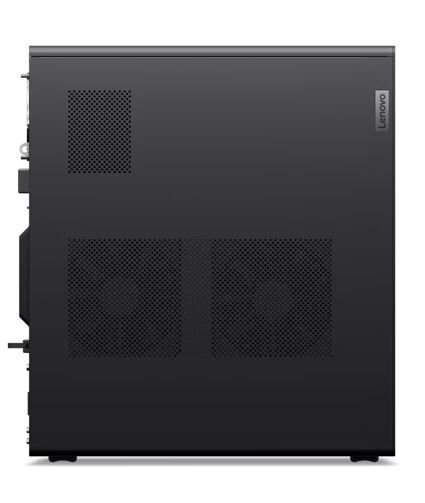

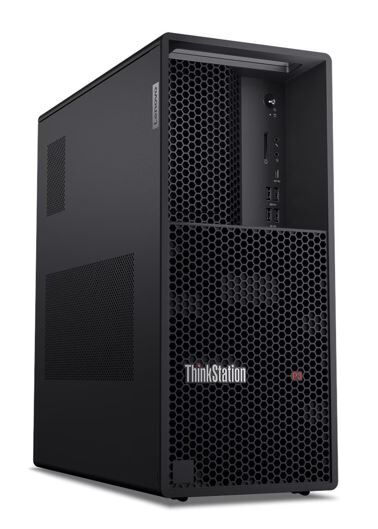

LENOVO ThinkStation P3 Tower i7-14700K 32GB 1TB SSD 2TB SATA HDD NVIDIA RTXA2000-16GB WIN 11P Intel UHD Graphics 770 RJ-45 WIFI6E BT KBM 3YR WTY

PERFORMANCE

Processor Intel Core i7-14700K, 20C (8P 12E) 28T, Max Turbo up to 5.6GHz, P-core 3.4 5.5GHz, E-core 2.5 4.3GHz, 33MB

AI PC Category AI-Ready Workstations

Processor Sockets 1x FCLGA1700

Integrated Graphics Integrated Intel UHD Graphics 770

Discrete Graphics 1x NVIDIA RTX 2000 Ada Generation 16GB

Chipset Intel W680 Chipset

Memory 2x 16GB UDIMM DDR5-4400 Non-ECC

Memory Slots 4 DDR5 DIMM slots, 2 channels capable

Max Memory Up to 128GB (4x 32GB DDR5 UDIMM)

PCIe NVMe Controller Integrated NVMe Controller

PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal

SATA Controller Onboard Intel RSTe SATA RAID

SATA SAS Drive 1x 2TB HDD 7200rpm 3.5 ft SATA6Gb s

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC897Q-CG codec

Power Supply 750W Platinum Fixed

DESIGN

Keyboard USB Calliope Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Expansion Slots Supports four PCIe slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width Slot 2: PCIe 3.0 x1, full height, half length, 25W Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W Slot 4: PCIe 3.0 x1, full height, half length, 25W

Dimensions (WxDxH) 180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches)

Weight 13.61 kg (30.00 lbs, maximum configuration)

CONNECTIVITY

Onboard Ethernet Intel I219-LM, 1x GbE RJ-45

Optional Ethernet None

WLAN Bluetooth Intel Wi-Fi 6E AX211, 802.11ax 2x2 BT5.1, vPro

Card Reader None

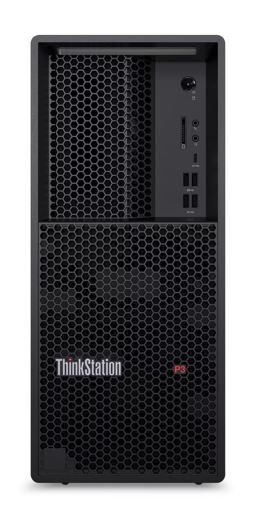

Front Ports 1x USB-C (USB 10Gbps USB 3.2 Gen 2), data transfer only

2x USB-A (USB 5Gbps USB 3.2 Gen 1)

2x USB-A (USB 10Gbps USB 3.2 Gen 2)

1x headphone microphone combo jack (3.5mm)

1x microphone (3.5mm)

Optional Front Ports (configured) -

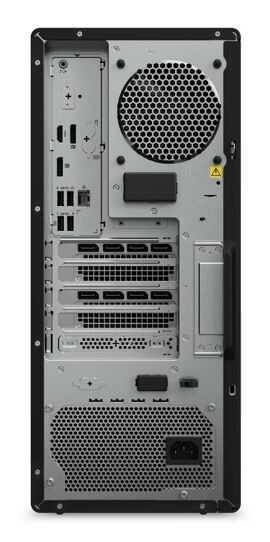

Rear Ports 4x USB-A (USB 5Gbps USB 3.2 Gen 1), one supports Smart Power On

1x HDMI 2.1 TMDS

2x DisplayPort„ 1.4

1x Ethernet (RJ-45)

1x line-out (3.5mm)

Optional Rear Ports (configured) None

SECURITY PRIVACY

Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks Kensington Security Slot„, 3 x 7 mm

Padlock Loop

Cover Lock None

Cable Lock No Cable

Chassis Intrusion Switch None

MANAGEABILITY

System Management Intel vPro Enterprise with Intel AMT 16

SERVICE

Base Warranty 3-year, Onsite

Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite

CERTIFICATIONS

ISV Certifications Please visit ISV certifications for Lenovo Workstations

SOFTWARE

Operating System Windows 11 Pro, English
