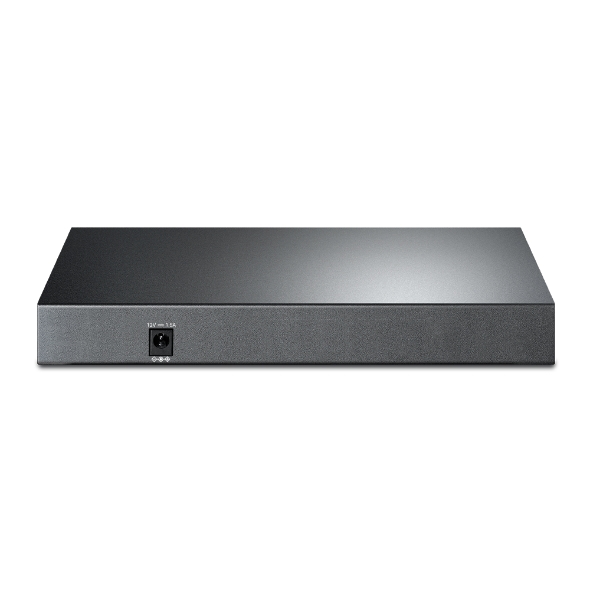

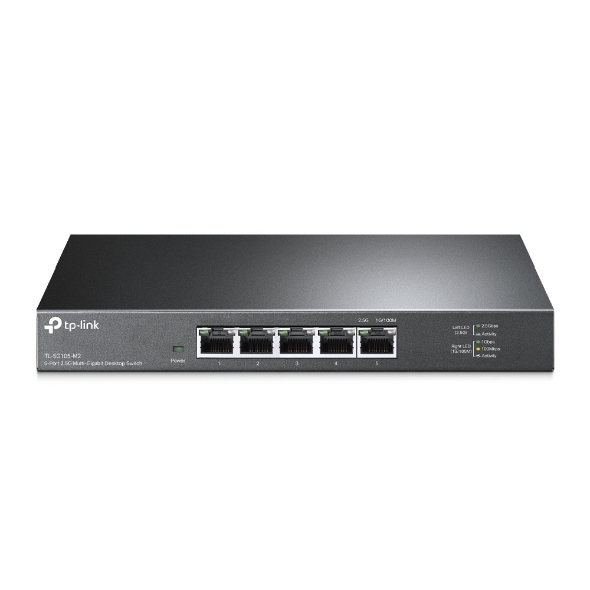

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch

Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity.

Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**

Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play. Allows for easy deployment without the need for a technician.

Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 12 VDC / 1 A)

LED Indicator System Power: 1

Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)

Max Power Consumption 12.11 W

Max Heat Dissipation 41.32 BTU/h

PERFORMANCE

Switching Capacity 25 Gbps

Packet Forwarding Rate 18.6 Mpps

MAC Address Table 16 K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 10 KB

SOFTWARE FEATURES

Advanced Features 802.3X Flow Control

802.1p/DSCP QoS

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

Package Contents 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2

Power Adapter

Installation Guide

Rubber Feet

Environment Operating Temperature: 0“40 °C (32“104 °F)

Storage Temperature: -40“70 °C (-40“158 °F)

Operating Humidity: 10“90% RH non-c
