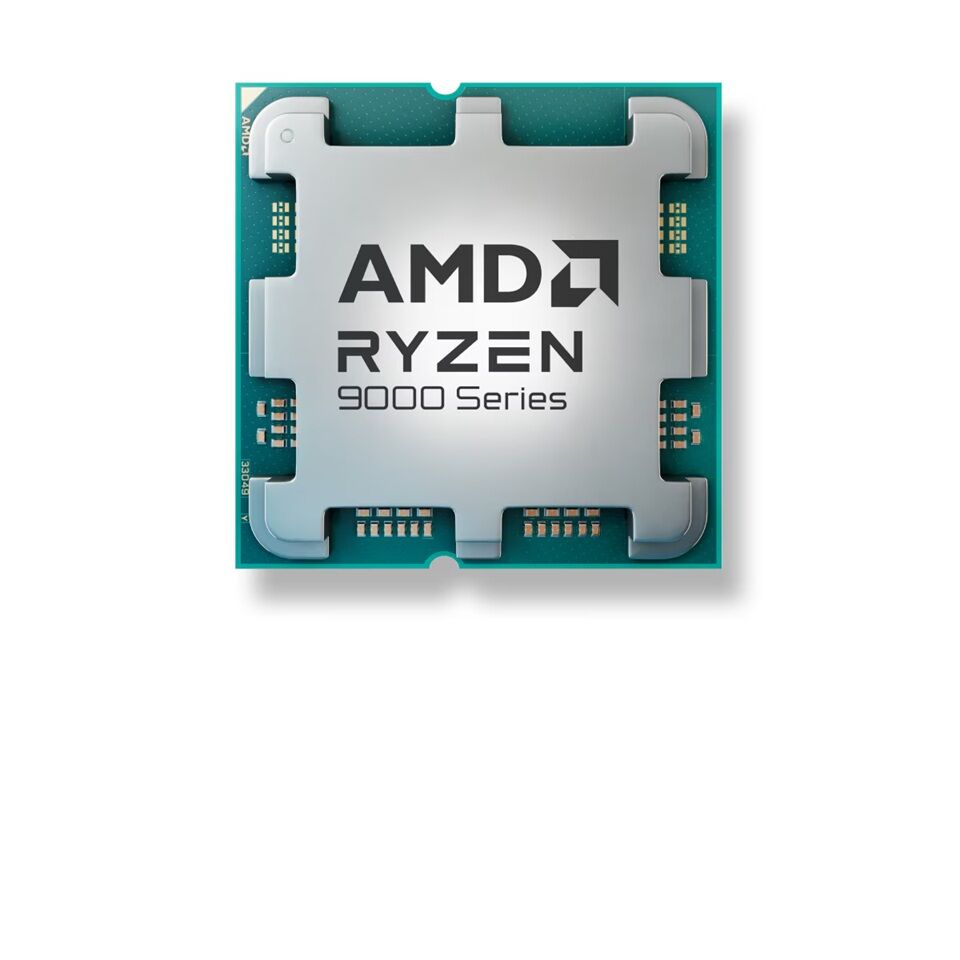

AMD Ryzen„ 7 9850X3D Desktop Processor, 8 cores 16 threads, Zen 5, up to 5.6GHz boost, 96MB L3 cache, AM5, PCIe 5.0

General Specifications

Name AMD Ryzen„ 7 9850X3D

Family Ryzen

Series Ryzen 9000 Series

Form Factor Desktops, Boxed Processor

Market Segment Enthusiast Desktop

AMD PRO Technologies No

Regional Availability Global

Former Codename Granite Ridge AM5

Processor Architecture Zen 5

# of CPU Cores 8

Multithreading (SMT) Yes

# of Threads 16

Max. Boost Clock Up to 5.6 GHz

Base Clock 4.7 GHz

L1 Cache 640 KB

L2 Cache 8 MB

L3 Cache 96 MB

Default TDP 120W

Processor Technology for CPU Cores TSMC 4nm FinFET

Processor Technology for I O Die TSMC 6nm FinFET

Package Die Count 2

Unlocked for Overclocking Yes

AMD EXPO„ Memory Overclocking Technology Yes

Precision Boost Overdrive Yes

Curve Optimizer Voltage Offsets Yes

AMD Ryzen„ Master Support Yes

CPU Socket AM5

Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) Not Included

Recommended Cooler Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax) 95 degreeC

OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) 4

Native USB 2.0 (480Mbps) 1

PCI Express Version PCIe 5.0

Native PCIe Lanes (Total Usable) 28 , 24

NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type DDR5

Memory Channels 2

Max. Memory 192 GB

System Memory Subtype UDIMM

Max Memory Speed

2x1R DDR5-5600

2x2R DDR5-5600

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support Yes (Requires mobo support)

Graphics Capabilities

Graphics Model AMD Radeon„ Graphics

Graphics Core Count 2

Graphics Frequency 2200 MHz

USB Type-C DisplayPort„ Alternate Mode Yes

Product IDs

Product ID Boxed 100-100001973WOF

Product ID Tray 100-000001973

Security

AMD Secure Processor Support Yes

AMD Platform Secure Boot Yes

Windows Secure Boot Support Yes

UEFI Secure Boot Support Yes

Windows Device Guard Support Yes

Supervisor Mode Execution Prevention (SMEP) Yes

Guest Mode Execution (GMET) Trap Support Yes

Virtualization-Based Security (VBS) Support Yes

Windows Secured-Core PC Support Yes

Firmware TPM Yes

AMD-V (SVM) Support Yes

AMD AVIC (Interrupt Virtualization) Support Yes

AMD-Vi (I O MMU Virtualization) Support Yes

Second Level Address Translation (SLAT) Supported Yes

Advanced Encryption Standard New Instructions (AES-NI) Yes

AMD Enhanced Virus Protection (NX bit) Yes

AMD Shadow Stack Yes
