Description

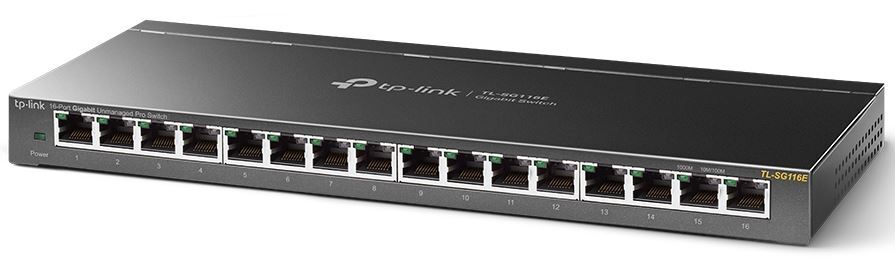

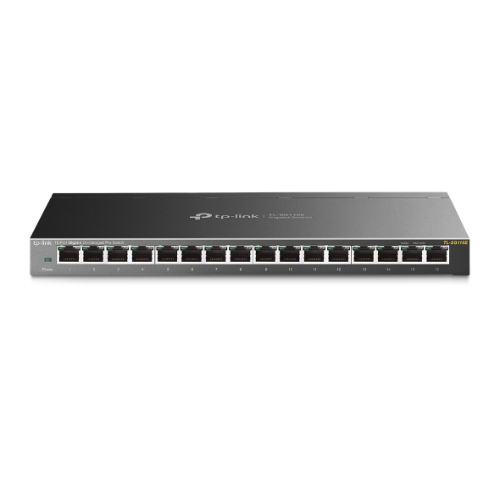

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless


16 10/100/1000Mbps RJ45 ports

Plug and play, with no configuration required

Durable metal casing of superior quality and professional appearance

Intelligent management via a web user interface and downloadable utility

Green technology reduces power consumption


HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface 16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter(Output: 9VDC/0.6A)

Power Consumption Maximum: 9.27W (220V/50Hz)

Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

PERFORMANCE

Switching Capacity 32Gbps

Packet Forwarding Rate 23.81Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1Mb

Jumbo Frame 9KB


SOFTWARE FEATURES

Quality of Service Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

Specifications
SKU NWTL-SG116E
Barcode # 6935364084301
Brand TP-LINK
Shipping weight 1.9200kg
Shipping width 0.272m
Shipping height 0.170m
Shipping length 0.514m
Assembled length 4.140m
Assembled height 0.700m
Assembled width 1.720m

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

$127.60
RRP $133.06 save 4%

or 4 payments of $31.90 with Learn more

Sold Out

Product Information

SKU:

NWTL-SG116E

Brand:

TP-LINK

Barcode #:

6935364084301

Shipping Weigth:

1.9200kg

Warranty:

60
