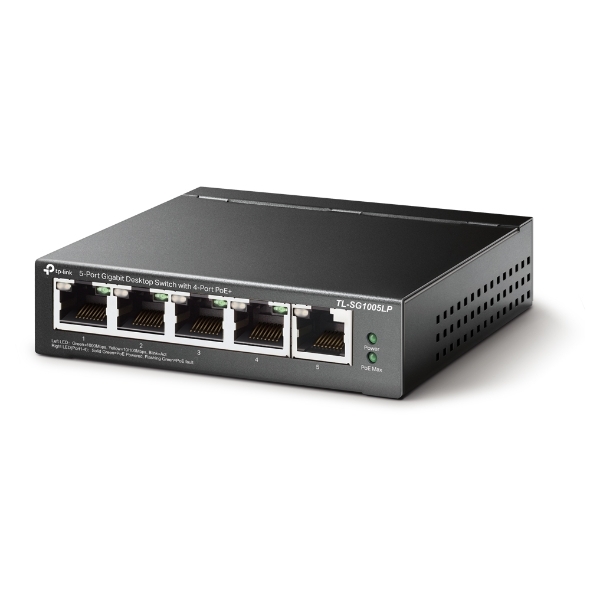

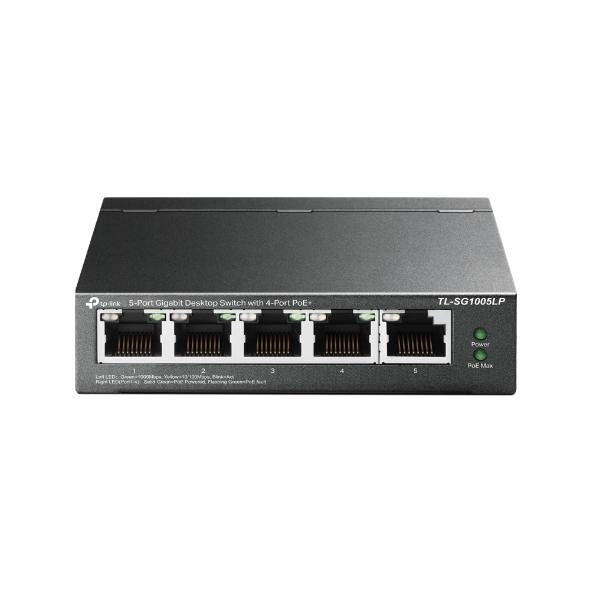

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports*
Plug and play, no configuration and installation required
HARDWARE FEATURES
Interface 5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1“4
Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption 4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation 14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1005LP
Power Adapter
Installation Guide
Environment Operating Temperature: 0“40 „ƒ (32“104 „‰);
Storage Temperature: -40“70 „ƒ (-40“158 „‰)
Operating Humidity: 10“90% RH non-condensing
Storage Humidity: 5“90% RH non-condensing
SKU | NWTL-SG1005LP |
Barcode # | 6935364052720 |
Brand | TP-LINK |
Shipping weight | 1.3400kg |
Shipping width | 0.234m |
Shipping height | 0.220m |
Shipping length | 0.298m |
Assembled length | 1.980m |
Assembled height | 1.200m |
Assembled width | 1.340m |
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE Up To 40W For all PoE Ports Up To 30W Each Port
or 4 payments of $19.14 with Learn more
Product Information
SKU:
NWTL-SG1005LP
Brand:
TP-LINK
Barcode #:
6935364052720
Shipping Weigth:
1.3400kg
Warranty:
60
