TP-Link TL-WA850RE N300 Universal WiFi Range Extender 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2x OnBoard antennas Mini size wall-mounted

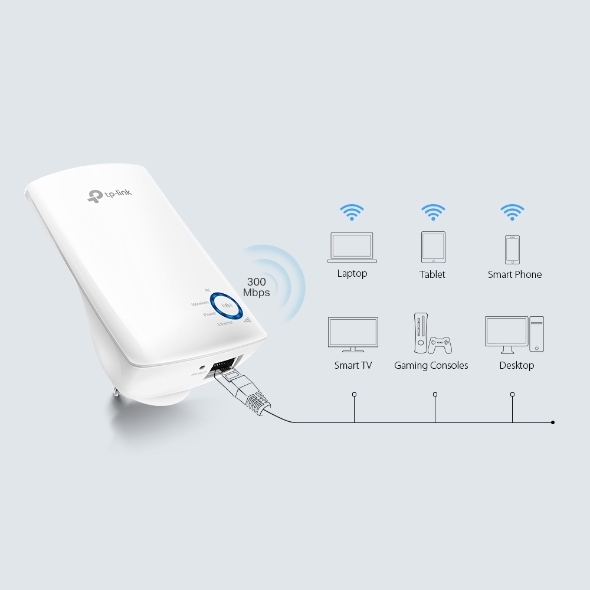

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
HARDWARE FEATURES
Plug Type EU, UK, US
Interface 1 * 10/100M Ethernet Port (RJ45)
Button RE (Range Extender) Button, Reset Button
Power Consumption About 3W
Antenna 2 * internal
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU | NWTL-WA850RE |
Barcode # | 6935364070847 |
Brand | TP-LINK |
Shipping weight | 1.0000kg |
Shipping width | 0.260m |
Shipping height | 0.192m |
Shipping length | 0.310m |
Assembled length | 2.100m |
Assembled height | 0.920m |
Assembled width | 1.600m |
TP-Link TL-WA850RE N300 WiFi Range Extender 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2x OnBoard antennas Mini size wall-mounted (~TL-WA855RE)
