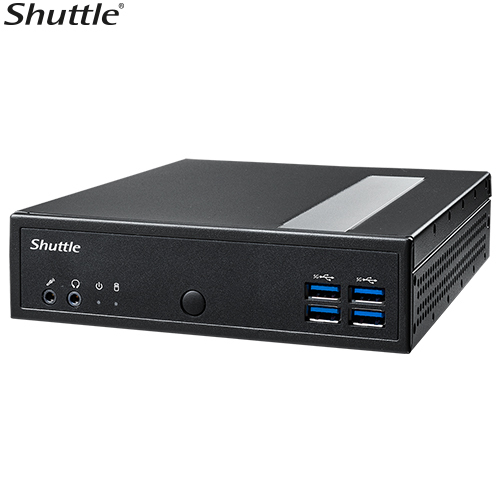

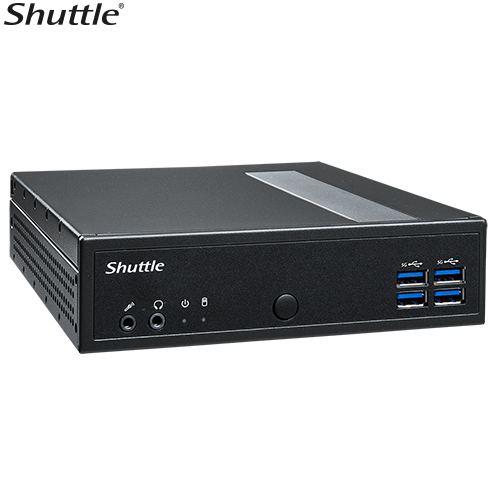

Shuttle's DL30N series, a fanless PC, features Intel Alder Lake-N processors and offers supports the latest DDR5 memory technology. It supports three independent display outputs, ensuring reliable multitasking capabilities. The inclusion of dual Intel 2.5G Ethernet ports with Wake on LAN, along with compatibility with wireless Wi-Fi and 4G/LTE kits, adds flexibility for network options. Additionally, the DL30N offers a comprehensive range of I/O interfaces, including up to 8x USB 3.2 Gen1, 2x COM ports, HDMI 2.0b, DisplayPort 1.4a, and VGA ports. Its versatility allows seamless integration into various industries, such as digital signage, kiosks, POS/self-service machines, and IoT/edge computing, all while operating at low power to reduce operational costs.
FORM FACTOR
1.3L slim form factor
PROCESSOR
Intel Alder lake-N up to 7W CPU
Intel Processor N100 (DL30N)
Intel Processor N200 (DL30N2)
Intel Core i3-N300 (DL30N3)
MEMORY
Support DDR5 4800Mhz SODIMM memory Max. 16GB
VIDEO OUTPUT
HDMI 2.0b + DisplayPort + VGA video output | Support triple independent display | Intel generation HD Graphic engine
AUDIO
2 channels High-Definition Audio
ETHERNET
Intel I226-LM Dual LAN controller | Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation | Support wake ON LAN (WOL) feature
STORAGE INTERFACE
SATA for HDD/SSD

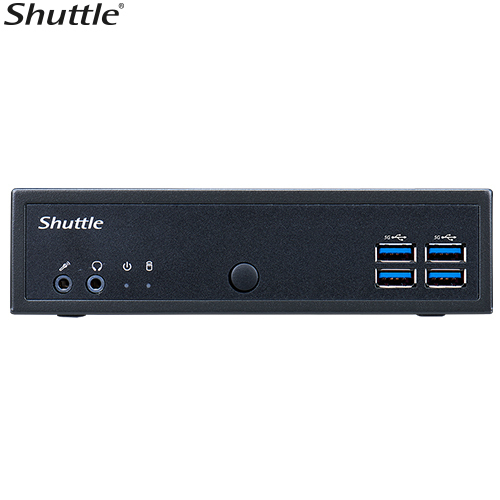

FRONT PANEL
Power button | Power Led | HDD Led | USB 3.2 Gen1 ports | MIC-IN | Audio out

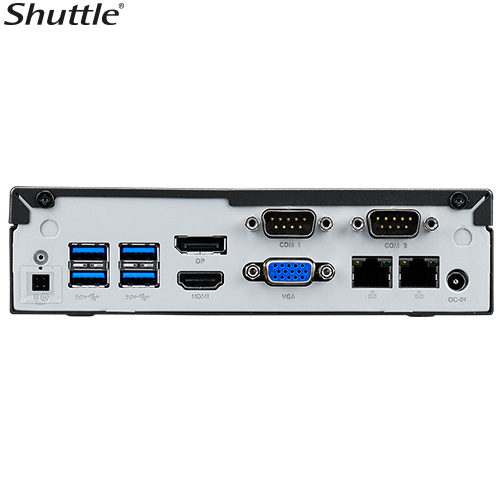

BACK PANEL
Intel 2.5GbE LAN w/LED | Display port | HDMI port | USB 3.2 Gen1 ports | DC in | RS232/RS422/RS485
EXPANSION SLOT
M.2 Type M (2280) | M.2 Type E (2230)
OS SUPPORT
Windows 11 64 bit O.S
Ubuntu
Linux O.S
CERTIFICATION
Safety certification : CB , BSMI , cTUVus | EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA
OPERATING TEMPERATURE
0~40
SKU | SYS-DL30N |
Barcode # | SYS-DL30N |
Brand | Shuttle |
Shipping weight | 2.7800kg |
Shipping width | 0.238m |
Shipping height | 0.342m |
Shipping length | 0.358m |
Assembled length | 2.580m |
Assembled height | 2.420m |
Assembled width | 1.380m |
Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100 Fan-less LAN RS232 RS422 RS485 HDMI DP VGA Vesa Mount 65W Adapter
