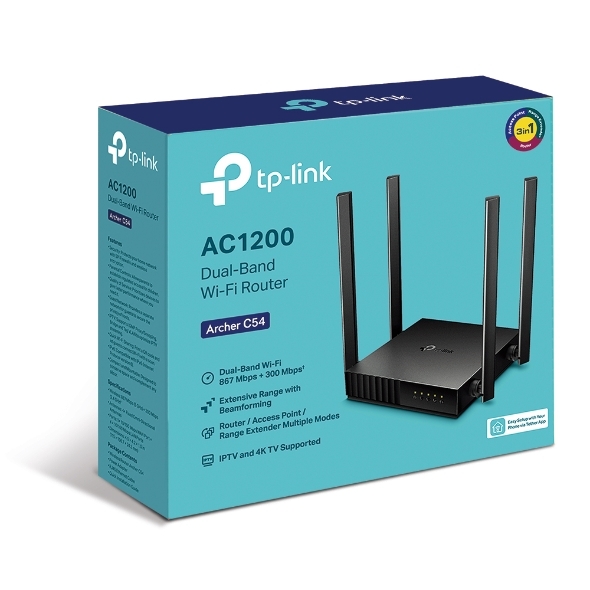

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router

Faster AC Wi-Fi”AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.

Far-Reaching Coverage”4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.

Multi-Mode 3-in-1”Supports Router, Access Point, and Range Extender modes for added flexibility.

Parental Controls”Manages when and how connected devices can access the internet.

Guest Network”Provides separate access for guests in order to secure the host network.

Smooth HD Streaming”Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.

IPv6 Supported”Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable”Designed to conserve space and complement any décor.

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

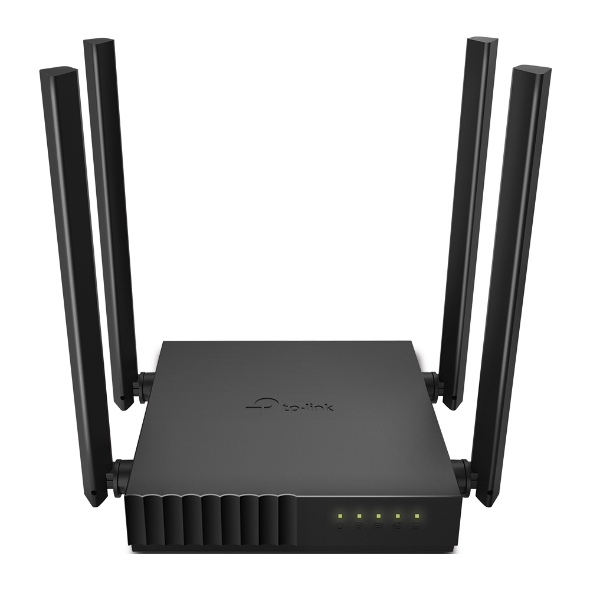

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

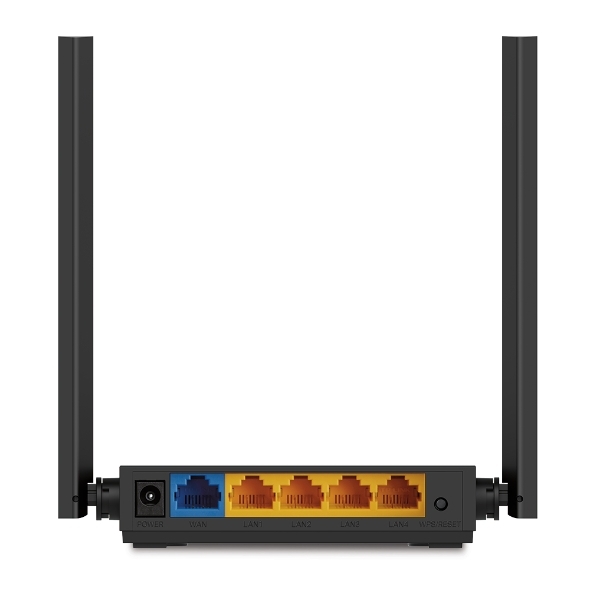

Ethernet Ports 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons WPS Button

Reset Button

Power 5 V Ž“ 0.6 A

PHYSICAL

Dimensions (W×D×H) (115 x 106.7 x 24.3 mm)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps:-93dBmï¼›11a 54Mbps:-78dBmï¼›

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbmï¼›
