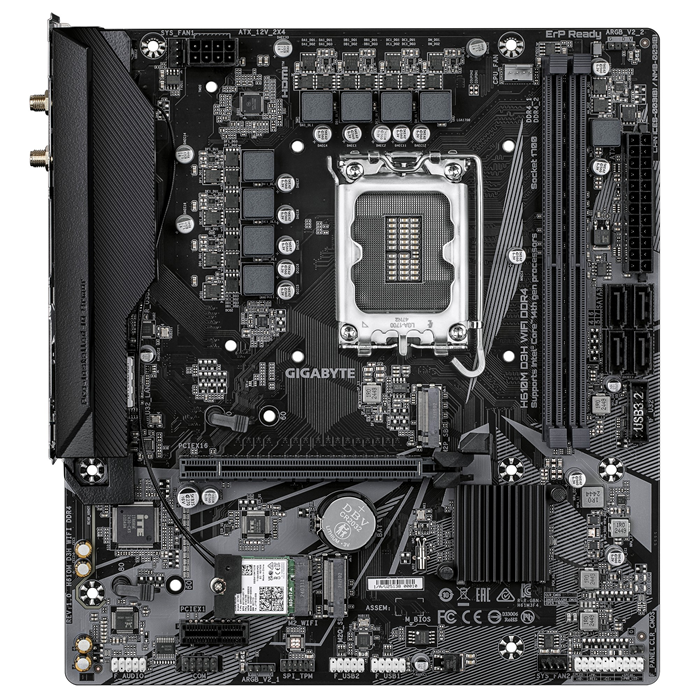

Gigabyte H610M D3H WIFI DDR4 Intel LGA 1700 , 2x DDR4 ~64GB, 1 x HDMI, 1x PCI x16, 1x PCI=E x1,1x M.2, 4x SATA, 4x USB3.2, 2x USB 2

SPECIFICATIONS:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core„, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Please refer to ftCPU Support List ft for more information.

Chipset

Intel H610 Express Chipset

Memory

Support for DDR4 3200 3000 2933 2666 2400 2133 MT s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ftMemory Support List ft on GIGABYTE fts website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support for native HDMI 2.1 TMDS compatible ports.

Expansion Slots:

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 2260 PCIe 3.0 x4 x2 SSD support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 2260 PCIe 3.0 x2 SSD support) (M2Q_SB)

- 4 x SATA 6Gb s connectors

USB:

Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 2 x USB 2.0 1.1 ports available through the internal USB header

Chipset2 USB 2.0 Hubs:

- 6 x USB 2.0 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor 23.0cm x 21.5cm
