Description

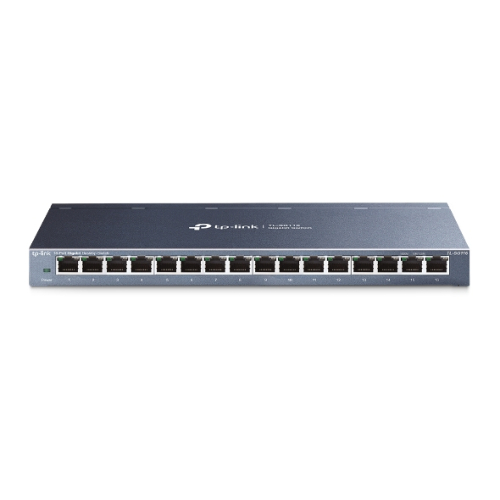

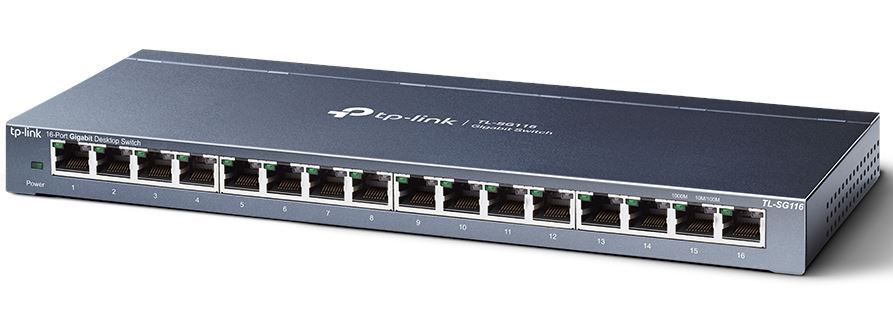

TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop/Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless


16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Steel housing, desktop or wall-mounting design

Support 802.1p/DSCP QoS and IGMP Snooping function

Plug and play, with no configuration needed


HARDWARE FEATURES

Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p

Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

Power Consumption Maximum: 10.0W

External Power Supply External Power Adapter (Output: 12VDC / 1.0A)

LED Indicator System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

PERFORMANCE

Packet Forwarding Rate 23.8Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1Mb

Jumbo Frame 10KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

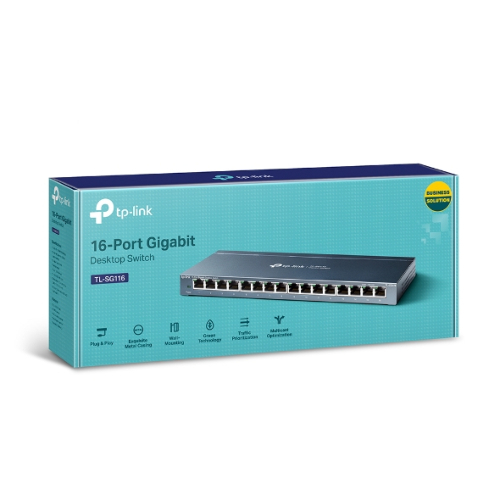

Package Contents 16-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing

Specifications
SKU NWTL-SG116
Barcode # 6935364084325
Brand TP-LINK
Shipping weight 1.8800kg
Shipping width 0.270m
Shipping height 0.172m
Shipping length 0.512m
Assembled length 4.120m
Assembled height 0.720m
Assembled width 1.700m

TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

$113.68
RRP $139.00 save 18%

or 4 payments of $28.42 with Learn more

Sold Out

Product Information

SKU:

NWTL-SG116

Brand:

TP-LINK

Barcode #:

6935364084325

Shipping Weigth:

1.8800kg

Warranty:

60
