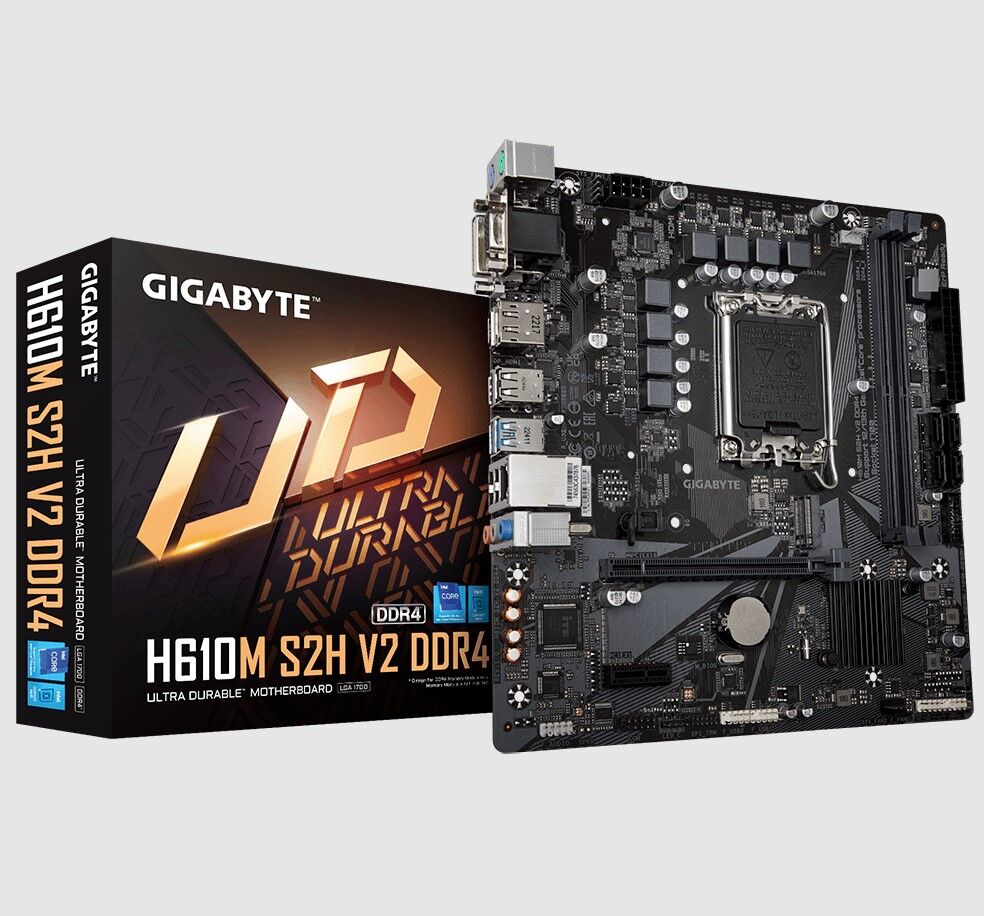

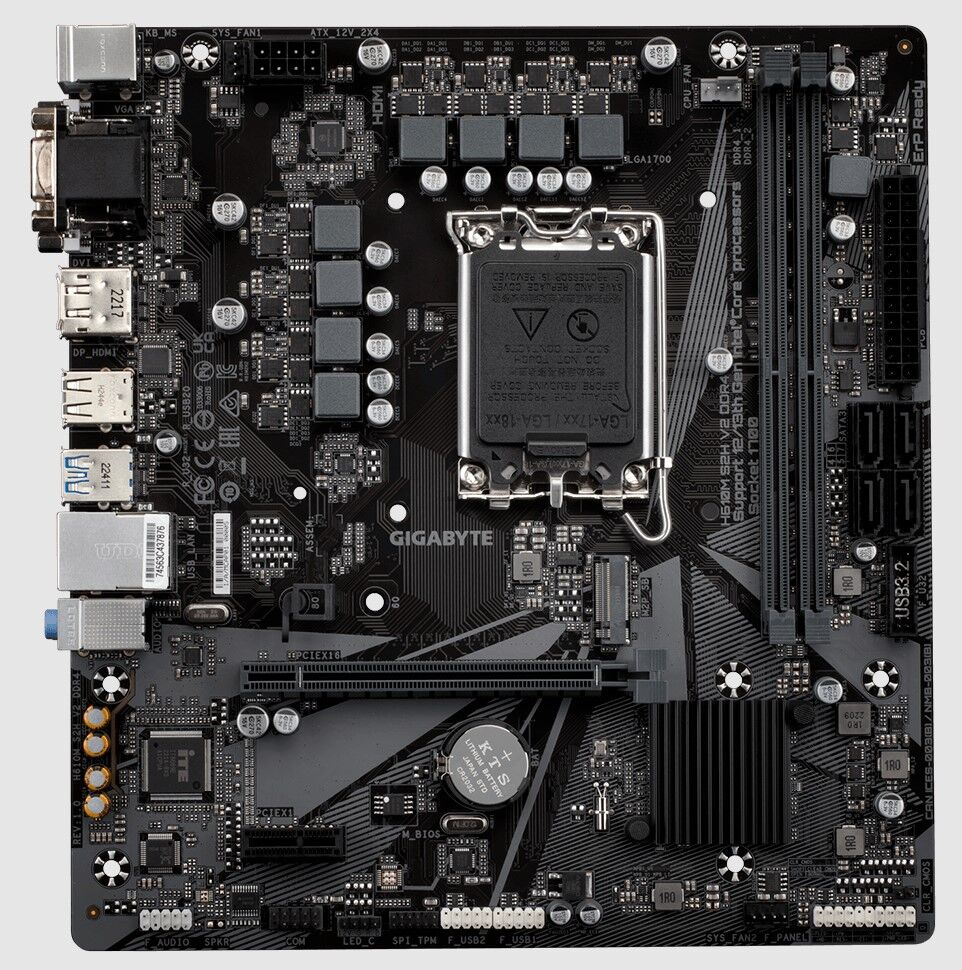

Gigabyte H610M S2H V2 DDR4 Motherboard with 611 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2, DisplayPort HDMI

Specification:

CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core„, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Chipset Intel H610 Express Chipset

Memory

Support for DDR4 3200 3000 2933 2666 2400 2133 MT s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

upport for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200 60 Hz

The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz

Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 2260 PCIe 3.0 x4 x2 SSD support)

4 x SATA 6Gb s connectors

USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0 1.1 ports on the back panel

ChipsetUSB 2.0 Hub:

4 x USB 2.0 1.1 ports available through the internal USB headers
