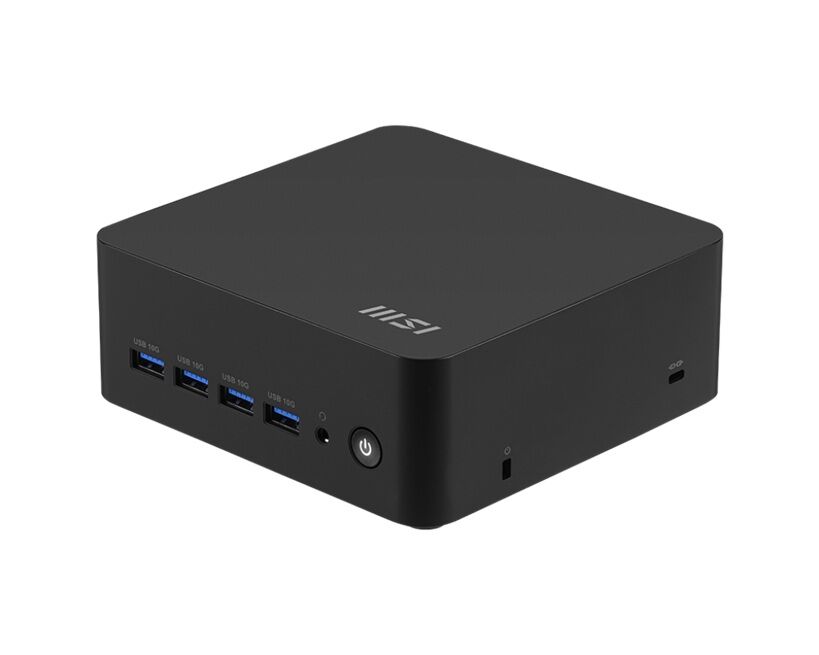

MSI Cubi Z AI 8M with Hawk Point R5, Ryzen 5 8645HS Up to DDR5 dTPM 2M.2 2HDMI 2USB C 4.0 4Display 2LAN Wifi6E Card Reader Power Switch Cable 3Y

FEATURES

Ready for AI

Enable lightweight AI for better performance and lower power usage in efficient intelligent systems.

Built-in NPU

Designed for efficient AI processing with lower power consumption.

4-Display Support

Enhance the workflow efficiency by previewing e-commerce content on up to four monitors for improved productivity.

USB4 40Gbps

Up to 40Gb transmission speed and support the power delivery, offering a fast and simple level of connection for work.

Dual 2.5G LAN

Dual 2.5G network solution for Intranet and Internet offers a smooth experience for effective network connection.

dTPM 2.0 Support

dTPM 2.0 design secures your confidential data with encryption keys.

Built-In Speaker

Built-in speakers allow you to listen clearly without connecting external speakers.

MSI AI Engine

Incorporating AI technology, the MSI AI Engine can switch settings, including lighting, performance, audio and visual based on different applications.

VESA Mountable

To be mounted on the wall of your office home with a VESA standard design which can make it completely invisible on a desk

SPECIFICATIONS

Operating System

Windows 11 Home

Windows 11 Pro - MSI recommends Windows 11 Pro for business

CPU

AMD Ryzen„ 5 8645HS

Chipset AMD SoC

Graphics AMD Radeon„ Graphics (Integrated)

Storage 1x M.2 2280 SSD (NVMe PCIe Gen4 x4)

System Memory 2x DDR5 5600 SO-DIMMs, up to 64GB

I O (Front)

4x USB 10Gbps Type A

1x Mic-in Headphone-out combo

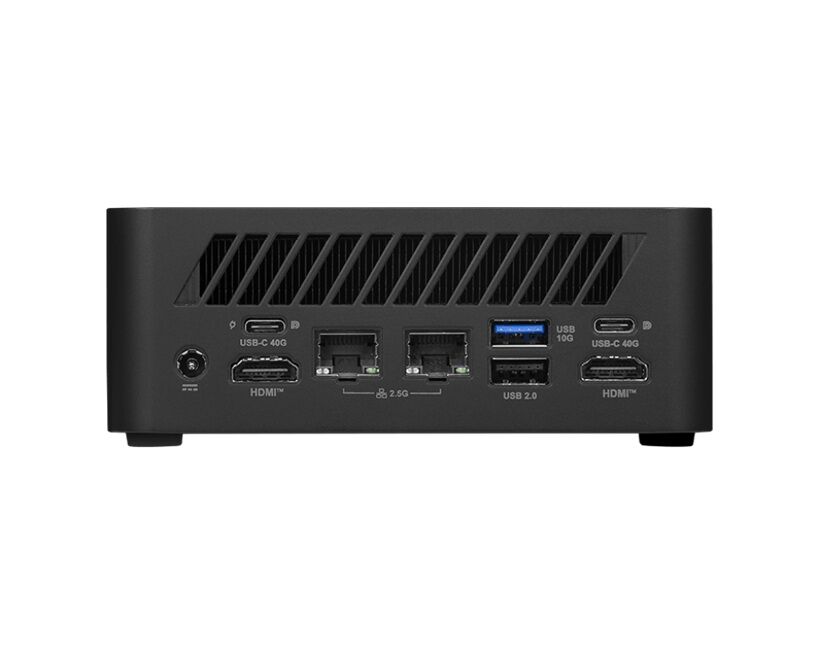

I O (Rear)

2x USB4 Type-C (DP 1.4 alt-mode up to 4K 60Hz

PD-out 15W One of USB4 supports PD-in up to

100W)

1x USB 10Gbps Type A

1x USB 2.0 Type A

2x RJ45 (2.5G)

2x HDMI„ out (supports 4K 60Hz as specified in

HDMI„ 2.1)

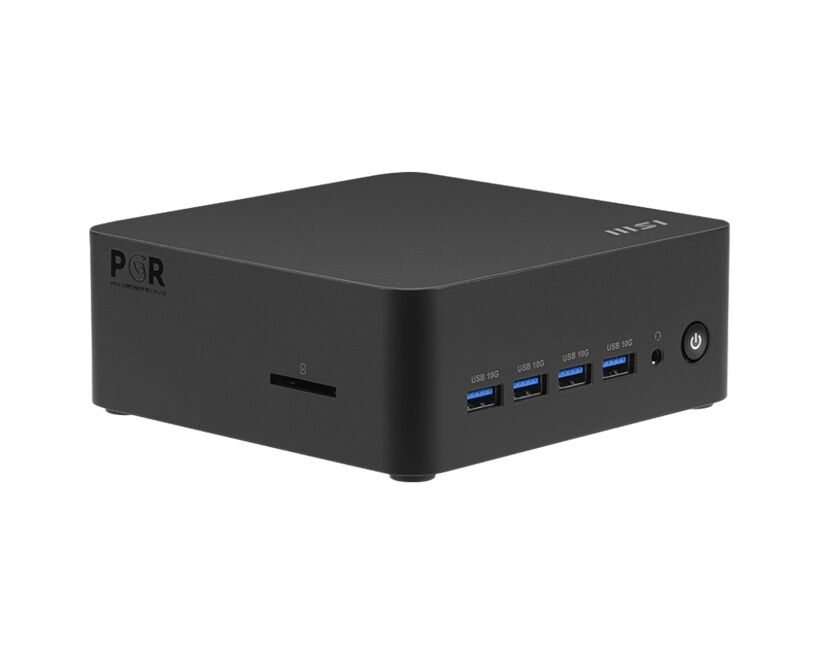

I O (SIDE)

1x Card Reader

1x Kensington Lock

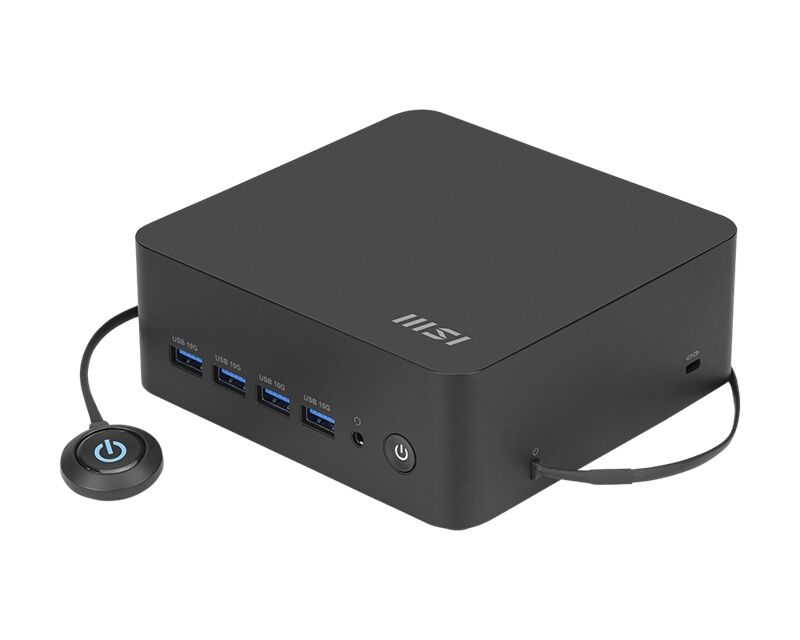

1x External Power Switch Pin Header

Wireless LAN AMD RZ616 Wi-Fi 6E

Bluetooth 5.3

AUDIO Built-in Speaker

LAN 2x Realtek RTL8125BG (2.5G)

KEYBOARD MOUSE Optional

AC Adapter PSU 120W

Dimension (WxDxH) 136.00 x 132.00 x 50.10 mm (5.35 x 5.20 x 1.97 inch)

WEIGHT (N.W. G.W.) 0.79 Kg (1.74 lbs) 2.02 Kg (4.45 lbs)

Certificates FCC, CB CE, UL CUL, VCCI, RCM
