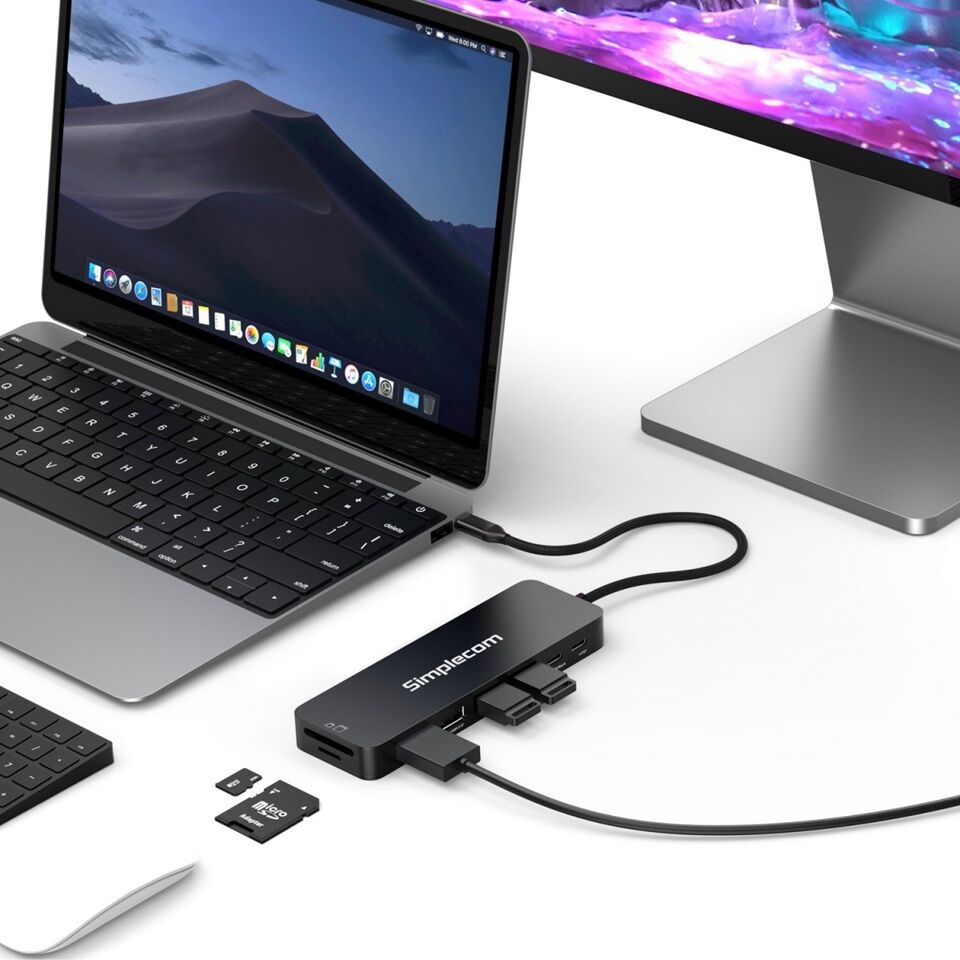

Simplecom CHT595 9-in-1 USB-C Multiport Docking Station with NVMe M.2 Enclosure

Expand your laptop fts capabilities with this versatile 9-in-1 USB-C Multiport Docking Station. It transforms a single USB-C port into a full-featured hub with extra USB ports, HDMI, card readers, PD charging, and even an integrated NVMe M.2 SSD slot, turning your dock into a high-speed portable USB drive.

If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.

HDMI 2.0 Video Output up to 4K 60Hz

Enjoy stunning Ultra HD visuals with the HDMI 2.0 port, supporting resolutions up to 4K 60Hz on compatible laptops. Experience smooth, fluid playback, perfect for fast-action scenes, gaming, or high-quality video content.

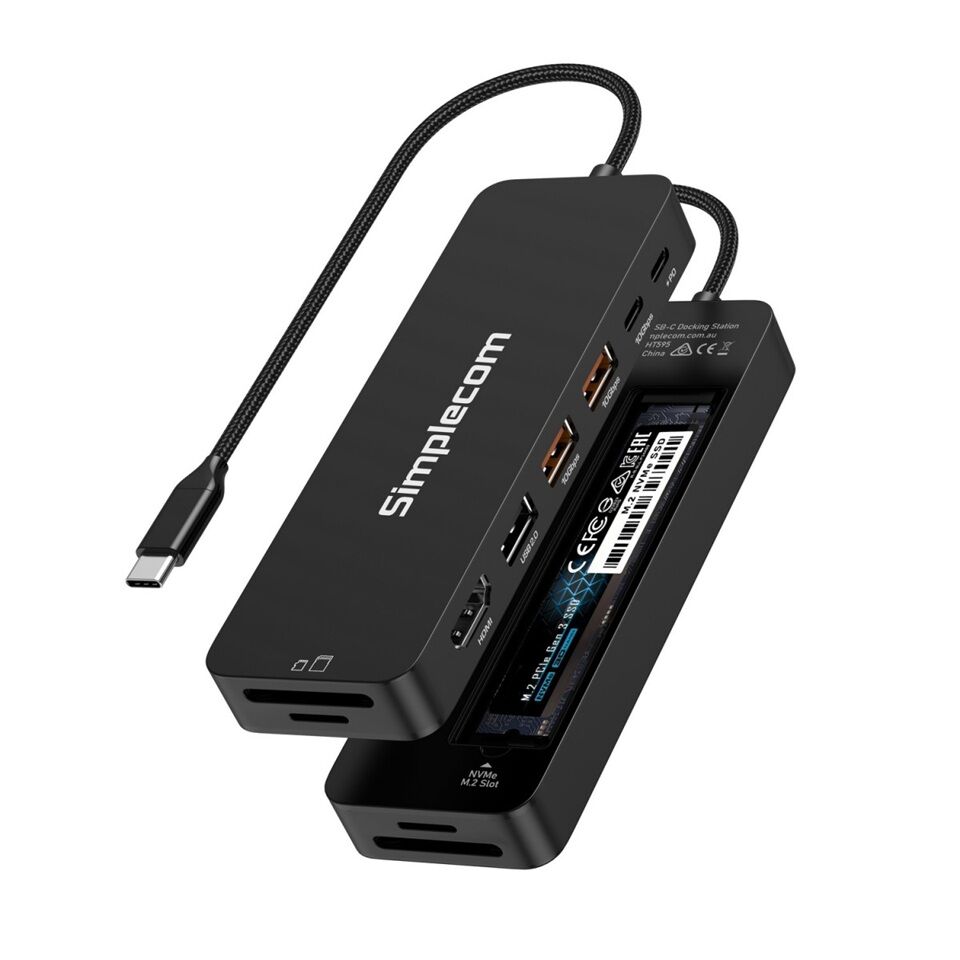

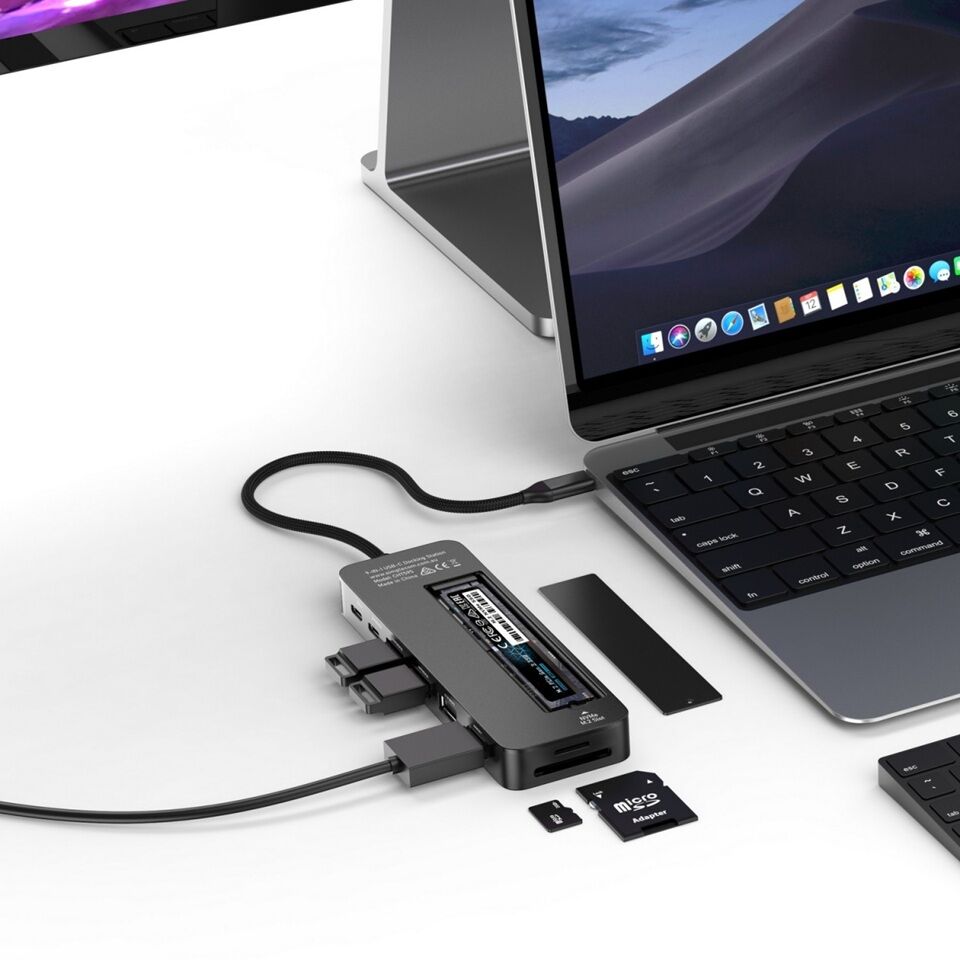

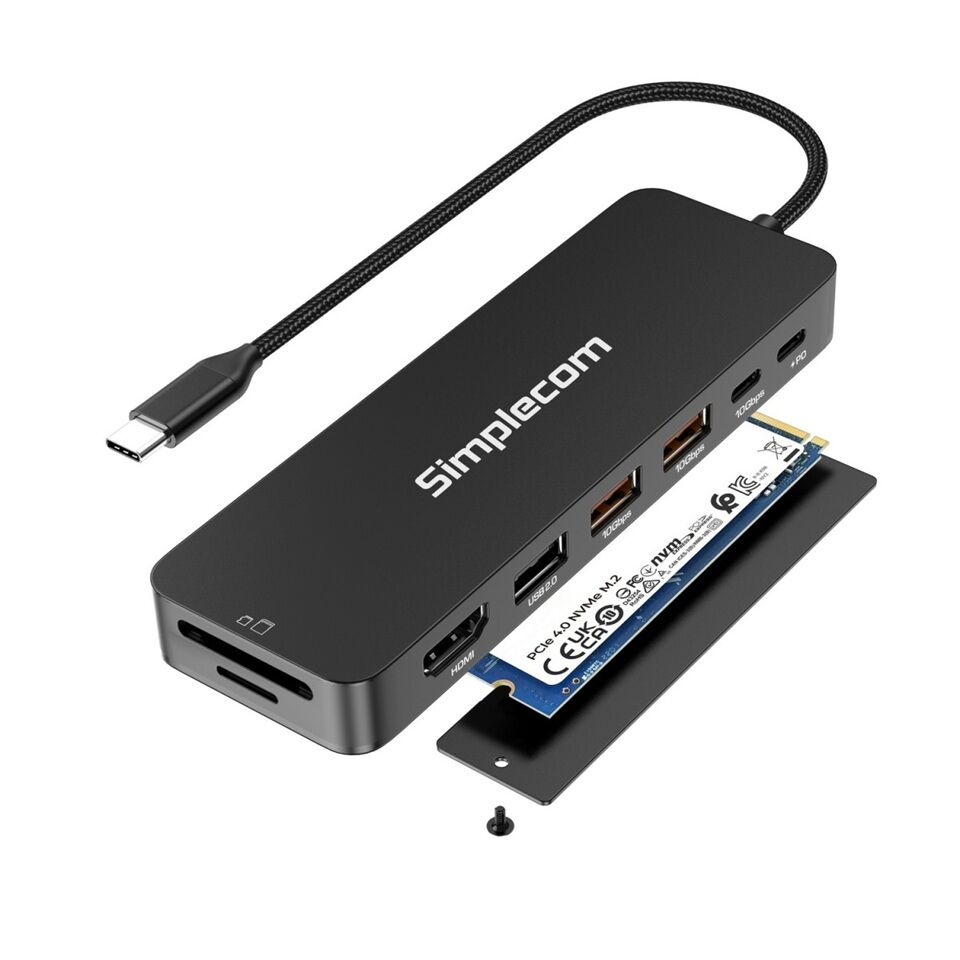

Integrated NVMe M.2 SSD slot

Transform your docking station into a high-speed portable drive with the built-in NVMe M.2 SSD slot for fast data access and convenient storage expansion, combining storage and connectivity in one device.

10Gbps USB-C and USB-A Ports

Experience ultra-fast data transfer speeds of up to 10Gbps with the USB 3.2 Gen 2 USB-C and USB-A ports, perfect for quickly transferring large files and backups.

SD MicroSD Card Reader

Easily access and transfer photos, videos, and files from SD or microSD cards with plug-and-play convenience.

100W USB-C Power Delivery

The USB-C PD port supports up to 100W Power Delivery, allowing you to charge your laptop efficiently while using other connected devices.

Stylish and Durable Aluminium Casing

Crafted from premium aluminium alloy, the metal housing provides excellent heat dissipation and a sleek, modern look, ensuring both durability and stable performance.

Features

9-in-1 USB-C multiport docking station for all-in-one laptop expansion

Expands a single USB-C to extra USB ports, HDMI, Card Reader, PD and an NVMe SSD slot

Integrated NVMe M.2 SSD slot transforms the dock into a portable USB drive

USB 3.2 Gen 2 interface delivers data transfer speeds up to 10Gbps

Two 10Gbps USB-A and one 10Gbps USB-C ports for ultra-fast file transfers

HDMI 2.0 supports up to 4K 60Hz in both Mirror and Extended display modes

2-Slot Card reader for SD and microSD memory cards

USB-C PD port supports up to 100W charging input

Premium aluminium alloy housing for durability and heat dissipation

Compact and lightweight design for travel-friendly portability

Built-in flexible USB-C cable for hassle-free connectivity

Plug-and-play, no driver installation required

Specifications

Host Interface: USB-C

USB Hub: 2x USB-A Female (10Gbps), 1x USB-C Female (10Gbps)

HDMI Port: HDMI 2.0, up to 3840 x 2160p at 60Hz (4K 60Hz)

Card Reader: SD and MicroSD (USB 2.0 Hi-Speed, 480Mbps)

PD Input: USB-C PD (charging only), up to 100W

Compatible M.2 Protocol: NVMe M.2

Compatible M.2 Size: 2242, 2260, 2280

M.2 Slot Data Transfer Rate: up to 10Gbps

Operating Temperature: 0 “ 55 degreeC

Housing Material: Aluminum

Dimensions: 13 x 4.2 x 1.5 cm

Cable Length: 15cm

Weight: 80g

System Requirements

Operating system: Windows 10 or later, macOS 10.12 or later

Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port

Laptop GPU with DP 1.4 or higher supports up to 4K 60Hz, laptop GPU with DP 1.2 supports up to 4K 30Hz

Important Notes

Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.

4K 60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 11th Gen Core Mobile Processors or later).

The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.

NVMe M.2 slot supports only NVMe protocol M.2 SSDs (M Key), SATA M.2 SSDs are not compatible.
