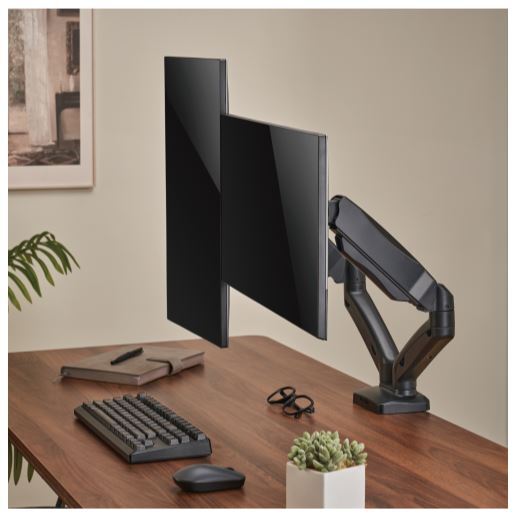

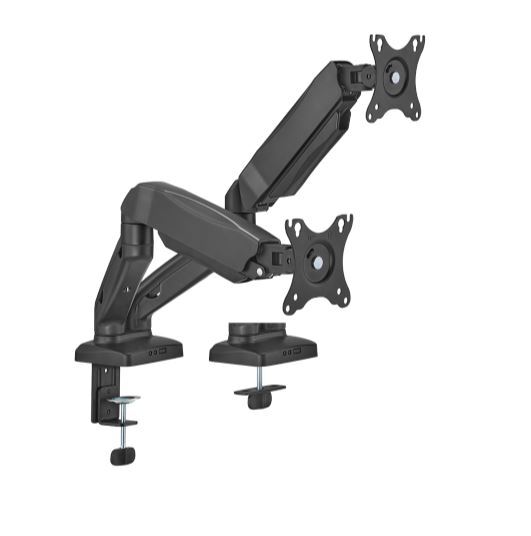

The LDT09-C024N is constructed with solid steel, elegant die casting aluminum and integrated with innovative counterbalance technology. It can efficiently frees up space on your desk and easily move your LCD monitor into the best ergonomic position. Highly adjustable arm moves up, down, forward and back with just a touch. With weight capacity of 6kg/13.2lbs, this desk mount features 360° monitor rotation, -90°~ +90° tilt, 180°swivel and vertical distance height adjustments. The desk arm is designed with cable management to provide neat desk space. The monitor mount is ideal for offices, homes, public area, industrial settings, production line and many more.

FEATURES

—Keyhole Pattern: allows for easy installation

—Gas spring perfectly counterbalances the weight of your screen to help effortless adjustment for viewing comfort

—Built-in Spring Tension Mechanism: for perfect weight adjustments

—Built-in Spring Tension Gauge: for perfect weight adjustments

—Cable Management: keeps everything organized

—Easy to adjust, no tools required

—Two Mounting Options: both desk clamp and grommet are included

SPECIFICATIONS

Product Category: Gas Spring Monitor Arm

Rank: Standard

Material: Aluminum,Steel,Plastic

Surface Finish: Powder Coating

Color: Matte Black

Dimensions: 942x112x570mm(37.1'x4.4'x22.4')

Fit Screen Size: 17'-32'

Fit Curved Monitor: Yes

Screen Quantity: 2

Weight Capacity (per screen): 2~9kg(4.4lbs~19.8lbs)

VESA Compatible: 75x75,100x100

Tilt Range: +90°~-45°

Swivel Range: +90°~-90°

Screen Rotation: +180°~-180°

Arm Full Extension: 450mm(17.7')

Installation: Clamp,Grommet

Suggested Desktop Thickness: Clamp：10~83mm Grommet：10~83mm(Clamp：0.39'~3.3' Grommet：0.39'~3.3')

USB Port: No

Multi-Media Port: No

Cable Management: Yes

Anti-theft: No

Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Instruction Manual Included: Yes
