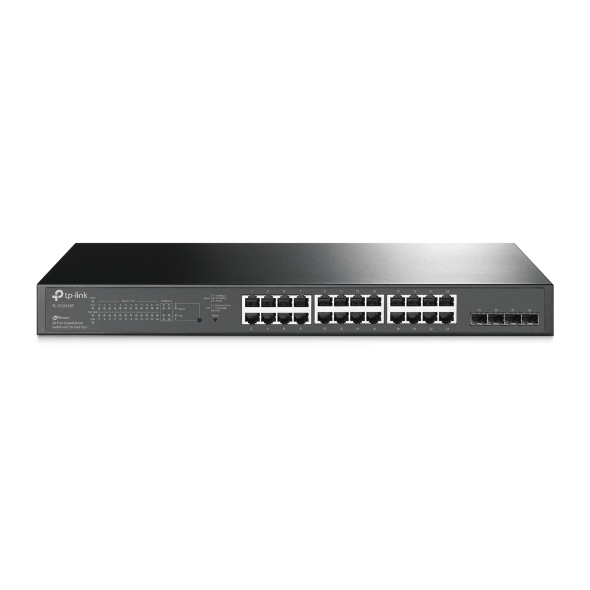

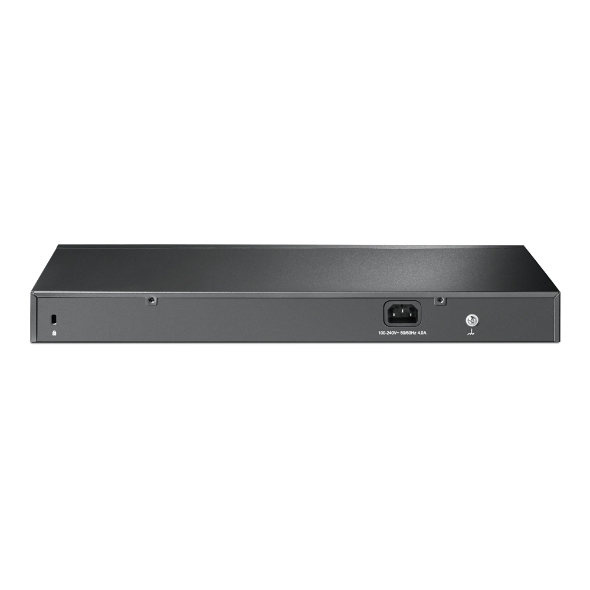

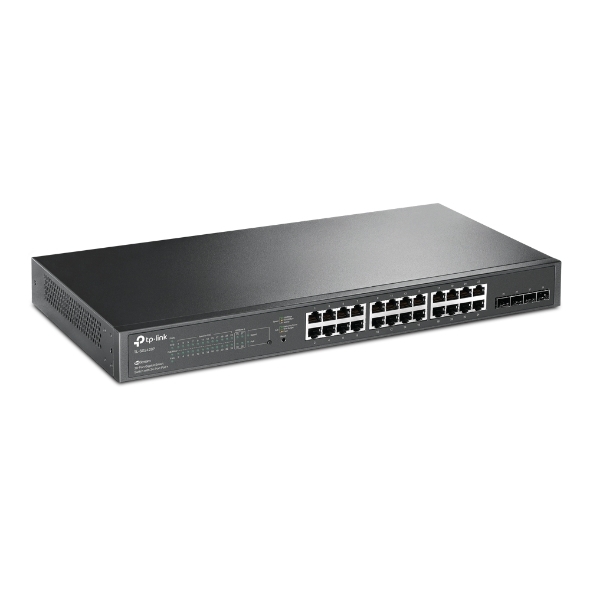

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ With Omada SDN Supported

250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.

Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

4× Gigabit SFP Slots

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity 2

PoE+ Ports(RJ45) Standard: 802.3at/af compliant

PoE+ Ports: 24 Ports

Power Supply: 250 W

Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 32.1 W (110 V/ 60 Hz with no PD connected)

308.6 W (110 V/ 60 Hz with 250 W PD connected)

Max Heat Dissipation 109.53 BTU/h (with no PD connected)

1052.94 BTU/h (with 250 W PD connected)

PERFORMANCE

Bandwidth/Backplane 56 Gbps

Packet Forwarding Rate 41.7 Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB
