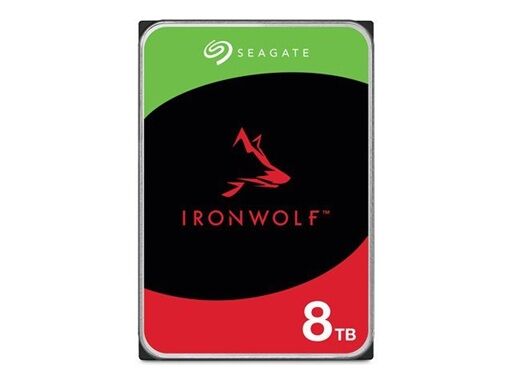

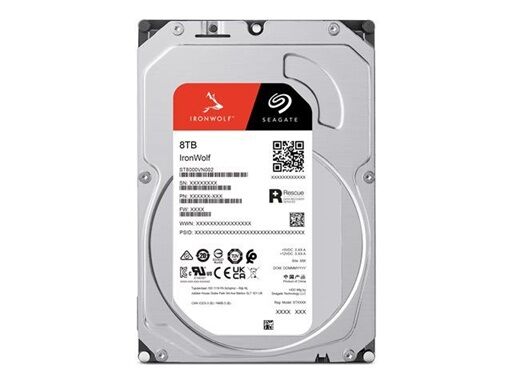

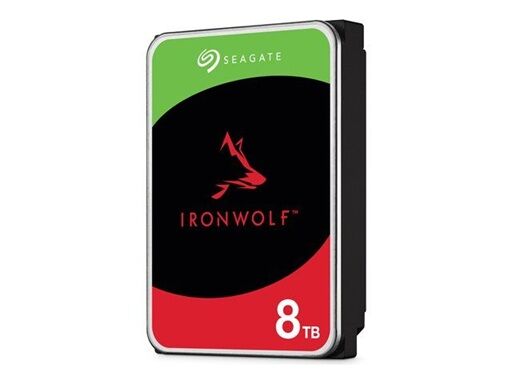

Seagate 8TB 3.5 ft IronWolf, SATA 6.0Gb s, CMR, max. STR OD 202MB s, 5400 RPM, 256MB Cache, HDD (ST8000VN002)

IronWolf„ is designed for consumer and commercial NAS. Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.

SPECIFICATION

Capacity 8TB

Standard Model Number ST8000VN002

Interface SATA 6Gb s

Features and Performance

Drive Bays Supported 1 “ 8 Bays

Recording Technology CMR

Drive Design (Air or Helium) Air

Workload Rate Limit (WRL) 180

Rotational Vibration (RV) Sensor Yes

Dual-Plane Balance Yes

Error Recovery Control Yes

Max. Sustained Transfer Rate OD (MB s) 202MB s

Spindle Speed (RPM) 5,400

Cache (MB) 256

Reliability

Load Unload Cycles 600,000

Non-recoverable Read Errors Rate, Max 1 per 10E14

Power-on Hours 8,760

Mean Time Between Failures (MTBF, hours) 1,000,000

Rescue Data Recovery Services (years)4 3

Warranty, Limited (years) 3

Power Management

Startup Current, Typical (12V, A) 1.8

Average Operating Power 5.3

Idle Power Average (W) 4 W

Standby Mode Sleep Mode, Typical (W) 0.25 0.25

Voltage Tolerance, Inc. Noise (5V 12V) ±5pct ±10pct

Environmental Temperature

Operating Temperature (ambient, min degreeC) 0

Operating Temperature (drive reported, max degreeC)5 65

Nonoperating Temperature (ambient, min max degreeC) -40 70

Environmental Shock

Shock, Operating Non-operating: 2 ms (max) 80 Gs 300 Gs

Environmental Acoustics

Acoustics, Idle (typical, measured in Idle 1 state) (dBA) 25

Acoustics, Seek (typical) (dBA) 26

Physical

Height (mm in) 26. 11 mm 1.028 in

Width (mm in, max) 26.11 mm 1.028 in

Depth (mm in, max) 146.99 mm 5.787 in

Weight (g lb, typical) 630 g 1.389 lb

Carton Unit Quantity 20

Cartons per Pallet Cartons per Layer 40 8
