Description

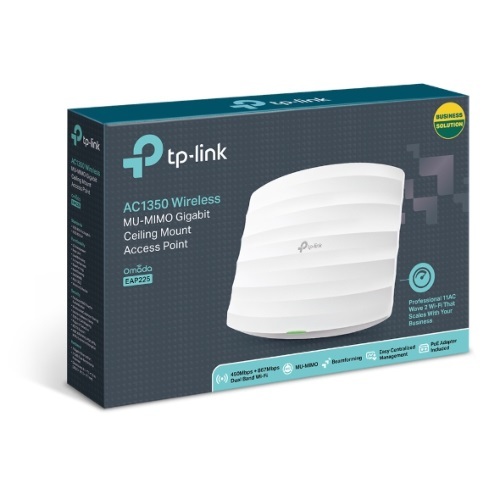

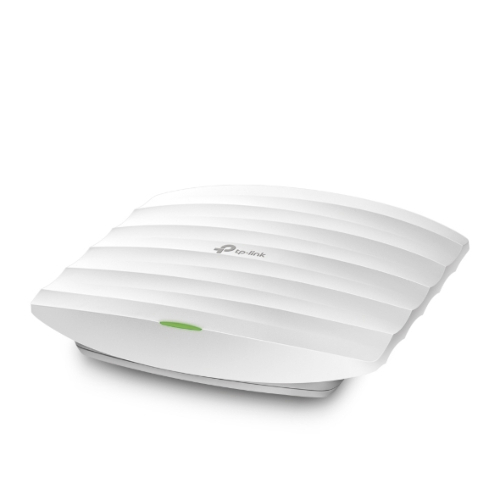

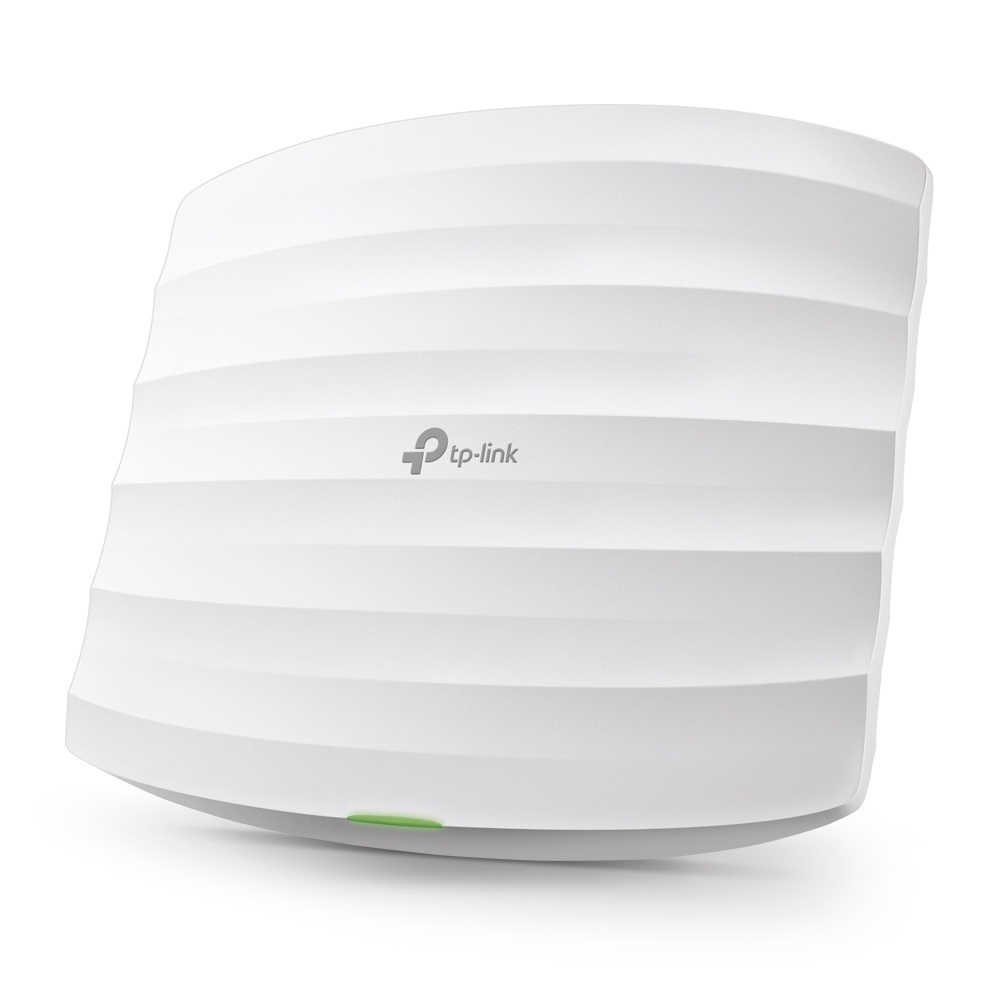

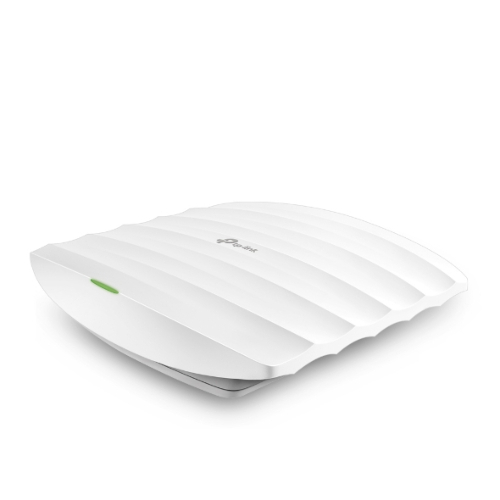

TP-Link EAP225 AC1200 Wireless Dual Band Gigabit Ceiling Wall Mount Access Point 1200Mbps PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID


Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds

Free EAP Controller Software lets administrators easily manage hundreds of EAPs

Support Power over Ethernet(802.3af) for convenient and affordable installation

Captive portal provides a convenient method for guest authentication

Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections


HARDWARE FEATURES

Interface Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)

Button Reset

Power Supply PoE or External 12VDC / 1.5A Power Supply

Power Consumption 10.15 W

Antenna Type Internal Omni

2.4GHz: 2* 4dBi

5GHz: 2*4dBi

Mounting Ceiling /Wall Mounting (Kits included)

Physical Security Lock Kensington Lock Slot

Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4GHz and 5GHz

Signal Rate 5GHz:Up to 867Mbps

2.4GHz:Up to 300Mbps

Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<27dBm(2.4GHz & 5GHz)

Specifications
SKU NWTL-EAP225
Barcode # 6935364096915
Brand TP-LINK
Shipping weight 1.4400kg
Shipping width 0.330m
Shipping height 0.164m
Shipping length 0.440m
Assembled length 3.400m
Assembled height 0.640m
Assembled width 2.300m

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point Seamless RoamingOmada Cloud Centralised Management POE Band Steering

$133.40
RRP $149.00 save 10%

or 4 payments of $33.35 with Learn more

In Stock

Product Information

SKU:

NWTL-EAP225

Brand:

TP-LINK

Barcode #:

6935364096915

Shipping Weigth:

1.4400kg

Warranty:

60
